| Dead Band: |
0.001ms (Default) |
| Control System: |
+Pulse Width Control |
| Working frequence: |
1520µs / 333hz (Data 850µs-2150µs) |
| (RX) Required Pulse: |
3.0 ~5.0 Volt Peak to Peak Square Wave |
| Operating Voltage: |
4.8 ~6.0 V DC Volts |
| Operating Temperature Range: |
-10 to + 60 Degree C |
| Operating Speed (4.8V): |
0.066 sec/60° degrees at no load |
| Operating Speed (6.0V): |
0.053 sec/60° degrees at no load |
| Stall Torque (4.8V): |
2.44 kg.cm (33.88 oz/in) |
| Stall Torque (6.0V): |
3.05 kg.cm (42.36 oz/in) |
| 360° Modifiable: |
YES |
| Motor Type: |
Coreless Motor |
| Potentiometer Drive: |
Direct Drive |
| Driver Type: |
FET |
| Bearing Type: |
Dual Ball Bearings |
| Gear Type: |
Chrome-Titanium alloy gear |
| Programmable: |
NO |
| Connector Wire Length: |
20.0 cm (7.86 in) |

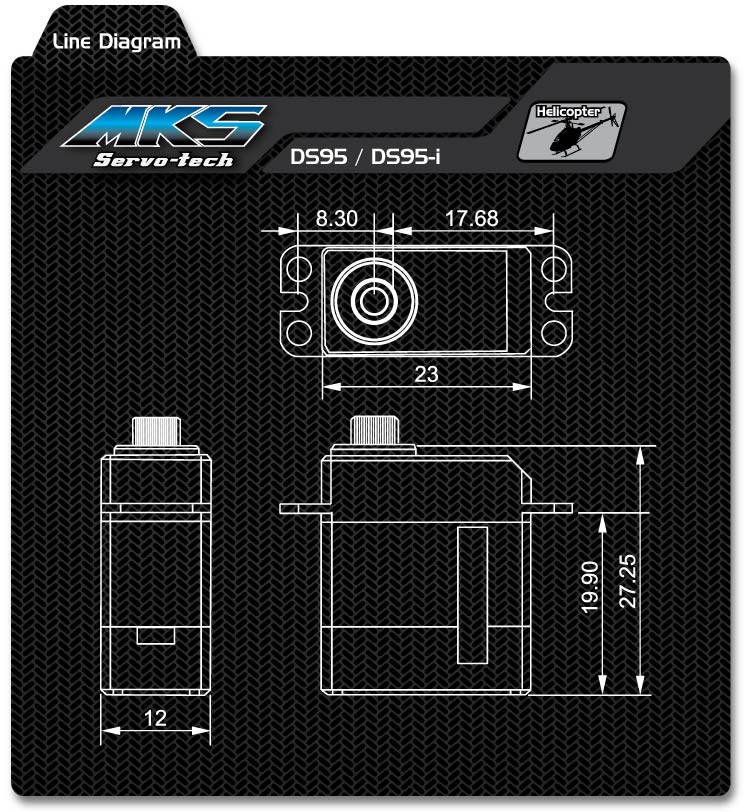

| Dimensions: |
23x12x27.25 mm (0.90x0.47x1.07 in) |
| Weight: |
21.21 g (0.74 oz) |
