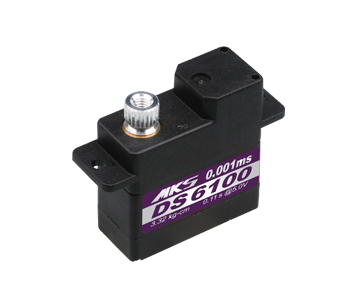

DS6100
Artikelnummer: MKS S0015005
-Please use 4S Nicd/NiMH battery or use UBEC ( 4.8V~5.5V)
| Dead Band: |
0.001ms (Default) |
| Control System: |
+Pulse Width Control |
| Working frequence: |
1520µs / 333hz |
| (RX) Required Pulse: |
3.0 ~5.0 Volt Peak to Peak Square Wave |
| Operating Voltage: |
4.8 ~5.0 V DC Volts |
| Operating Temperature Range: |
-10 to + 60 Degree C |
| Operating Speed (4.8V): |
0.12 sec/60° degrees at no load |
| Operating Speed (5.0V): |
0.11 sec/60° degrees at no load |
| Stall Torque (4.8V): |
3.19 kg.cm (44.3 oz/in) |
| Stall Torque (5.0V): |
3.32 kg.cm (46.1 oz/in) |
| 360° Modifiable: |
YES |
| Motor Type: |
Coreless Motor |
| Potentiometer Drive: |
Indirect Drive |
| Driver Type: |
FET |
| Bearing Type: |
2 Jewel Bearing + 1 Bronze Bushing |
| Gear Type: |
Metal |
| Programmable: |
YES |
| Connector Wire Length: |
15.0 cm (5.9 in) |

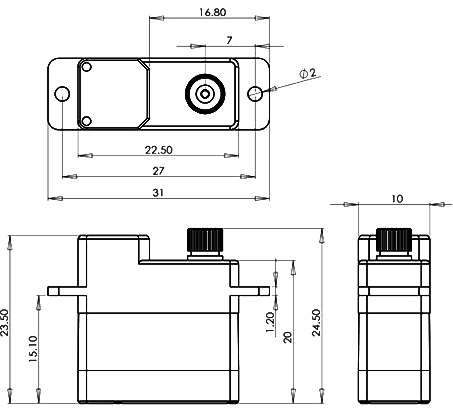

| Dimensions: |
22.5x10x23.5 mm (0.89x0.39x0.93 in) |
| Weight: |
9.5 g (0.335 oz) |
