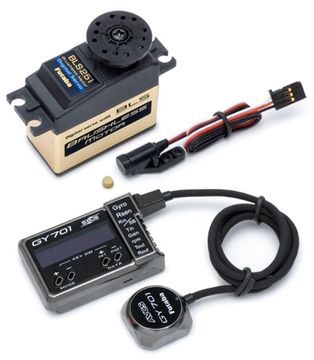

GY701 Gyro + Governor +BLS251

The Futaba GY701 combines a gyro and governor in one unit, representing a quantum leap forward in technology*. Processing rates are incredible, resulting in response rates that are even more amazing. Basic and Expert menus make it easy for novices and pros to enjoy latency-free performance and virtually instantaneous set-ups. The GY701's OLED (Organic Light Emitting Display) is easy to read indoors or out. When combined with the Governor, you have a system that's optimized for even the most extreme helicopter competitions.

BLS251
High performance digital brushless rudder servo for high performance helicopters. Compatible with: CGY750, GY701, GY520, GY611 & GY601.

• Size: 40 x 20 x 36.8 mm
• Weight: 61 g
• Power: 3.8 kg/cm @ 4.8V
• Speed: 0.06 s/60gr @ 4.8V

Gyro Features:

• Utilizes MEMS (Micro Electro Mechanical System) technology.
• Ultra high-speed processing.
• Advanced PID control algorithm.
• Smooth, consistent pirouette rate and yaw control.
• Patented, internal “Feed Forward” mixing through S.BUS means no latency and no tail offset (available in S.BUS mode only).
• 3D/F3C mode-selectable.
• Sensor features an aluminum alloy case and 3-color mode indicator LED.

Gyro/Governor Features:

• Small and lightweight — only 1.7 in. x 1.2 in, and weighs less than 1/2 ounce*.
• S.Bus capable with a single cable connection to the receiver.
• Free firmware and software, using the CIU-2 PC Interface (sold separately).
• Easy for anyone to program. Features both Basic and Expert menus.
• Organic Light Emitting Display (OLED) for easy viewing indoors or out.
• Works with analog or digital servos.

*controller weight only

Governor Features:

• RPM range of 1000-3000.
• Mode selectable for governor or rev limiter.
• Clutch-mounted sensor or optional back plate mount for O.S.® .91, .55 and .50 engines.

Gyro Specs:

Basic menus:

• Servo Type
• Direction
• Servo Limit
• Flight Mode

Expert menus:

• Rudder Neutral
• GY Gain
• Expo
• Delay
• Control Delay In
• Control Delay Out
• Stop Delay
• Working Mode
• Piro Speed
• Gain Change Up Delay
• Gain Change Down Delay
• Rudder Hysteresis
• Free/Forward Mixing (with S.Bus connection)
• Free/Forward Mixing Rate
• Free/Forward Mixing Acceleration Gain
• Pitch Zero Setting
• Pitch Low Setting
• Pitch High Setting
• Sensor Mode
• Neutral Compensation
• Yaw Smooth
• Stop Boosting
• Gyro Data Reset
• Operation range: +/- 1,200° per second
• Sensor dimensions: 21 x 21 x 8 mm
• Sensor weight: 9.4 g
• Controller dimensions: 44 x 30 x 12 mm
• Controller weight: 12.5 g

Governor Specs:

Basic Menus:

• RPM Setting
• Gear Ratio
• Servo Type
• Stick Switch (to activate Governor)
• On/Off Switch
• Battery Fail Safe Setting
• Yaw Rate Compensation
• Limit Setting
• Limit Point Testing
• Revolution Sensor Testing

Expert Menus:

• Working Mode
• Revolution Display Mode
• Response
• Governor Gain
• Throttle Data Mode
• Revolution Change Up Delay
• Revolution Change Down Delay
• Start Delay
• Low Limit at Hover
• Low Limit at Idle Up
• Governor Data Reset
