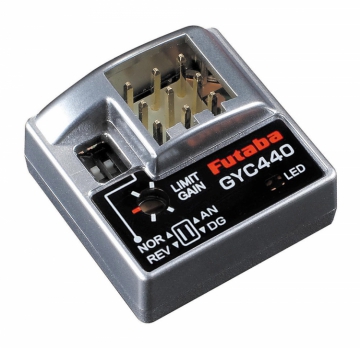

GYC-440 Bilgyro*

Compact and lightweight, the GYC440 is designed to RC cars steering control. If the transmitter has 3 or more channels (capable of 3CH adjustment) the gyro sensitivity can be adjusted from the transmitter. Features include simple set-up and S.BUS/S.BUS2 connectivity.

Dedicated RC car setting

• Vehicle straightness and cornering performance can be increased without taking into account the effect of the road surface, etc.

Remote gain function and mode switching function

• You can adjust gain from the transmitter (3 or more CH) by using the remote gain function. Gain can also be adjusted with the trimmer on the GYC440. The mode switching function allows AVCS/NORMAL gyro mode switching.

Integrated, compact,and light weight

• Compact size?20.5x20.5x11 mm?and light weight?3.7 g?realized by high density mounting technology.

Easy setup

• The GYC440 can be used immediately with minimum setup.

Supporting the S.BUS/S.BUS2 connection

• Only one wire connection to the receiver can operate the GYC440.

GYC440 Ratings:
(Integrated sensor type rate gyro)

• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC4.2V to 8.4V
• Current drain: 30 mA (excluding a servo)
• Operating temperature range: -10ºC to +45ºC
• Dimensions: 20.5 x 20.5 x 11 mm (except protrusion)
• Weight: 3.7 g
• Functions: Sensitivity trimmer. LED monitor. Servo selection (Digital/ Analog). S.BUS/S.BUS2 connection.
