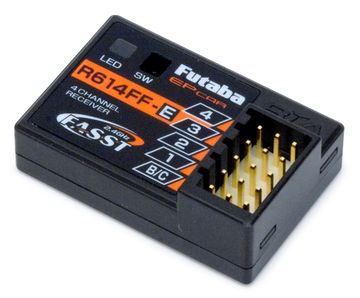

Mottagare R614FF-E 4K T4PK, 4PKS FASST-C2

The R614FF-E is designed for use with the Futaba FASST-C2 system transmitter. The FASST system has two (2) operation mode as shown below.

1. Normal mode/High Speed mode -  The "Normal mode" accepts any type of servos or the peripheral equipment.
2. The "High Speed mode" - Only accepts the digital servos, including BLS series, and most peripheral equipment such as the brushless ESCs. However, there is a transmitter that cannot correspond, to high speed mode.

Please pay special attention to the information contained within the receiver manual and transmitter's manual in order to have a pleasant R/C experience.

• Built-in antenna = The R614FF-E receiver is designed to be used only for EP Car models.

R614FF-E Specifications:

• Compatible with the FASST-C2 system transmitters (T4PK, T4PKS, T4PX & T4PXR)
• FASST C2 2.4GHz system - At Normal/High speed mode (auto detection)
• 4-channels
• Receiving Range: aprox 70 m (if maximum range is needed - use the normal R614FS receiver)
• Power requirement Rated voltage: 3.7V-7.4V
• Usable voltage: 3.5-8.4V
• F/S and Battery F/S function:It is set according to the transmitter used.
• Battery F/S voltage: Set it with the transmitter arbitrarily.
• Size: 35.1 x 23.2 x 9.0 mm
• Weight: 7.6 g
