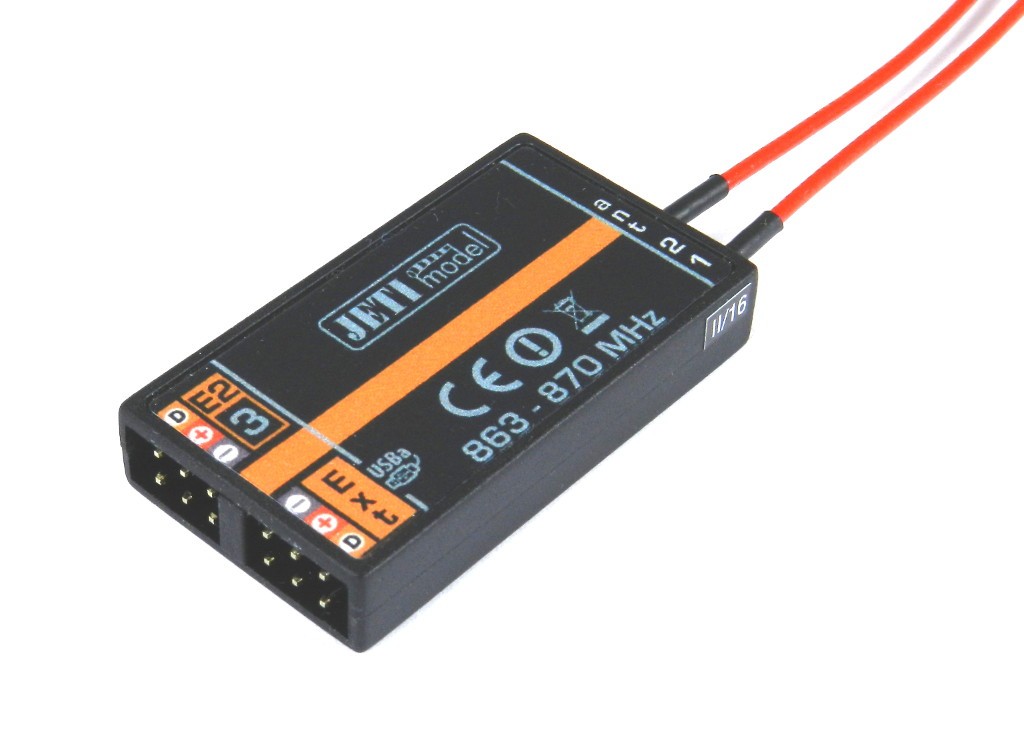

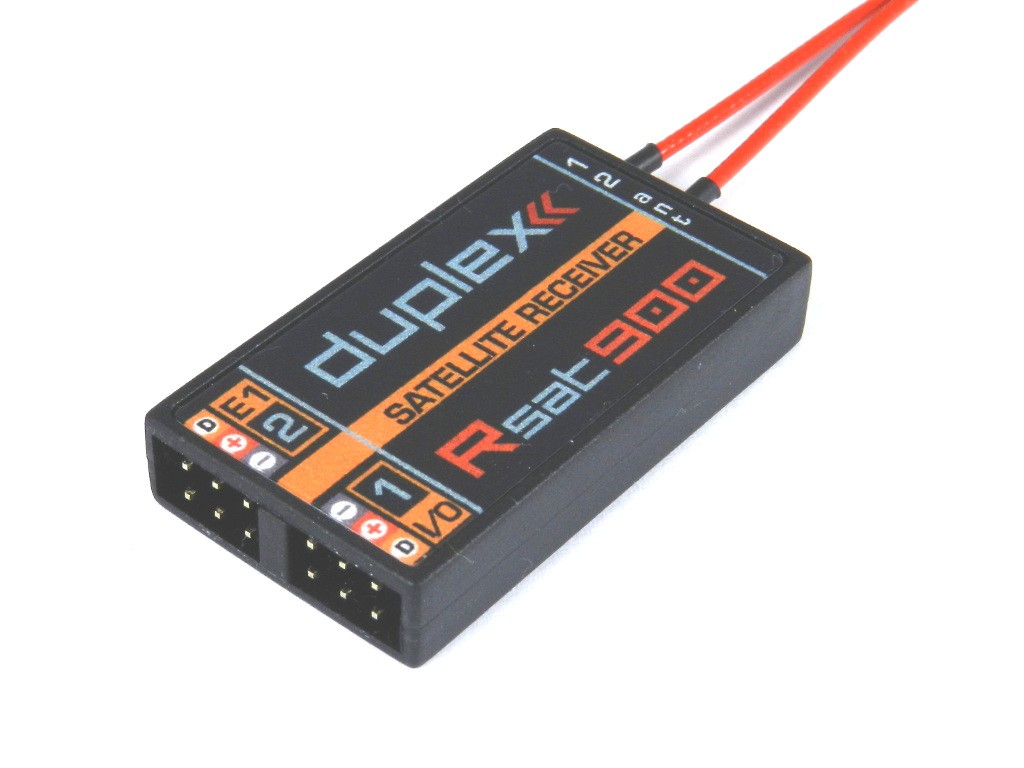

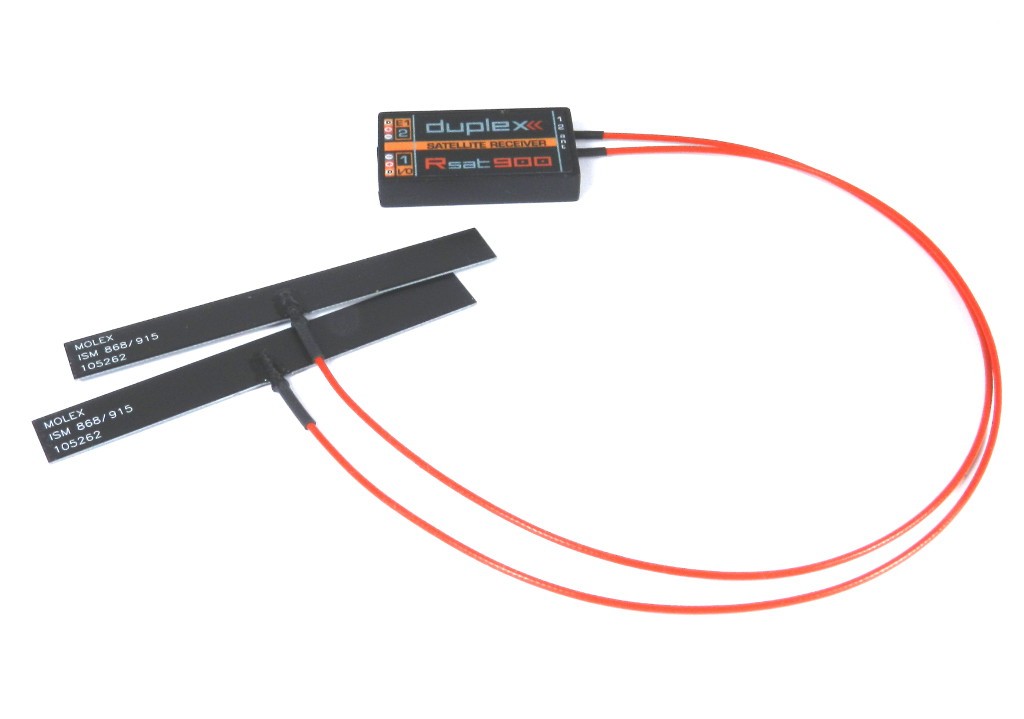

Jeti JDEX-RS-900 DUPLEX Rsat 900 MHz
908 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandJeti
Description
Article no.: JDEX-RS-900
Description
Backup receiver compatible with JETI EX 900 & EX Bus protocols. Supports telemetry functions.
Additional features:
- PPM input
- PPM output
- Integrated expander for EX & EX Bus devices
- UDI digital output
JETI RSAT 900 receivers are designated for use with the DC/DS-24 transmitters in the 900MHz frequency band.
Parameters
| Weight [g] | 11 |
|---|---|
| Dimensions [mm] | 40 x 22 x 7 |
| Number of channels | - |
| Telemetry | Yes |
| Operational temperature [°C] | -10 to 85 |
| Compatible protocols | DUPLEX 900 MHz EX, EX Bus |
| Antenna Length [mm] | 2x 260 |
| Supply Voltage [V] | 3.5 - 8.4 |
| Average Current [mA] | 75 |
| Satellite receiver support | Array |
| Output Power [dBm] | 14 |
| Frequency | EU: 863 - 870MHz US: 902 - 928 MHz AU: 918 - 926 MHz |
