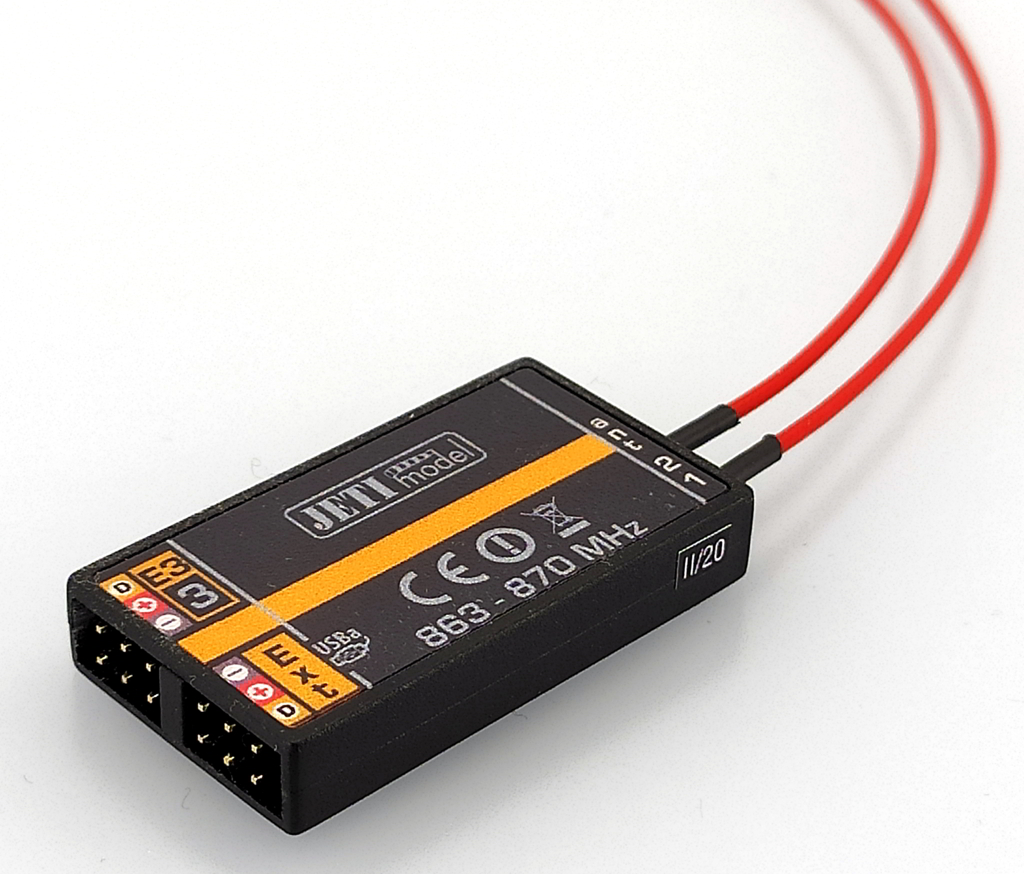

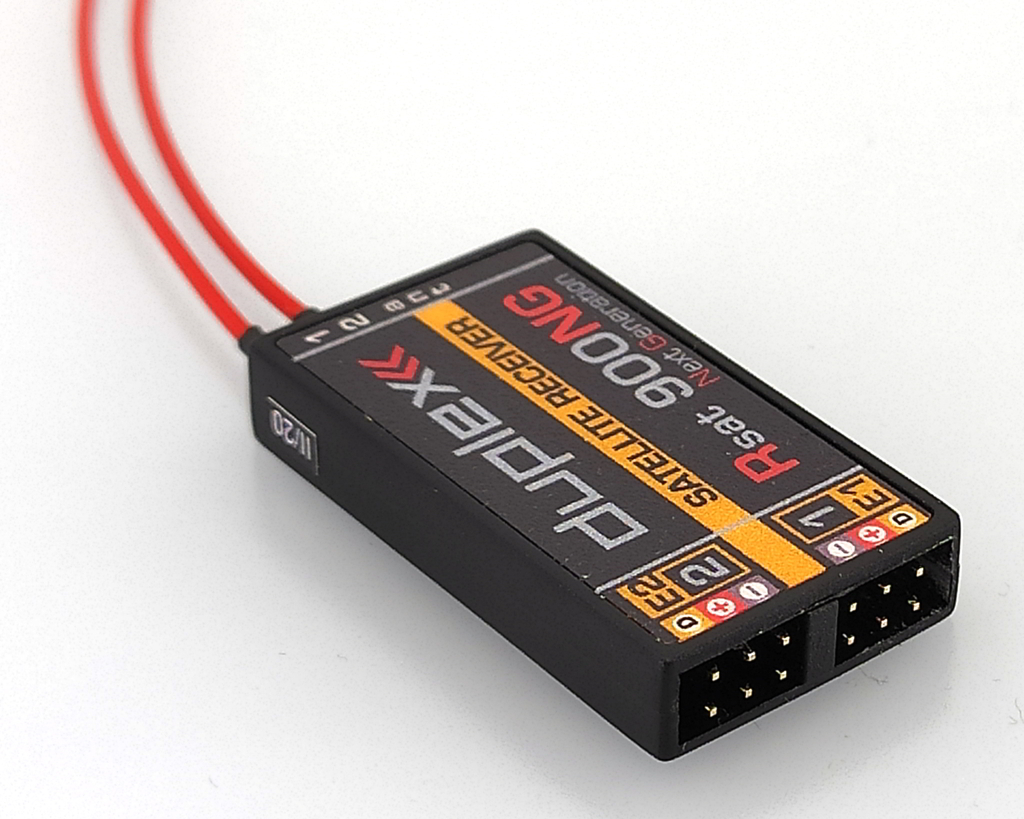

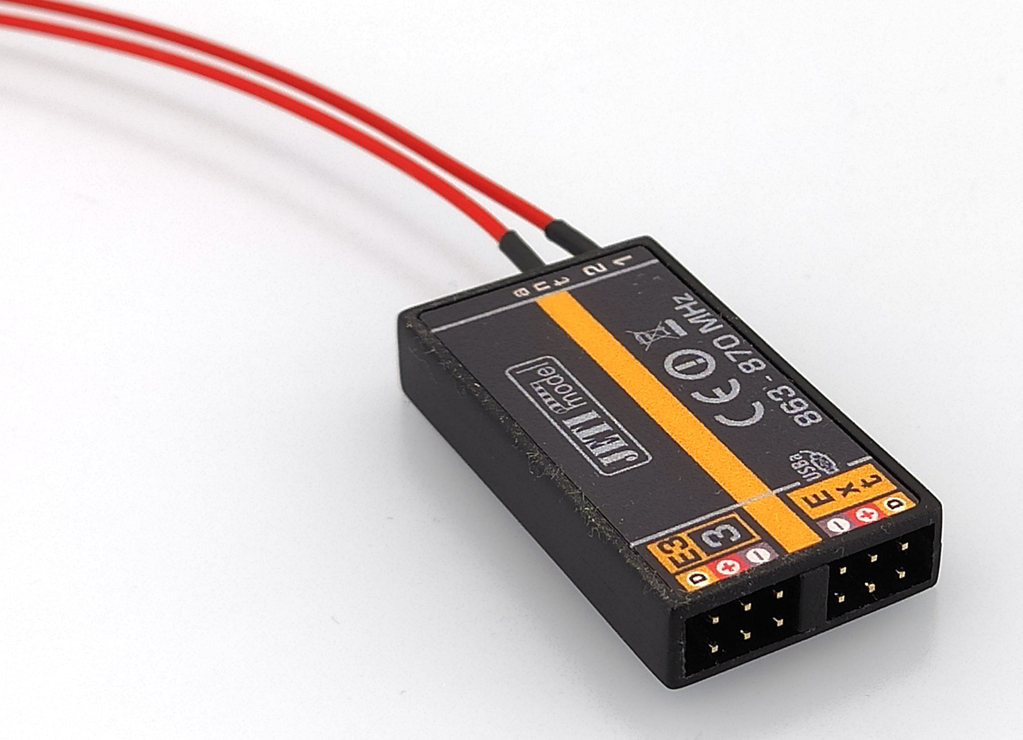

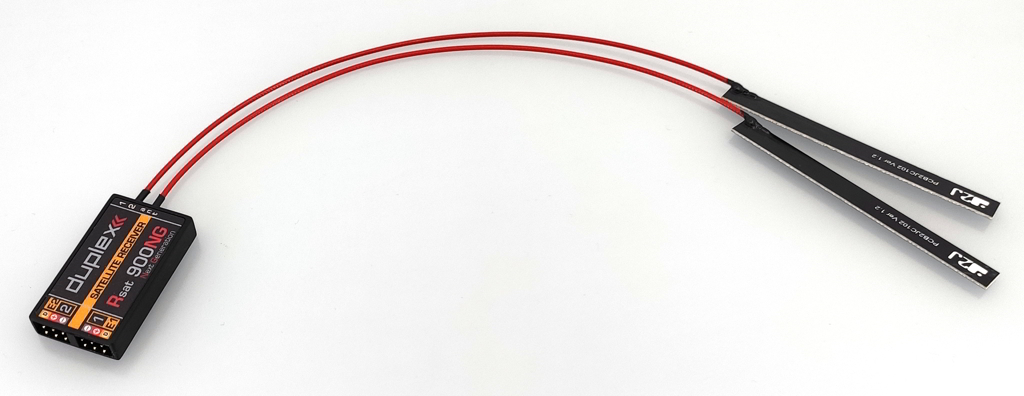

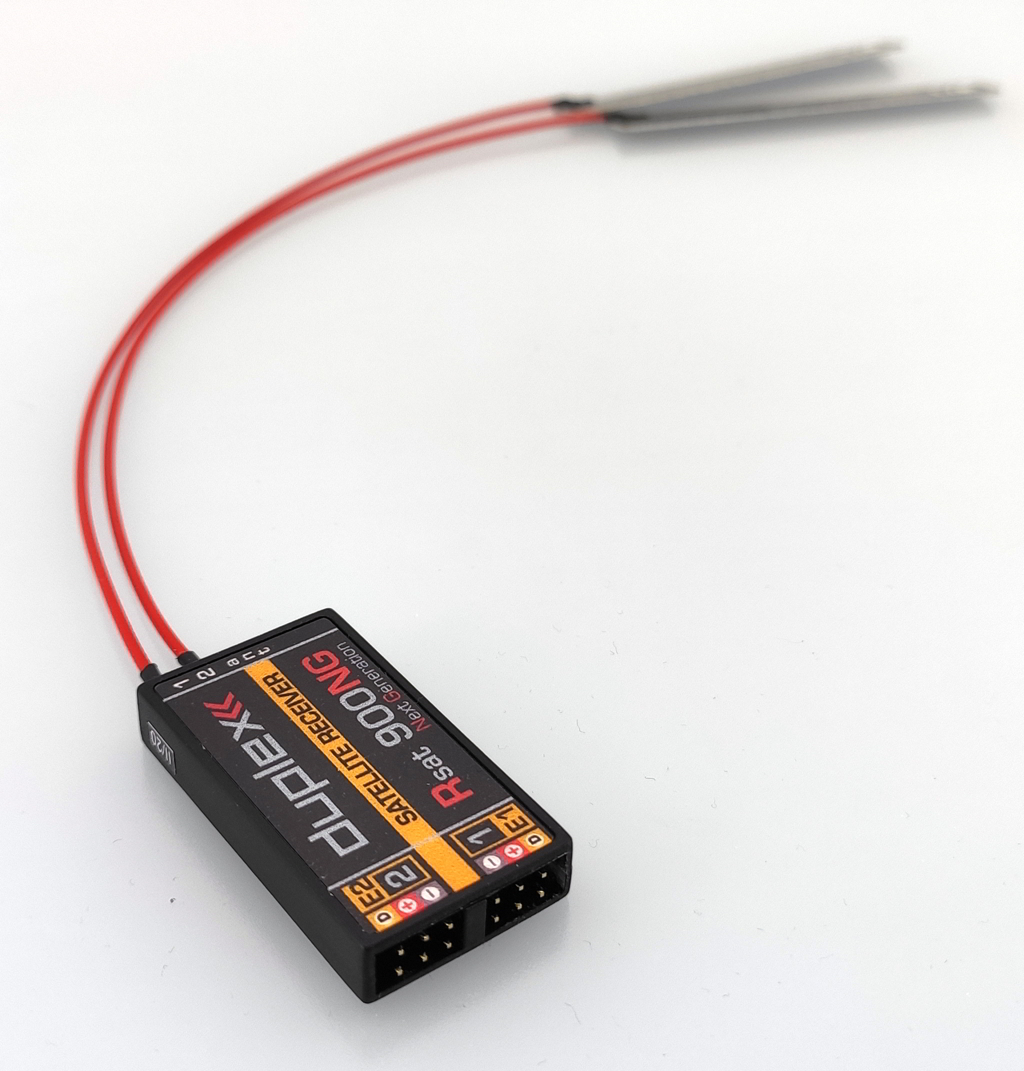

Jeti JDEX-RSNG-900 DUPLEX Rsat 900 NG
908 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandJeti
Description
Article no.: JDEX-RSNG-900
Description
The Duplex RSAT 900 NG (Next Generation) series receivers are designed for operation with JETI DC/DS transmitters fitted with a 900MHz NG module.
These 900MHz NG receivers have a better signal range and are less affected by interference. Duplex RSAT 900MHz NG receivers use the latest LoRa module technology. The 900MHz NG receivers are intended as a backup system if the 2.4GHz main system fails due to external interference. This significantly increases the safety of your RC model. Receivers RSAT 900 and RSAT 900 NG are not compatible!
Parameters
| Weight [g] | 11 |
|---|---|
| Dimensions [mm] | 40 x 22 x 7 |
| Number of channels | - |
| Telemetry | Yes |
| Operational temperature [°C] | -10 to 85 |
| Compatible protocols | DUPLEX 900 MHz EX, EX Bus |
| Antenna Length [mm] | 2x 260 |
| Supply Voltage [V] | 3.5 - 8.4 |
| Average Current [mA] | 75 |
| Satellite receiver support | Array |
| Output Power [dBm] | 14 |
| Assist stabilization | Array |
| Frequency | EU: 863 - 870MHz US: 902 - 928 MHz AU: 918 - 926 MHz |
