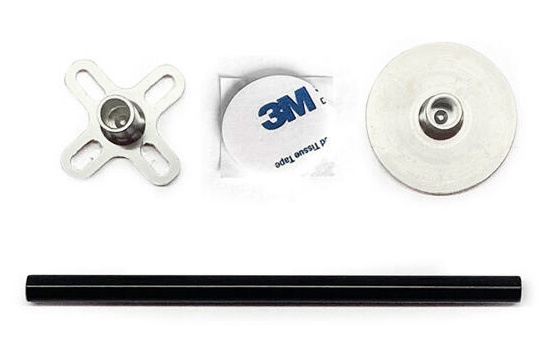

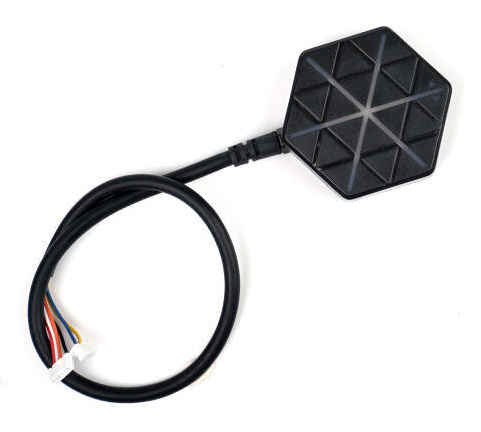

RADIOLINK RLSE100 SE100 GPS Incl. GPX Holder
618 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandRadiolink
Description
Article no.: RLSE100
Product Info:
RadioLink SE100 M10N GP
Dual Anti-interference Technology
Excellent Performance
Excellent Performance
Top Configuration
SE100 M10N GPS Specs:
RadioLink SE100 M10N GP
- Dual Anti-interference Technology
- Worry-free of UAV High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference
- 50 centimeters Positioning Accuracy
- Positioning 20 Satellites in 6 Seconds at Open Ground
- Super Station-keeping Capability Even at Valley Bottom
- Two-stage SAWF (Surface acoustic wave filter) from Murata
- Triple-frequency Quad satellite system
- 2.5dbI High Gain and Selectivity Ceramic Chip Antennas
Dual Anti-interference Technology
- De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.
- Anti-interference: In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter.
- Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.
Excellent Performance
- 50 centimeters of positioning accuracy. Positioning 20 satellites in 6 seconds at open ground.
- Super positioning capability even at the valley bottom.
- Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz
- BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.
Excellent Performance
- 50 centimeters of positioning accuracy. Positioning 20 satellites in 6 seconds at open ground.
- Super positioning capability even at the valley bottom.
- Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz
- BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.
- Protocol: Default NMEA
- But, when connecting the SE100 to the flight controller, it will recognize the type of flight controller and automatically turn the protocol to the same protocol as the flight controller when connecting the SE100 to the flight controller, when the SE100 disconnects with the flight controller, and the protocol will turn back to the default NMEA.
- Baud rate: 38.4K
- Voltage: 5±5% VDC
- Current: 50-100mA
Top Configuration
- GPS decoder chip: Radiolink SE100, with Ublox M10050, is much better than a single GNSS 7N.
- Built-in high-precision electronic compass IST8310 (I2C port).
- Antenna: 2.5dbI high gain and selectivity ceramic chip antennas
- Power amplify IC: High-gain MMIC chip
- Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata
SE100 M10N GPS Specs:
- Positional Accuracy: Up to 50 centimeters with quad-mode / 250 centimeters with Single Mode
- Protocol: Default NMEA. But, when connecting the SE100 to the flight controller, it will recognize the type of flight controller and turn the protocol to the same protocol as the flight controller automatically when connecting the SE100 to the flight controller, when the SE100 disconnects with the flight controller, and the protocol will turn back to the default NMEA.
- Velocity Precision: 0.1m/s
- Max Height: 50000m
- Max Speed: 515m/s
- Max Acceleration: 4G
- Max Update Rate: 20Hz
- Tracking & Nav.：-167dBm
- Acquisition：-163dBm
- Cold start：-151dBm
- Hot start：-159dBm
- Cold start: 26s
- Hot start: 1s
- Voltage: 5±5%VDC
- Current: 50-100mA
- GPS: UART port with baud rate 38.4K
- Geomagnetic: I2C port
