Savöx SB-2265MG Servo 13Kg 0,08s HV Brushless Metalldrev Lågt
958 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandSavöx
- Servo TypeHigh Voltage Brushless
- Operating Voltage:6-8.4V
- Operating Speed (7,4V):0.08 sec/60 deg
- Stall Torque (7,4V):12.0kg
- Dimensions:40.8 x 20.2 x 25.4 mm
- Weight:57g
- BrandSavöx
Description
Article no.: SAV-SB2265MG

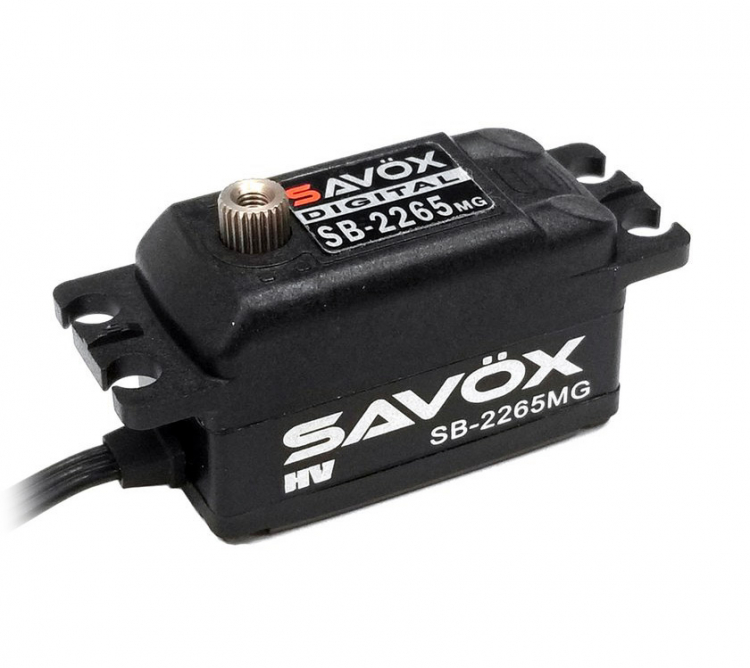

SAVÖX SB2265MG - Black Edition Low Profile High Voltage Brushless Digital Servo
- Metal gear train ensures durability under harsh situations
- Ideal for 1/10 on road cars requiring a high speed servo
- Servo Type / Size: Low Profile
- Application: 1/10 Cars
- Motor Type: Brushless
- Gear Material: Steel
Specifications:
- Input Voltage: 6-8.4V
- Torque @ 7.4v - 12.0kg
- Speed @ 7.4v - 0.08 sec/60 deg

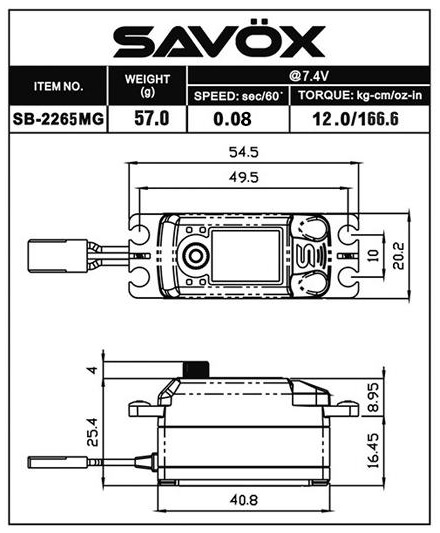

- Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
- Weight: 57g
- Operating Temperature: -10° - 50°C
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
