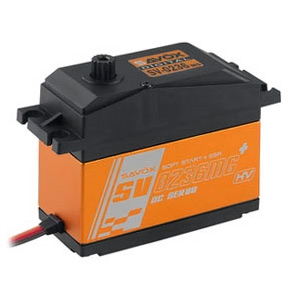

Savöx SAV-SV0236MGPLUS SV-0236MG Plus Servo 40Kg 0,17s HV Alu Metal Gear Giant
878 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandSavöx
- Operating Voltage:7,4 V
- Operating Speed (6.0V):0,21 sek/60°
- Operating Speed (7,4V):0,17 sek/60°
- Stall Torque (6.0V):30 kg/cm
- Stall Torque (7,4V):40 kg/cm
- Dimensions:65.8 x 30.0 x 57.4mm (L x W x H:)
- Weight:200 g
- BrandSavöx
Description
Article no.: MC_SAV-SV0236MGPLUS
SAVÖX SV-0236MGPLUS - High Voltage 1/5 Scale Servo
The SV-0236MG Plus is a large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.Features:
- New: Soft Start
- Ideal for 1/5 scale off road and large scale aircraft applications
- Strong metal gear train for added durability
- Extremely high torque output
- Capable of operating on high voltage
Specifications:
- Torque @6v: 30.0kg
- Torque @7.4v: 40.0kg
- Speed @6v: 0.21 sec/60 deg
- Speed @7.4v: 0.17 sec/60 deg
- Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
- Weight: 200g
Tech Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 150mA @6.0V, 180mA @7.4V
- Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 15 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Brushed
