RC Sweden AB - YS 91SRS

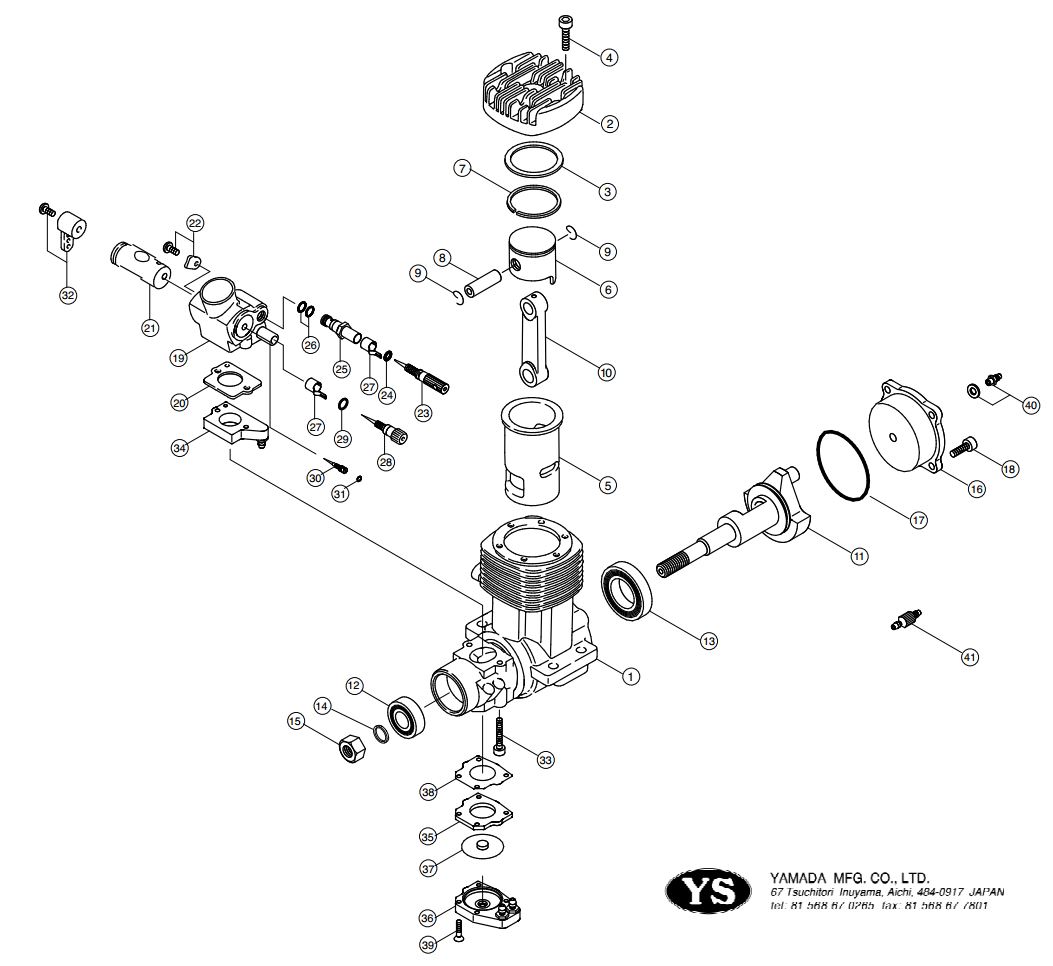

Reservdelslista YS 91SRS

(Klicka på "Artnr" nedan för att komma till produkten)

#	Artnr	Beskrivning	Antal i förpackning
1	YS_S9301	Crankcase	1
2	YS_S9302	Cylinder head	1
3	YS_S9103	Head gasket	1
4	YS_S5104	Head screws	6
	YS_S9305S	Piston & liner
5	YS_S9305	Cylinder liner	1
6	YS_S9306	Piston side exhaust	1
7	YS_S9107	Piston ring	1
8	YS_S7108	Wrist pin	1
9	YS_R6108	Wrist pin retainer	2
10	YS_S5110	Connecting rod	1
11	YS_S9311	Crank shaft	1
12	YS_R6211	Front bearing	1
13	YS_S9113	Rear bearing	1
14	YS_R6115	Drive washer spacer	1
15	YS_R6217	Prop nut	1
16	YS_S9116	Back plate	1
17	YS_S9117	Back plate gasket	1
18	YS_R6120	Back plate screws	4
	YS_S9119S	Carburetor assembly
19	YS_S9119	Carburetor body	1
20	YS_S5120	Carburetor gasket	1
21	YS_S9121	Throttle barrel	1
22	YS_R6124	Throttle barrel retainer	1
	YS_S4125S	Needle valve assembly
23	YS_S4125	Hover needle valve	1
24	YS_F1546	Needle valve O ring	1
25	YS_F1555	Needle valve seat	1
26	YS_F1556	Needle valve seat O-ring set	2
27	YS_S5128	Needle valve detent spring	2
	YS_S9122	High speed needle seat	1
28	YS_S8130	High speed needle valve	1
29	YS_R6203	High speed needle valve O-ring	1
30	YS_S5131	Low speed needle valve	1
31	YS_S8133	Low speed needle valve O ring	1
32	YS_F1260S	Throttle arm set	1
33	YS_S7132	Caburetor screws	2
34	YS_S5135	Carburetor subplate	1
35	YS_S7134	Regulator subplate	1
36	YS_S8138A	Regulator assembly
37	YS_S7136	Diaphragm	1
38	YS_S7140	Regulator gasket	1
39	YS_S7139	Regulator screws	4
40	YS_S7143	Nipple	1
41	YS_S7144	Check valve	1
	YS_F1265	Shaft key	1
	YS_S9143	Gasket set	2
	YS_S9146	O-ring set	6
