BilarModellerKyosho 34321B Lazer SB DirtCross 4WD 1:10 EP Kit

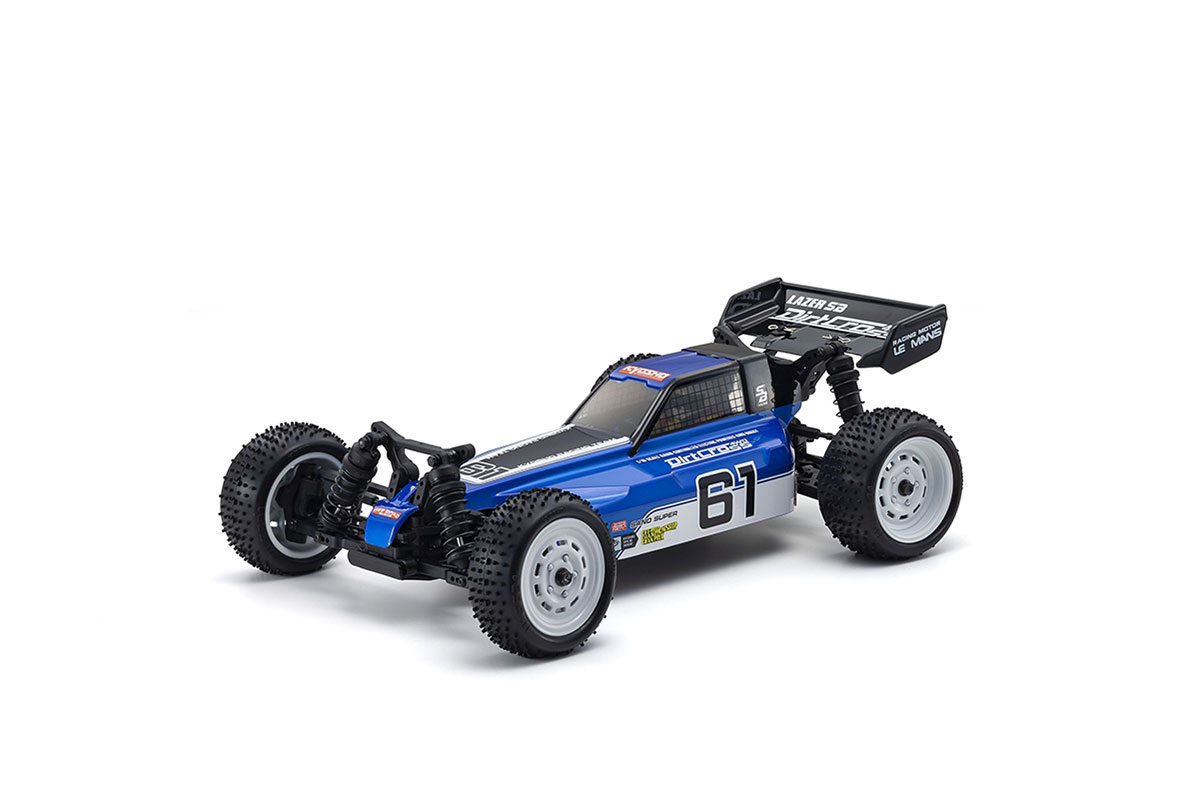

Kyosho 34321B Lazer SB DirtCross 4WD 1:10 EP Kit
Kyosho 34321B Lazer SB DirtCross 4WD 1:10 EP Kit
Kyosho 34321B Lazer SB DirtCross 4WD 1:10 EP Kit - 2
Kyosho 34321B Lazer SB DirtCross 4WD 1:10 EP Kit - 3

Kyosho 34321B Lazer SB DirtCross 4WD 1:10 EP Kit

3 190 SEK/styck
Läs mer...

I lager: 1

  • Betala säkert med kort
  • Maila oss, vi svarar snabbt!
  • Snabba leveranser
  • Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303

* Vi kan vara upptagna, ring igen om vi inte svarar!

  • FabrikatKyosho
  • Biltyp:Buggy Vintage
  • Driftsätt:El
  • Drivning:4WD
  • Levereras som:Byggsats
  • Lämplig för:Erfaren Nybörjare
  • Skala:1/10
  • Längd:395mm
  • Bredd:245mm
  • Höjd:125mm
  • Hjulbas268.5mm
  • Fartreglage:Ingår Ej
  • Sändare:Ingår Ej
  • Motor:Ingår Ej
  • Batteri:Ingår Ej
  • Laddare:Ingår Ej
  • VarumärkeKyosho

Beskrivning

Art.nr: K.34321B

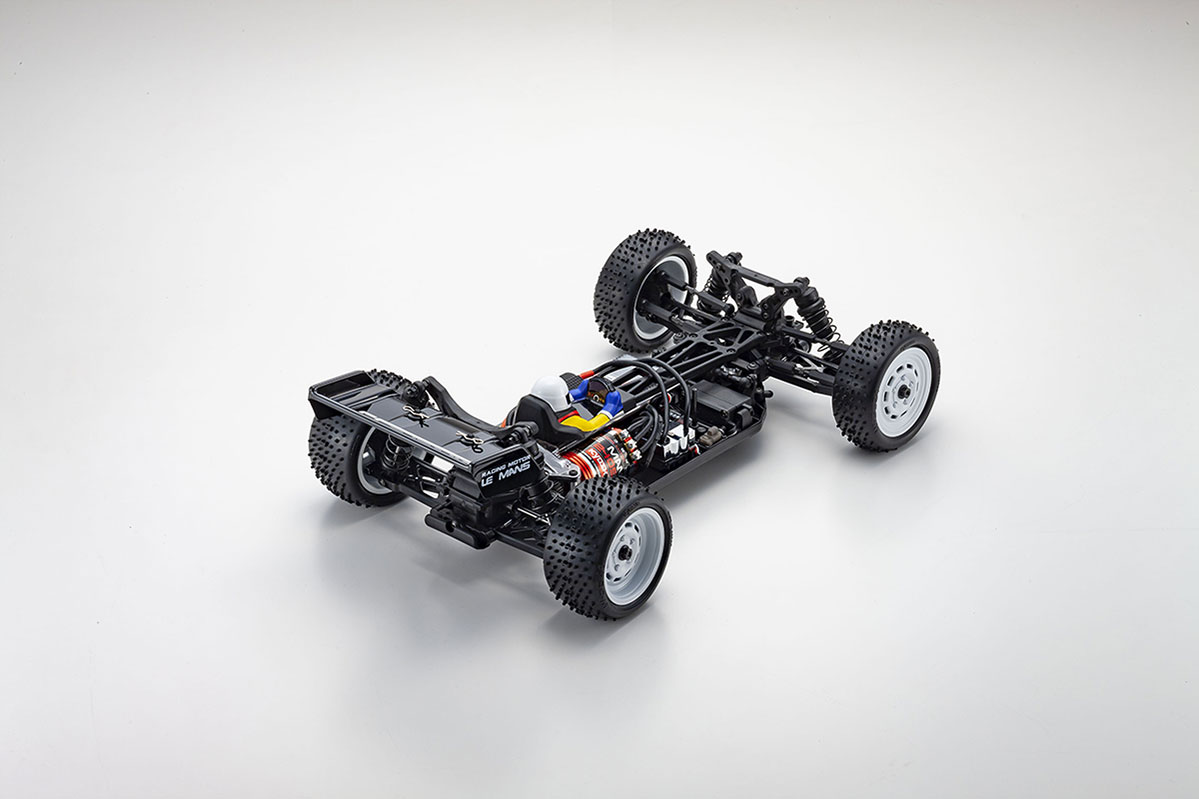

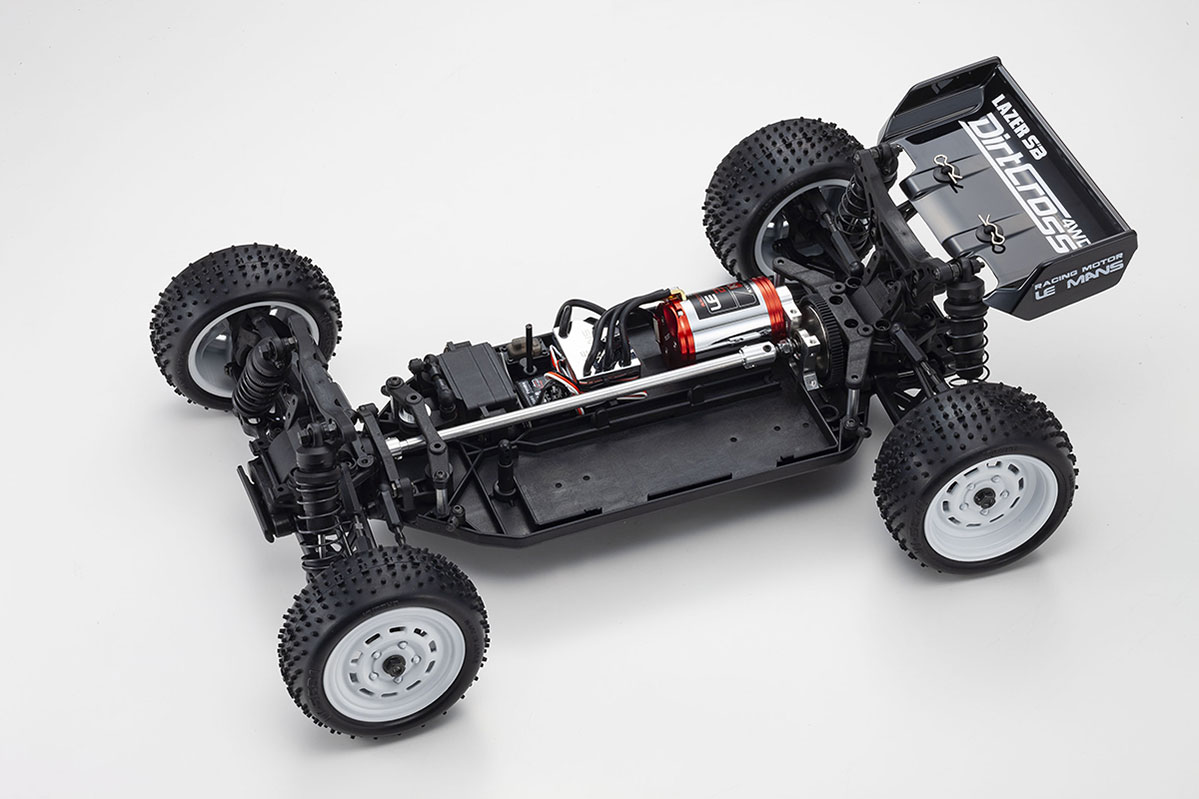

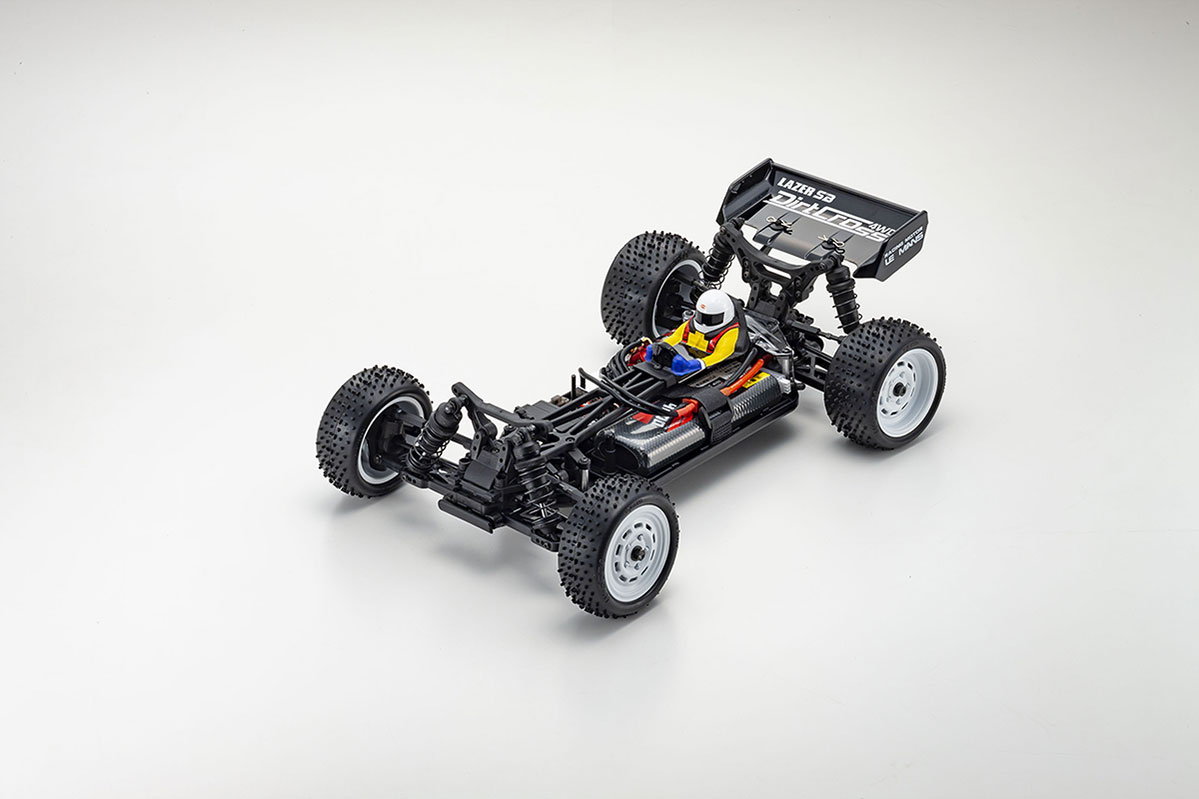

The simple chassis of the Dirt Cross delivers its high performance on all fields of action, from flat dirt to off-road racing circuits. The shaft drive 4WD at its core is based on the Lazer ZX-5, which competes at the highest levels around the world including the world championships.

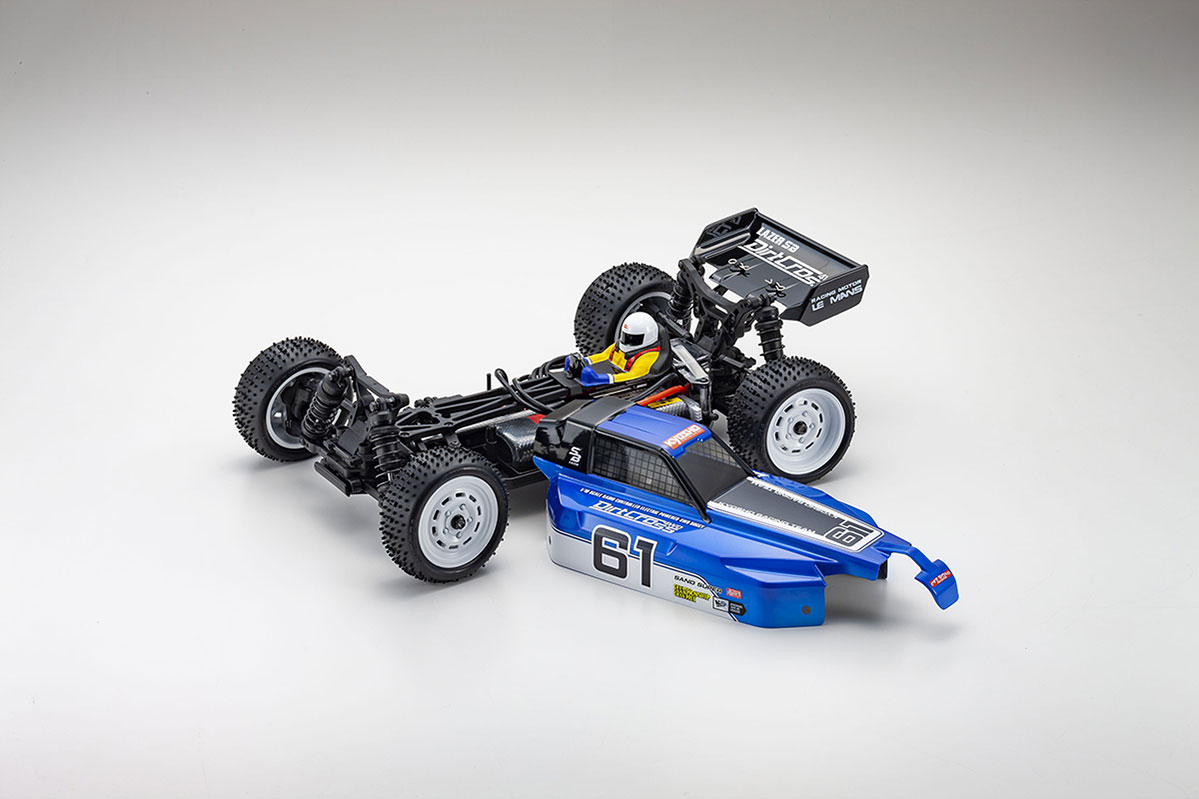

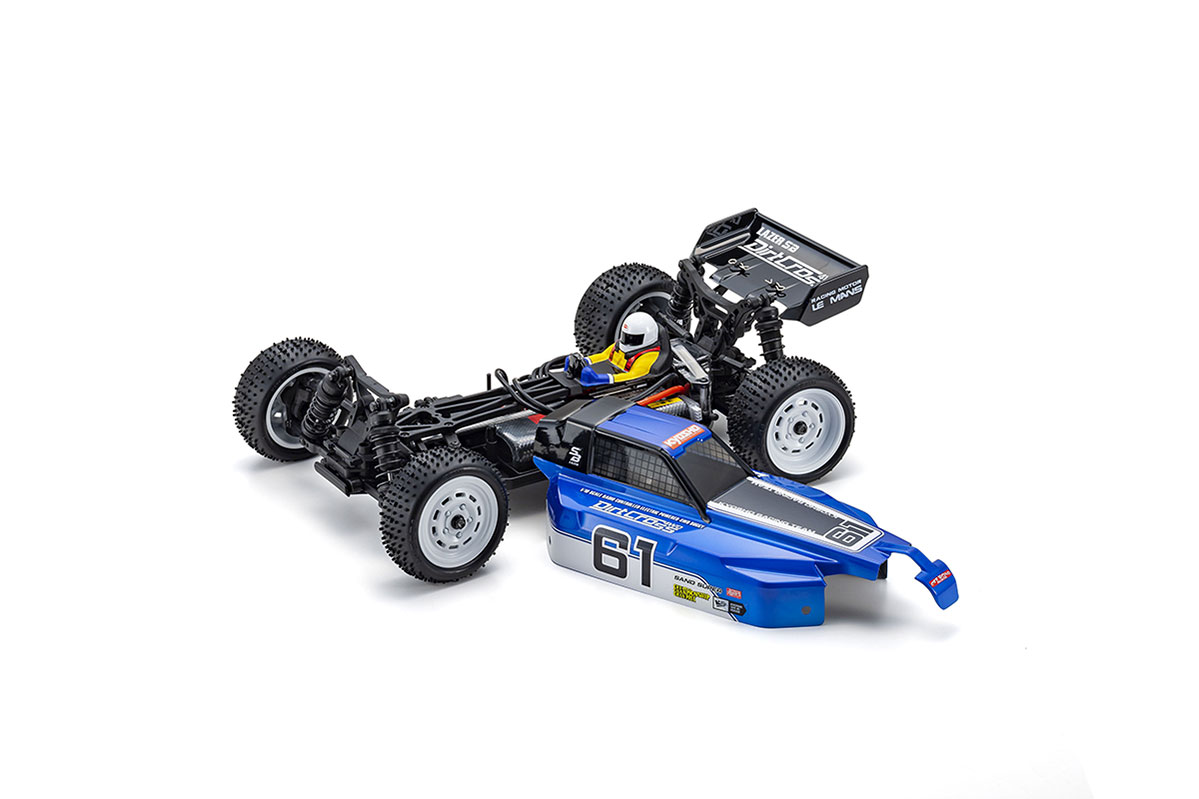

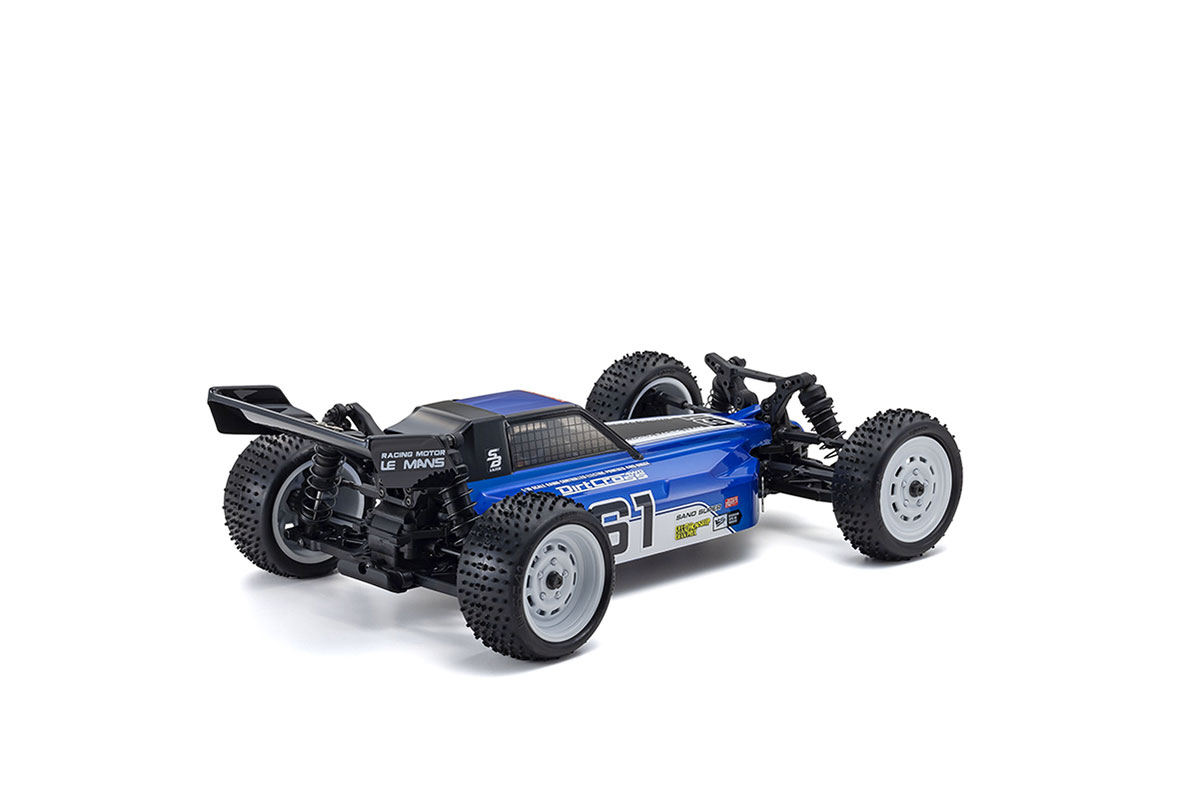

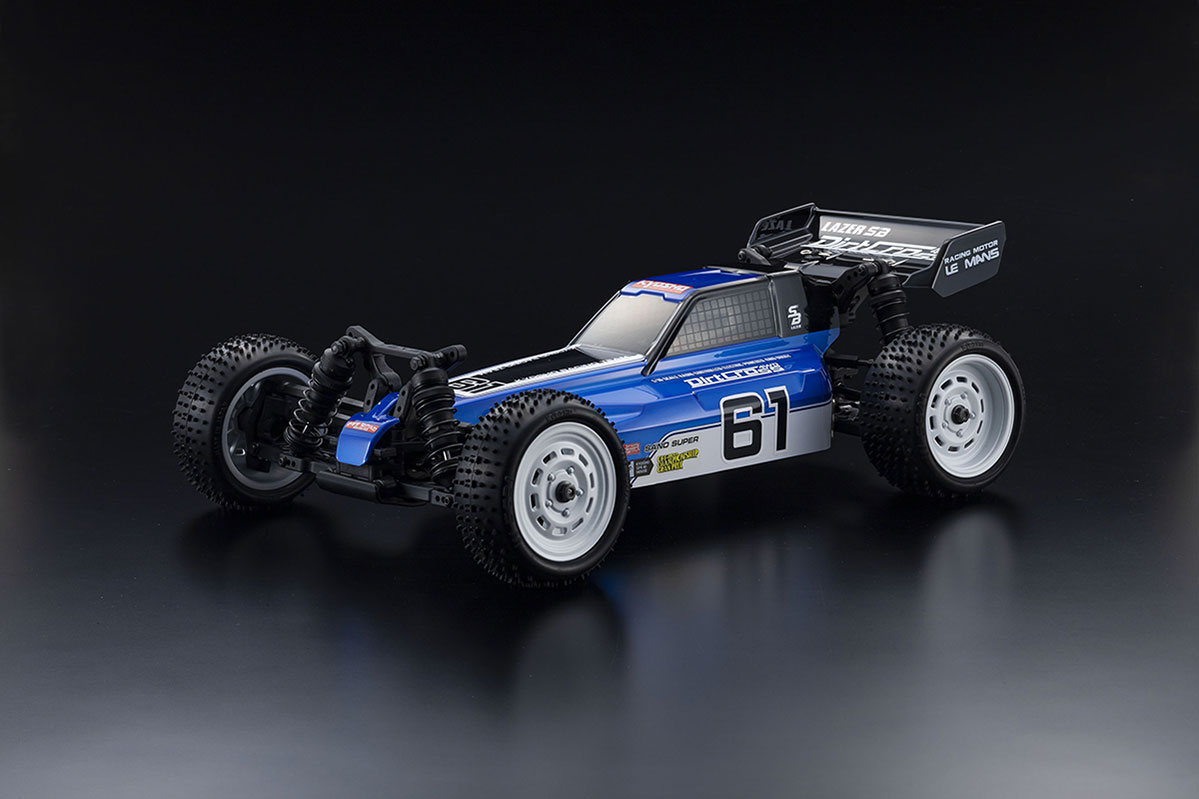

The newly designed body positions the cabin near the rear in traditional racing buggy style to create fresh impressions with new drivers and a sense of nostalgia for those with more years behind the controls.

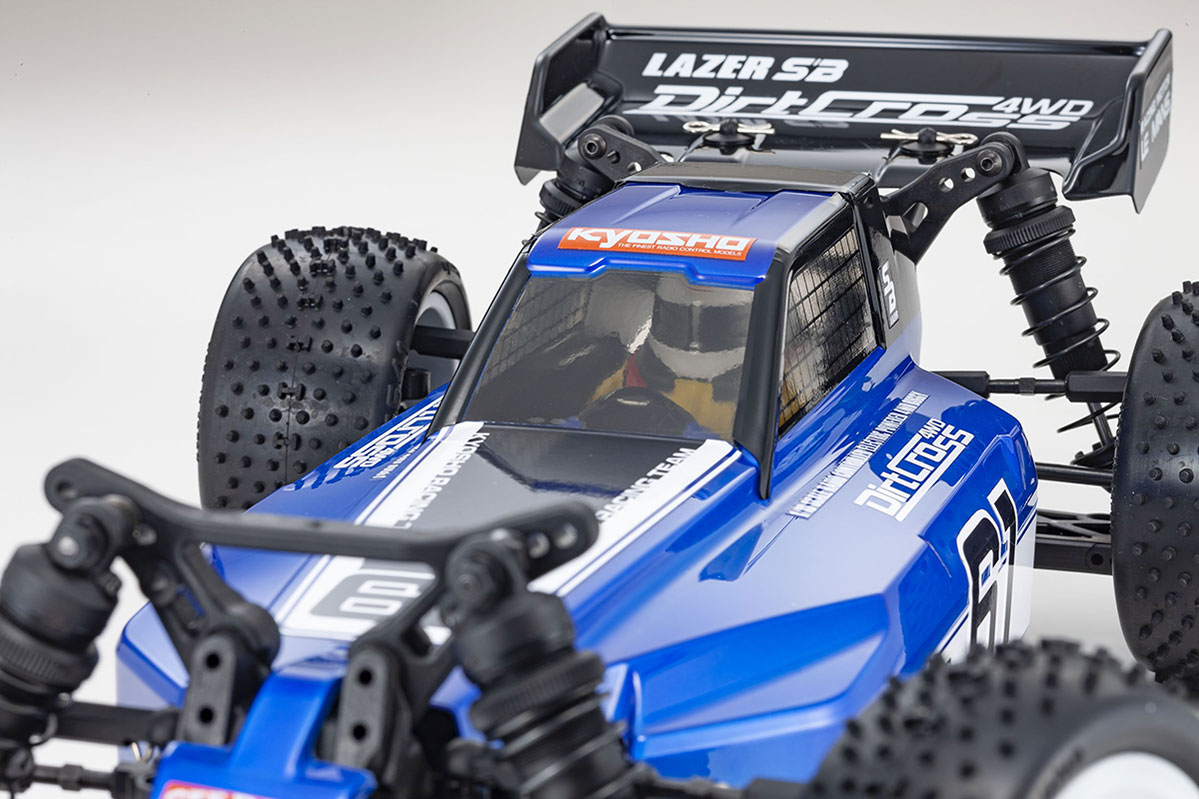

The driver figure used to be standard in Kyosho R/C buggies in earlier times and has been revived in this model to increase the sense of realism. The driver figure can also be attached to the 2WD Dirt Master.Polycarbonate gear cover protects the spur and pinion gear when driving on surfaces with gravel and stones. The gear cover can be easily attached and detached with screws.

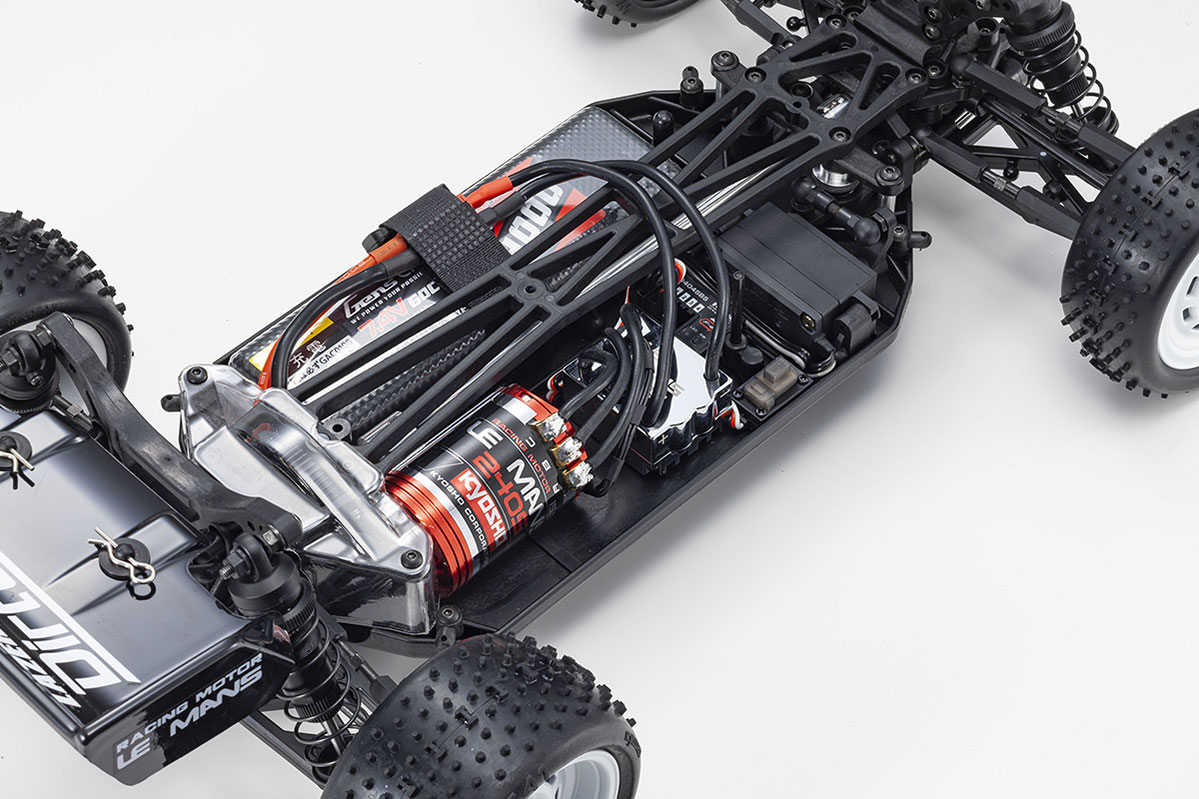

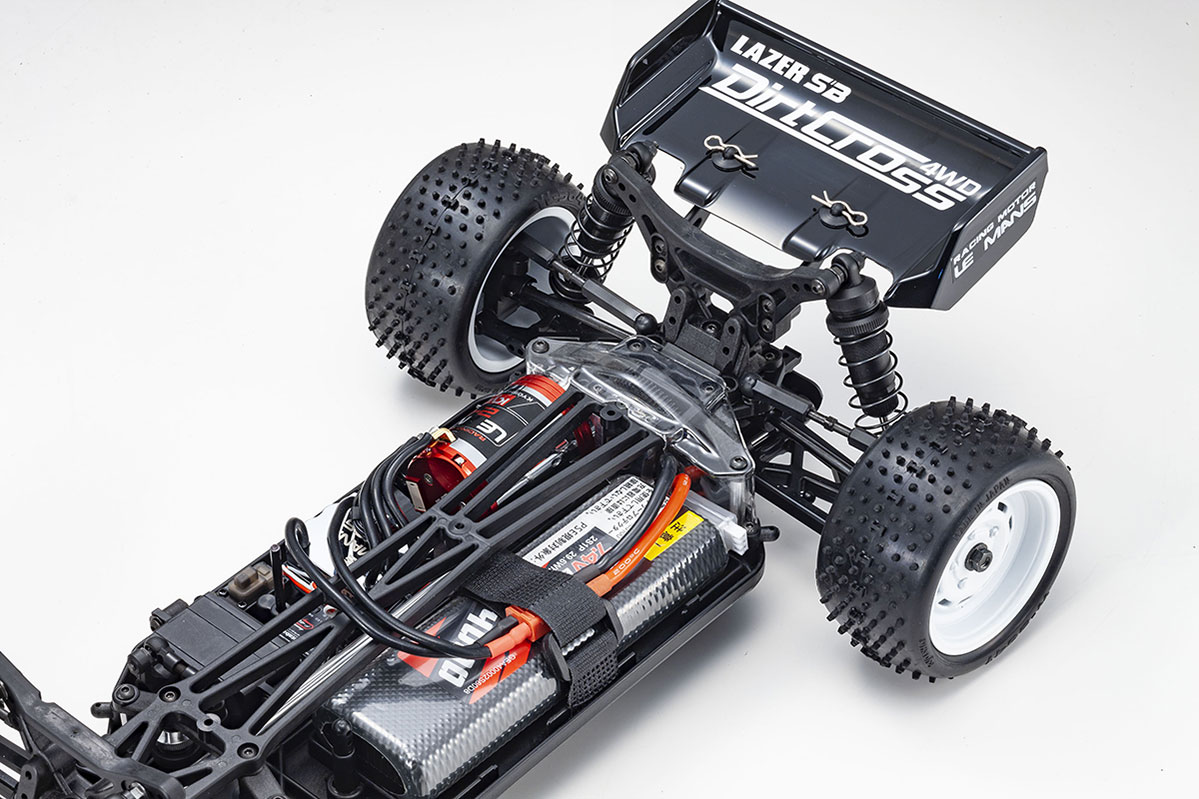

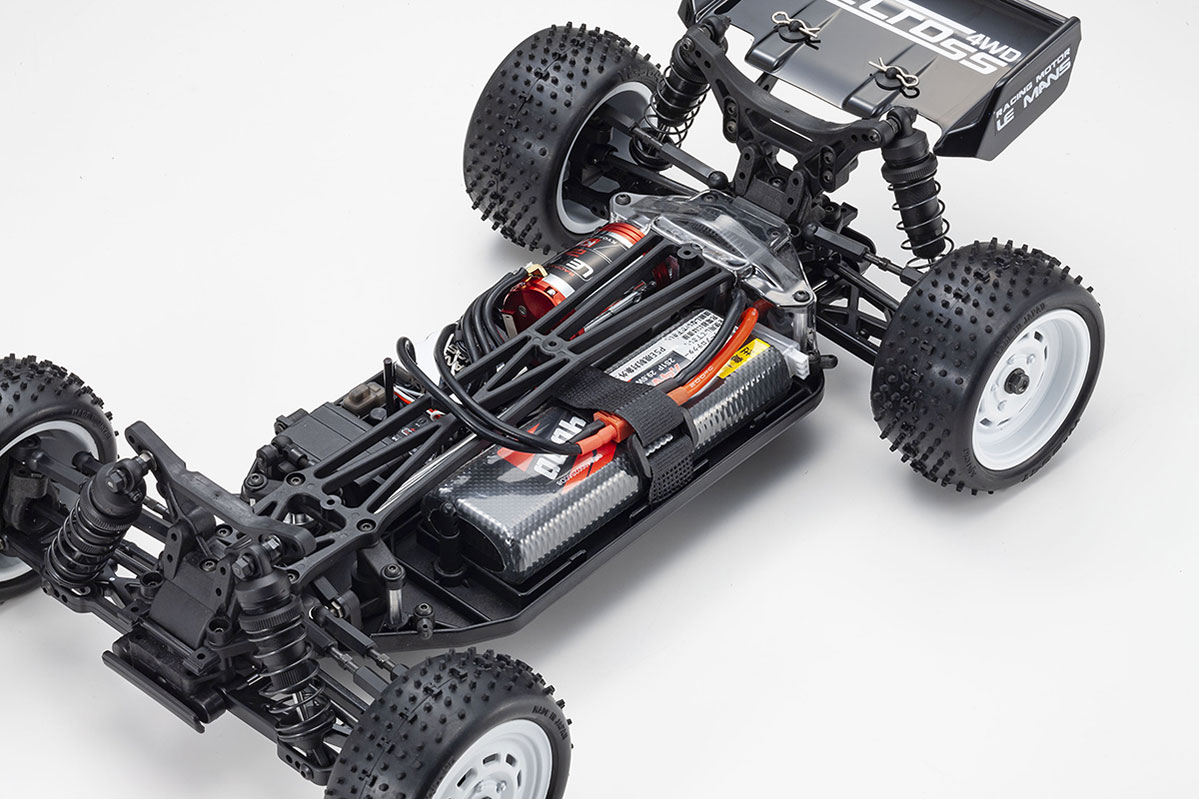

Compatible with most mainstream R/C car batteries available. The battery is secured with a hook-and-loop fastener belt, so various battery sizes and shapes can be secured in place.

Resin oil shocks equipped on front and rear suspensions soak up the bumps from the road surface. Dial adjustment of spring tension makes it easy to change chassis height setting.

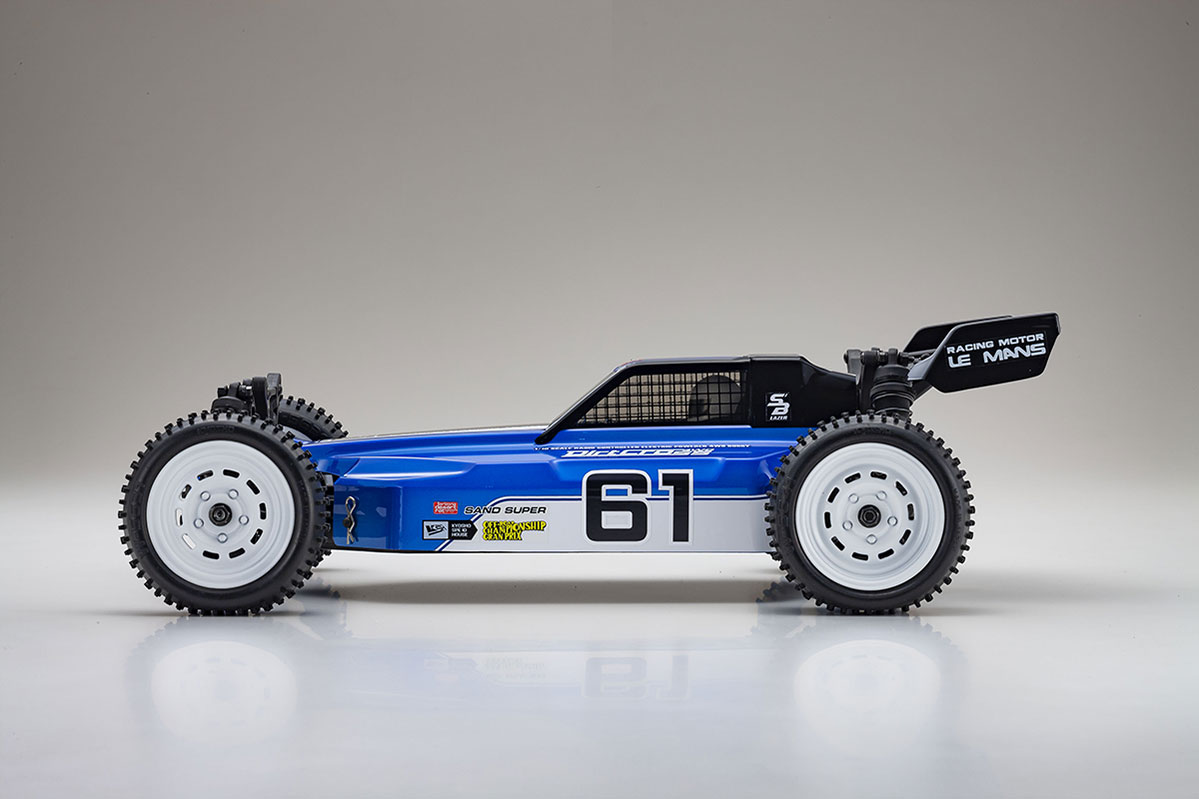

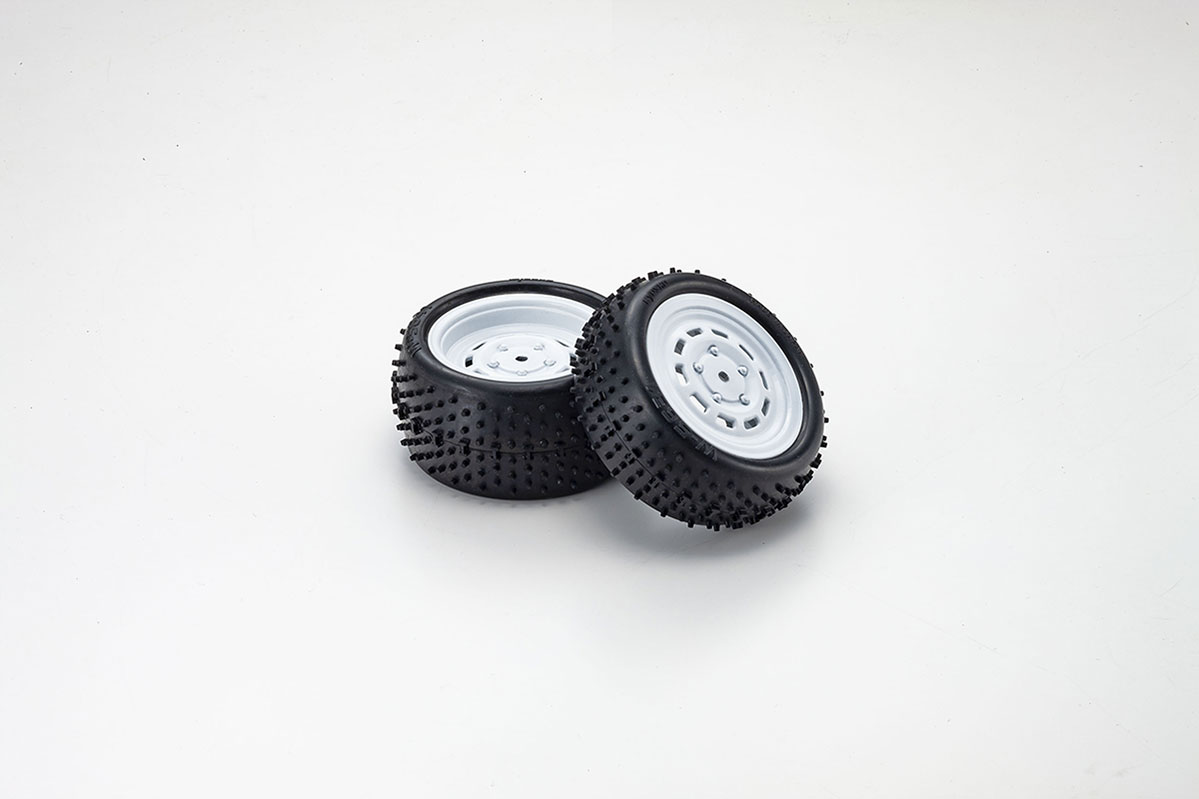

H-pattern pin tires are equipped on front and rear to provide reliable grip on any surface. Newly designed spoke wheels recreate that retro style to match the body form.

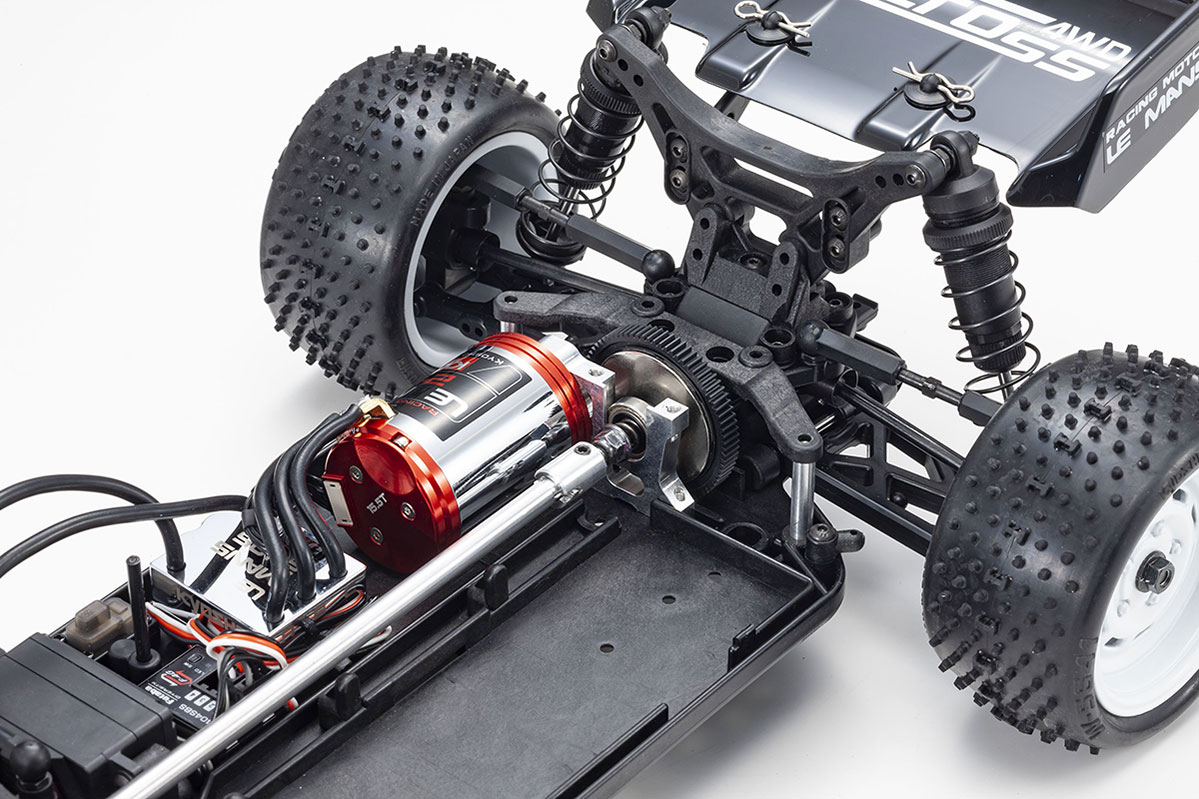

Slipper clutch protects the gears and drive system from excessive loads. Tension settings of the slipper clutch can be adjusted to change driving characteristics.

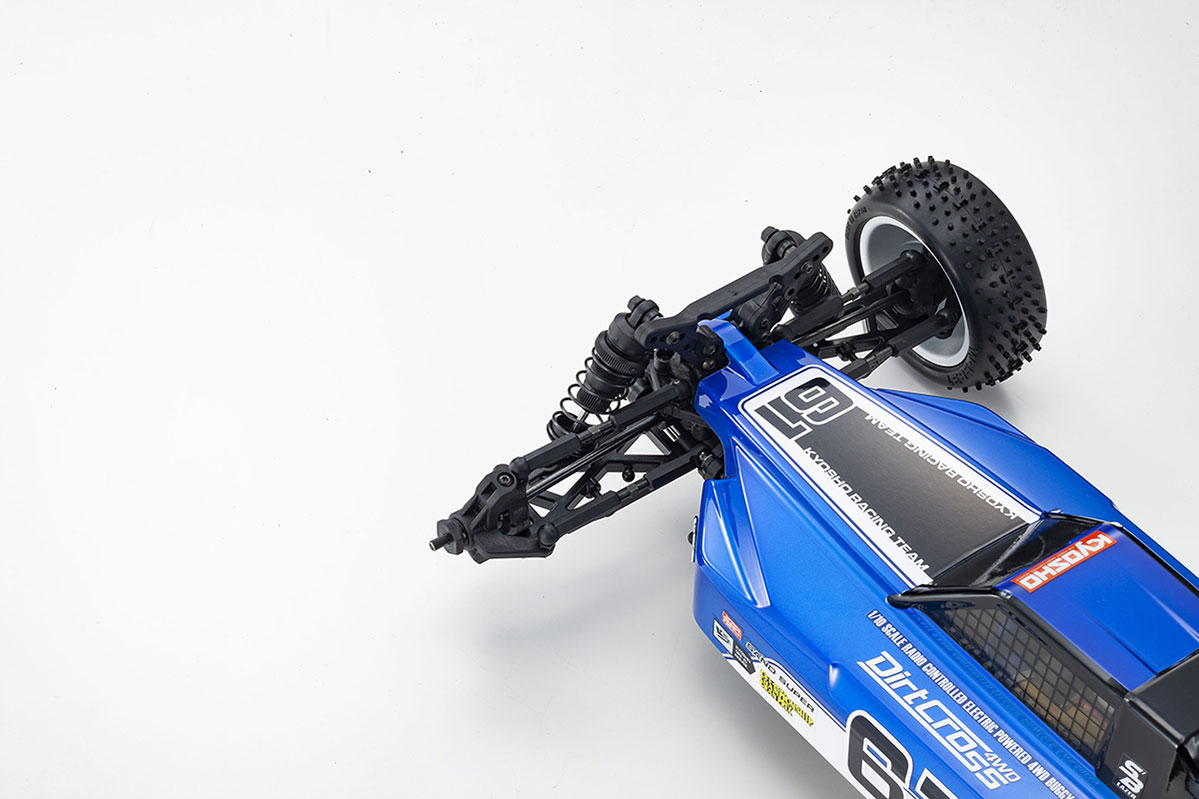

Front and rear suspension upper arms and steering rod use turnbuckles so simply turn to adjust rod length and change camber angle and toe angle settings.



Technical Data:
■Length 395mm
■Width 245mm
■Height125mm
■Wheelbase 268.5mm
■Tread（Ｆ／Ｒ） 209mm／201mm
■Tire F:φ88×33mm R:φ88×40mm
■Gear Ratio 8.13：1
■Weight 約1,450g
■Motor (sold separately)

Kit Contents
●Chassis
●Tire
●Wheel
●Clear body＆underbody
●Decals
●Hexagon wrench
●Cross wrench
●Shock wrench
●Grease
●Shock oil
●Threadlocker



Required for Operation
●2 channel R/C system
●Servo
servo size：L41xW20xH38mm
recommended: No.82274 KS4031-06W or No.82273 KS5031-09MW
●540Motor
recommended:LE MANS 240 GOLD Brushless Motor 13.5T No.37034
●ESC
ESC size：L40xW42xH29.5mm
recommended:No.37051B LE MANS 240S ESC
●Battery for chassis
Battery size:L140xW50xH25mm
●Batteries for transmitter
●Charger for battery
●Paint for body
●Regulated power supply
