Traxxas 3384 Motor BL-2s 3300 (Borstlös)

Traxxas 3382 - BL-2s™ Brushless Power System - Fast, Affordable, Fun!

The BL-2s™ brushless power system delivers more speed, faster acceleration, and virtually maintenance-free operation at an affordable price. Drivers experience smooth, effortless power with added punch for tire-shredding burnouts and blazing fast speed. Optimized for 7-cell NiMH and 2s LiPo batteries, the BL-2s delivers all-day fun, battery after battery.



BL-2s Brushless Electronic Speed Control
The waterproof BL-2s speed control delivers all the benefits of brushless technology with the safety and convenience features you expect from Traxxas. Built-in low-voltage detection, thermal shutdown protection, and EZ-Set® one button programming make BL-2s reliable and easy to operate.

BL-2s ESC Features:

• ­Fully waterproof
• Built-in two-stage low voltage detection for lithium polymer (LiPo) batteries
• NiMH battery packs 6-7 cells (7.2 - 8.4 V) or 2-cell LiPo battery packs (7.4 V)
• Patented Training Mode™ reduces the power output by 50% for new or younger drivers. When they're ready, simply change profiles to unleash full-throttle action.
• EZ-Set® one-button setup operates and programs just like other Traxxas speed controls
• Multi-color status LED
• Two-stage thermal shutdown protection protects the BL-2s from overheating
• Large aluminum heatsink dissipates heat
• Built-in auxiliary fan output
• Keyed motor connector

Three programmable drive profiles:

• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode™– 50% Fwd / Brake / 50% Rev

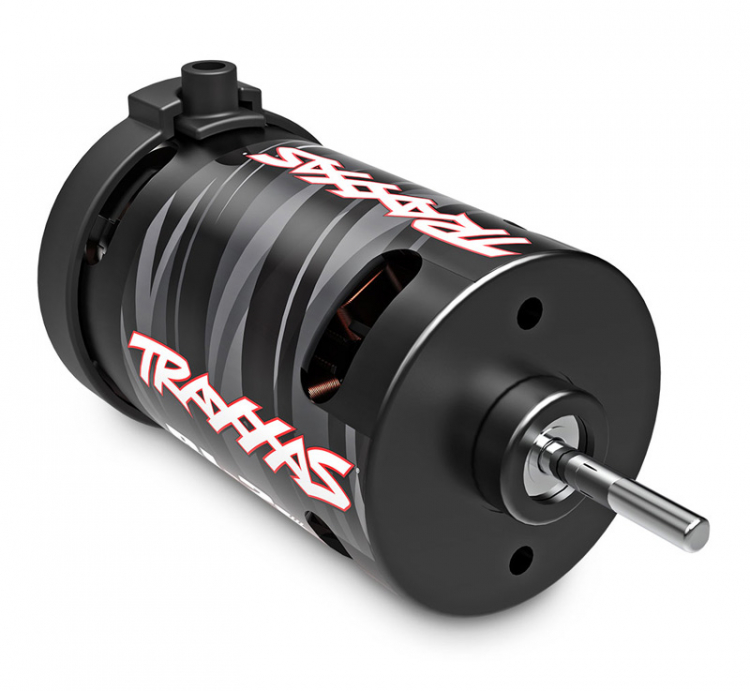

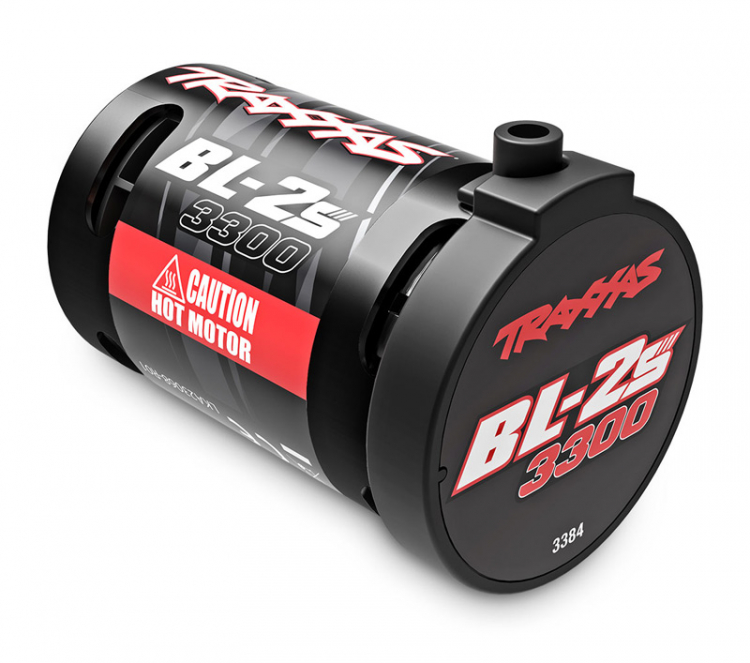

BL-2s Brushless Motor
The sensorless BL-2s 3300 kV motor delivers the all-day speed and torque you expect from brushless technology, without the high price tag. With no brushes to wear out, the BL-2s is long-lasting and virtually maintenance free. Low-friction ball bearings and an integrated cooling fan open the door to all-day fun.

BL-2s Brushless Motor Features::

• Integrated cooling fan
• Low-maintenance design
• High-speed ball bearings
• 3300 kV

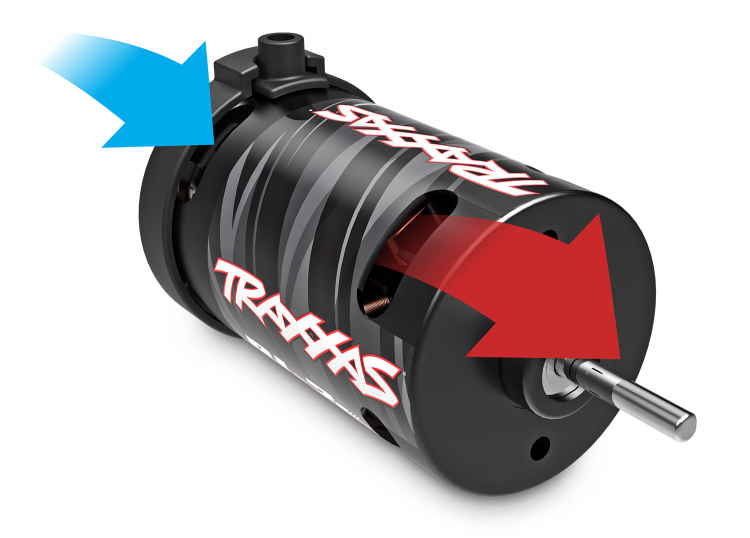

Integrated Cooling Fan
With no brushes to wear out, the BL-2s brushless motor delivers long-term fun with very low maintenance. An integrated fan pulls cooling air through the motor for all-day running without slowing down.

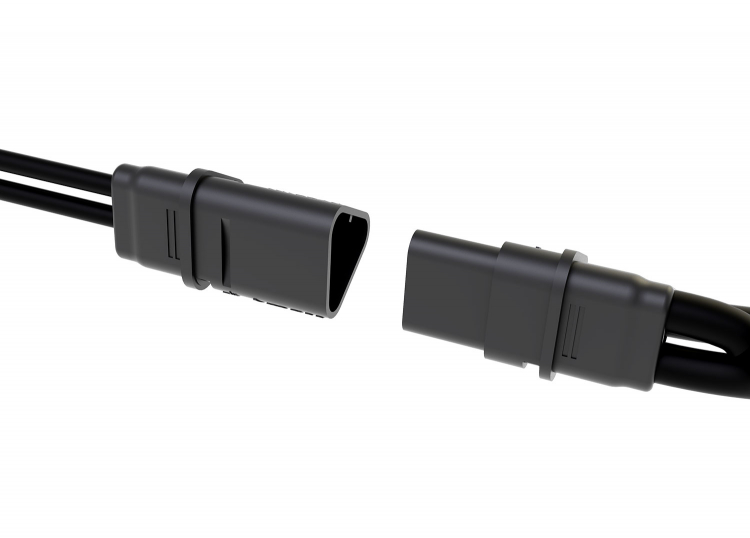

Quick Connect Motor Plug
The Traxxas Quick Connect Motor Plug delivers free-flowing power from the ESC to the motor. The specially-keyed design aligns the plug in the correct orientation every time.

BL-2s WATERPROOF ESC SPECIFICATIONS

• Input Voltage: NiMH 6-7 cells (7.2 to 8.4 volts) or LiPo 2 cell (7.4 volts)
• Case Size: W39 x D59 x H31mm
• Weight: 87 grams
• Reverse Delay: Yes, with lockout
• BEC Voltage: 6.0 volts
• BEC Current: 3 amps
• Input Wire: 14 gauge
• Motor Connectors: Quick Connect Motor Plug
• Input Harness Wire: 26 gauge
• Low Voltage Detection: 2-stage indicators, switchable (on or off)
• Thermal Protection: 2-Stage thermal shutdown
• Single-Button Setup: Traxxas EZ-Set®
• Battery Input Connector : Traxxas High-Current Connector
• Motor Types: Brushless
• Accessory Port: Auxiliary fan

Profile selection:

• Sport Mode: 100% Fwd, 100% Brake, 100% Rev
• Race Mode: 100% Fwd, 100% Brake, No Rev
• Training Mode:* 50% Fwd, 100% Brake, 50% Rev

*Patented

BL-2s BRUSHLESS MOTOR SPECIFICATIONS

• Type: Sensorless brushless
• kV: 3300
• Wire Size: 16 gauge
• Cooling: Integrated cooling fan
• Motor Length: 57mm
• Can Diameter: 37mm
• Weight: 201gr

Replacement part for these models:

• Rustler® 4X4 Brushless
• Slash® 4X4 Brushless
• Stampede® 4X4 Brushless
• Slash® 2WD Brushless
