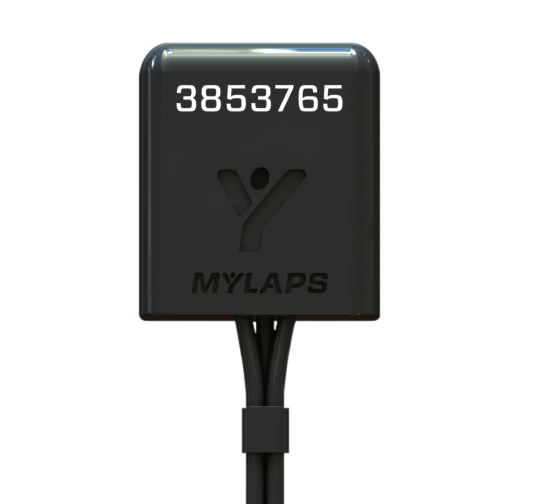

Mylaps RC4 Pro Transponder

The world’s smallest transponder now in a pitch-black design helping you race in style. This device is compatible with all MYLAPS RC4 timing systems (with all firmware versions).

You install the transponder in your RC car. If you race with multiple RC cars it’s convenient to install a transponder in every car. A transponder has a seven-digit number.

Features:

The RC4 Pro transponder is 25% smaller than the RC4

A shorter 8cm cable ensures a perfect fit every time

It weighs only 3 grams

All your results in your personal profile.

RC4 transponders can be used for both indoor and outdoor racing and will perform on just about any surface.

Compatible with MYLAPS RC4 timing systems.

Specifications:

Dimensions (WxLxH): 15.7x18.0x4.5 mm 0.62 x 0.71 x 0.18 in

Weight: 3 g

Cable length: 80 mm / 3.1 in

Humidity: Max. 90% relative

Max. Speed: 120 km/h / 75 mph

Temperature range: 0-50 °C / 32-122 F

Signal transfer: Magnetic induction

Code resolution: 1.5 ms

Transponder position: Max. Height 15 cm / 6 in

Power: Feed from free receiver channel (ch3 or 4)

Connection Plug: Connect using a standard Servo plug

Power consumption: 19mA @ 6 VDC

Operating voltage: 2.8 <–-> 16 VDC (recommended: 3.5 <--> 12 VDC)

Wire insulation: Aerospace/MIL-spec high-temp PTFE (Gasoline/Nitro resistant)
