Once have it - Hardly leave it

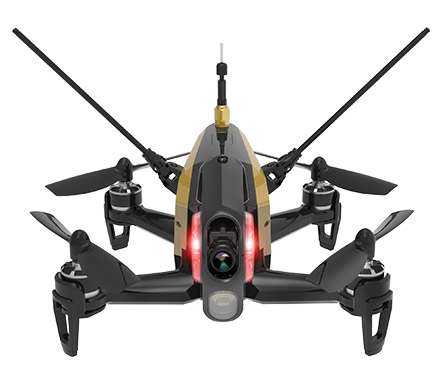

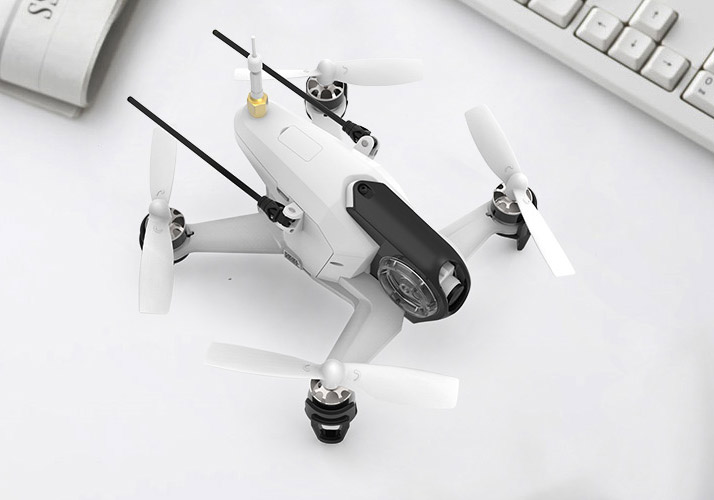

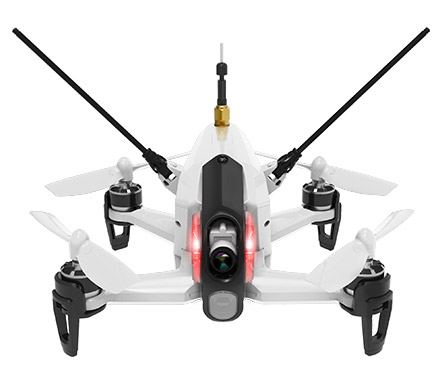

The design of fuselage follows symmetrical aesthetic concept strictly and meticulous craftsmanship in every detail which is extremely exquisite. Compact fuselage design of Rodeo 150 not only can achieve the visual satisfy, but also the surprise to touch. We pointedly redesign the radian of fuselage to make it fit with the plastic material perfectly and make a surprising slim body.

• Indoor Racing
• Outdoor Racing

Enclosed Modular Design
The highlight of Rodeo 150 is not only its slim fuselage but also the enclosed modular design, which ensures circuit stability of main frame and other modules. The internal electronic parts are thoroughly redesigned with better configuration, in order to protect each sophisticated components and to prevent signal interference and crash impact.

Easy Racing Camera
An excellent camera can record the moments of your life. Mini camera is the eye that can capture all the details. Wonderful moments are hard to come by, good camera should be made to keep track of your every moment.

The Most Mainstream Flight Controller
With the most mainstream racing drone flight controller F3, players can adjust flight control parameters as needed.

Professional HD 5.8G Image Transmission
Professional wireless HD 5.8G image transmission(8 channels race bind), which provides the best performance for Rodeo 150, Image transmission with zero delay and high-definition completely meet the demand of racing drones.

Aircraft specifications:

• Main Rotor Diameter: 96 mm
• Overall (L x W x H): 137 x 148 x 77 mm
• Weight: 159 g (Battery excluded)
• Remote Controller: DEVO 7
• Receiver: DEVO-RX716
• Main Controller: FCS-Rodeo 150
• Video Transmitter: TX5833
• Brushless Motor:WK-WS-17-002 (CW/CCW)
• Brushless ESC: Rodeo 150
• Batter: 7.4V 850mAh 30C 2S LiPo
• 2D Flight Time: 7~8mins
• Working environment: -10℃~ +40℃

Camera - 600TVL:

• Horizontal Resolution: 600TVL
• System Commitee: PAL/NTSC
• Video Out: 1.0Vp-p/75Ω
• Power Input: DC 5-12V

TX5833 (CE) Video Transmitter:

• 5.8G wireless image transmission
• Bind B section: 8 channels
• Output power: ≤25mW
