RC ElektronikElmotorerHobbywing 30109100 QuicRun Fusion 8IGHT SE 1800kV med Integrerad ESC 60A

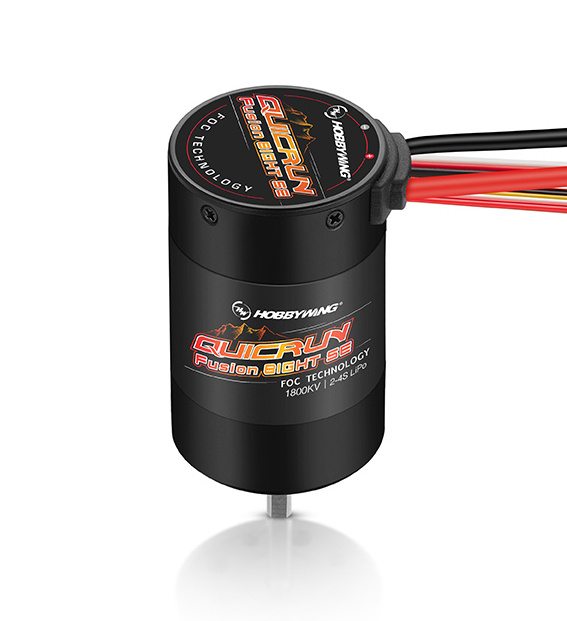

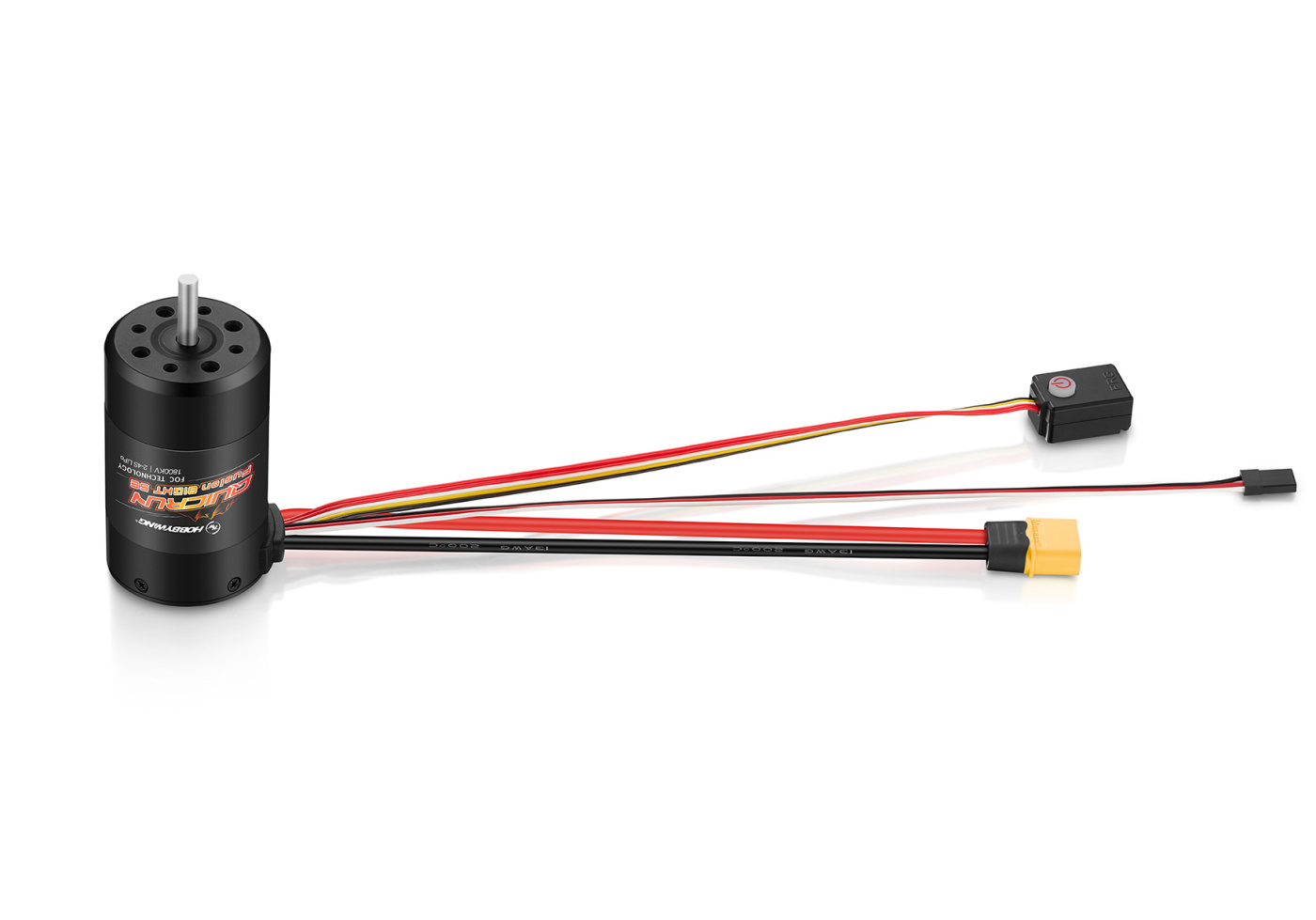

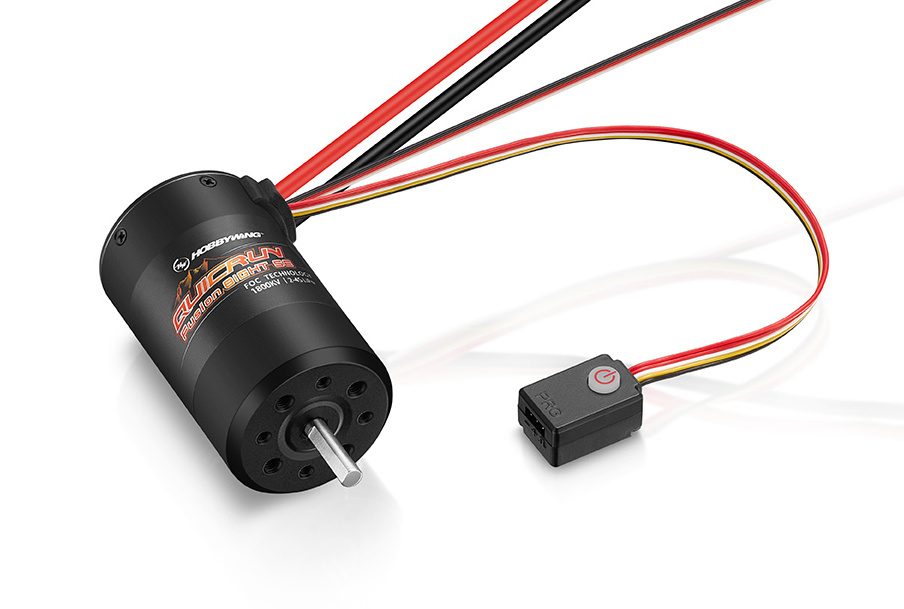

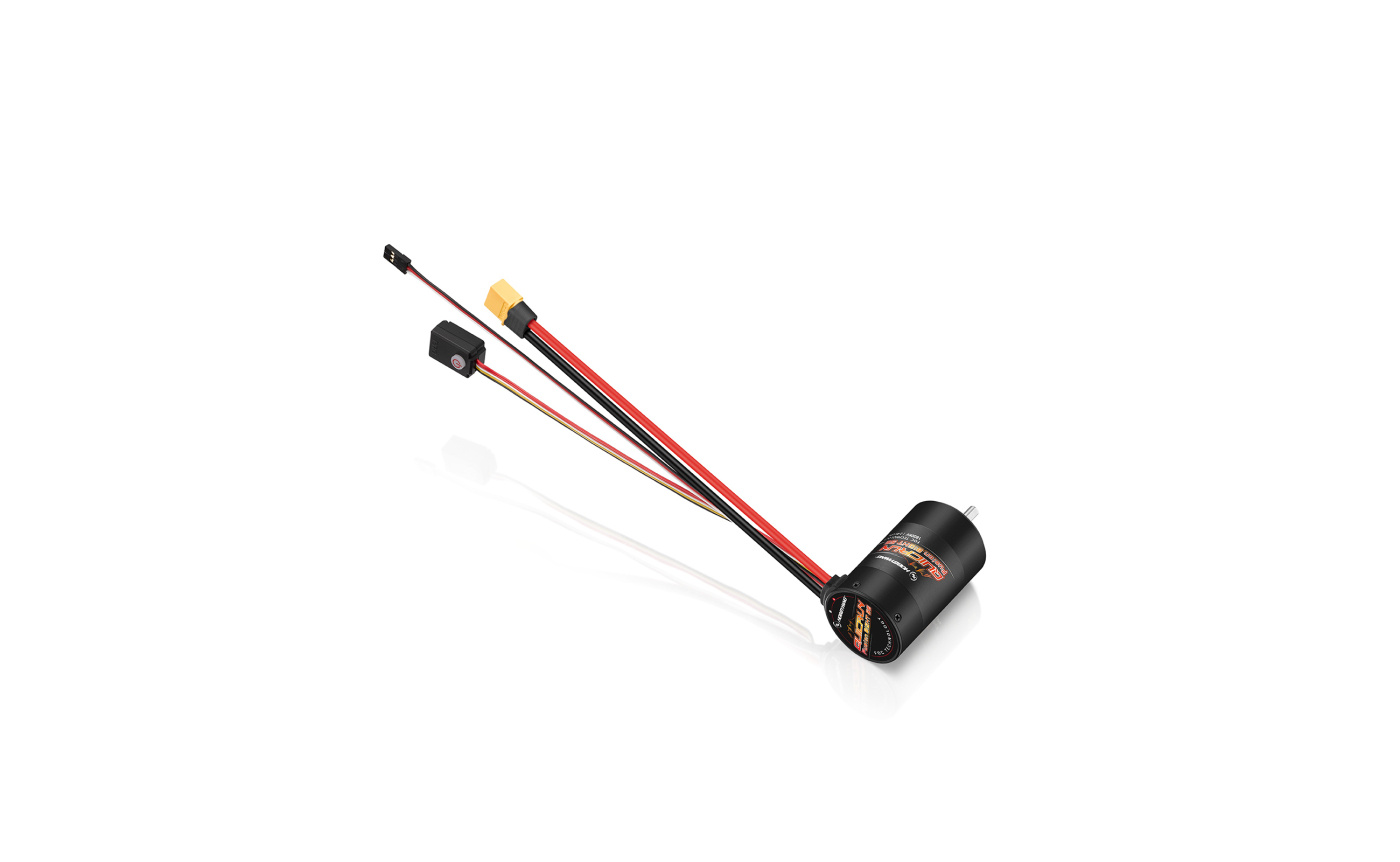

Hobbywing 30109100 QuicRun Fusion 8IGHT SE 1800kV med Integrerad ESC 60A
Hobbywing 30109100 QuicRun Fusion 8IGHT SE 1800kV med Integrerad ESC 60A
Hobbywing 30109100 QuicRun Fusion 8IGHT SE 1800kV med Integrerad ESC 60A - 2
Hobbywing 30109100 QuicRun Fusion 8IGHT SE 1800kV med Integrerad ESC 60A - 3

Hobbywing 30109100 QuicRun Fusion 8IGHT SE 1800kV med Integrerad ESC 60A

1 095 SEK/styck
Läs mer...

I lager: 2

  • Betala säkert med kort
  • Maila oss, vi svarar snabbt!
  • Snabba leveranser
  • Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303

* Vi kan vara upptagna, ring igen om vi inte svarar!

  • FabrikatHobbywing
  • ApplikationBil
  • MotortypBorstlös
  • kV-värde1800kV
  • Motor diameter41 mm
  • Motor längd69 mm
  • Motoraxel längd18.5 mm
  • Motoraxel diameter5 mm
  • Vikt326.5 g
  • Max spänning14,8 V
  • VarumärkeHobbywing

Beskrivning

Art.nr: HW30109100

Hobbywing QuicRun Fusion 8IGHT SE – Integrated Power System for 1/8 Scale Crawlers

Overview
The QuicRun Fusion 8IGHT SE is an integrated brushless power system that combines ESC and motor into one compact unit. Designed specifically for 1/8 scale crawlers, it features advanced FOC (Field Oriented Control) technology for ultra-smooth throttle response, high torque at low speed, and extremely quiet operation. Its integrated design simplifies wiring and installation while improving reliability and space efficiency.

Key Features

  • Integrated ESC + motor design for easy installation and compact layout.

  • FOC technology delivers precise control, powerful low-speed torque, and smooth operation.

  • IP67 waterproof and dustproof rating ensures reliability in all weather and terrain conditions.

  • Supports 2–4 S LiPo or 6–12 cell NiMH batteries.

  • Built-in BEC with selectable output voltage (6 V / 7.4 V) and continuous 4 A current.

  • Three running modes available: Forward / Brake / Reverse, Forward / Reverse, and Forward / Brake.

  • Programmable via SET button, LED Program Box or LCD Program Box.

  • Eleven adjustable parameters, including running mode, cutoff voltage, thermal protection, BEC voltage, motor rotation, drag brake force, drag brake rate, max reverse force, and RPM reduction rate.

Technical Specifications
  • Continuous current: 60 A
  • Peak current: 200 A
  • Input voltage: 2–4 S LiPo / 6–12 cells NiMH
  • Motor type: Sensored brushless
  • Motor KV: 1800 KV
  • Motor poles: 4
  • Built-in BEC output: 6 V / 7.4 V adjustable, 4 A continuous
  • Waterproof rating: IP67
  • Size (motor diameter × length): 41 × 69 mm
  • Shaft diameter / length: 5 mm / 18.5 mm
  • Weight: 326.5 g (including wires and connectors)
  • Application: 1/8 scale crawler vehicles
