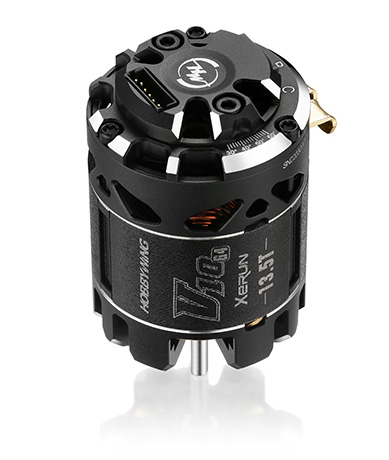

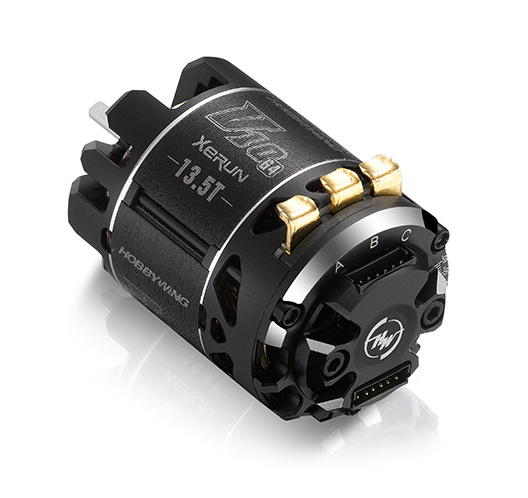

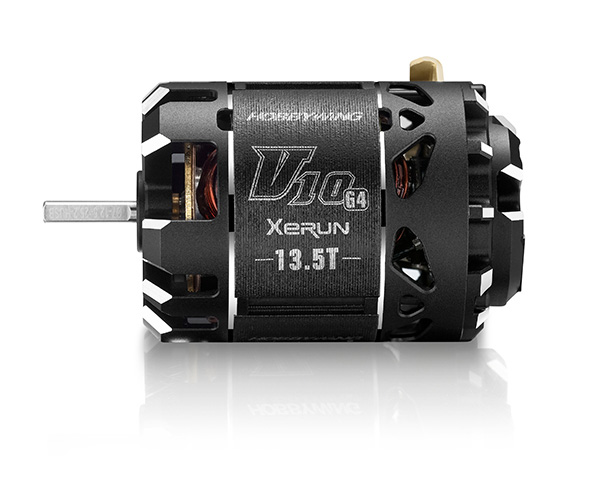

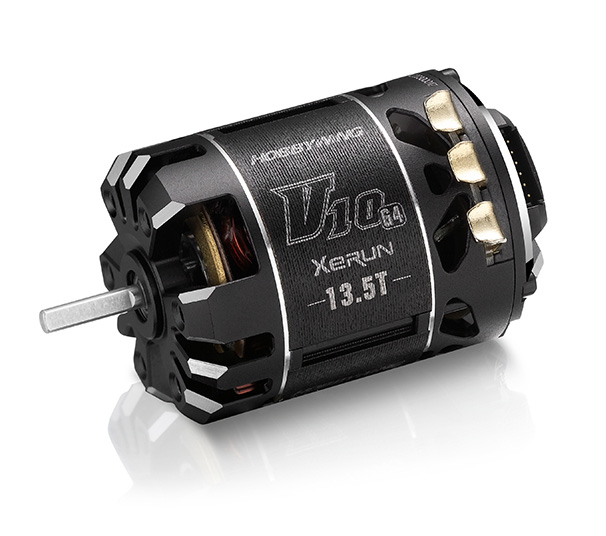

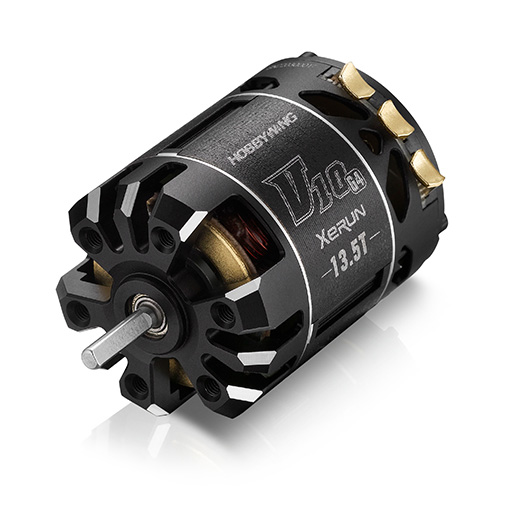

Hobbywing 30401140 Motor XeRun V10 13.5T Black G4 Stock

Hobbywing XeRun V10 G4 Brushless Stock 13.5T

• Excellent performance, specially designed for racing; Compared with V10 G3R motor, the KV value of G4 motor is increased by 9.8%, the maximum output power is increased by 5%, and the internal resistance is reduced by 4%.
• The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and increases the direct heat dissipation area by 25.6% compared with G3R. In addition, the rear end of the motor is a big opening structure to further improve the heat dissipation effect.
• Dual sensor interface design to meet various wiring/layout requirements.
• The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.

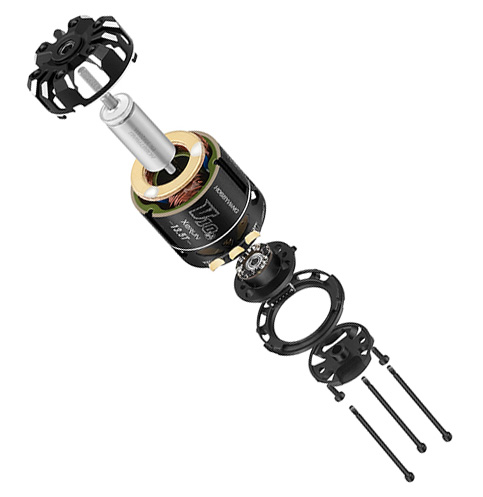

• The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.
• The use of high-performance stator core, heat(200°C )-resistant wire, heat(180°C)-resistant rotor with strong structure, world-class high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
• It’s compliant with IFMAR, ROAR, EFRA, BRCA, JMRCA rules, and certificated by RoHS, CE, FCC and etc

• Type: 1/10, Sensored, Bruhsless, Stock
• Pole Count: 2
• KV Rating: 3950KV
• LiPo Cells: 2-3S
• No-load Current: 4.5A
• O.D.: 35.8mm
• Length: 51.4mm
• Shaft Diameter: 3.175mm
• Weight: 149g
• Front Bearing: D9xD4xT4mm
• Rear Bearing: D8xD3xT4mm
• Timing: 30-60 Degrees (Adjustable)
• Application: 1/10th STOCK Class Racing
