Hobbywing 38010401 EzRun Combo MAX8 - 4274SL 2200kV 2-6S 1/8 TRX-Kontakt
2 692 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatHobbywing
- ApplikationBil
- MotortypBorstlös
- kV-värde2200 kV
- Motor diameter42 mm
- Motor längd74 mm
- Motoraxel längd18,5 mm
- Motoraxel diameter5 mm
- Max spänning22,2 V
- Effekt Peak3000 W
- Inkluderar ävenProgrammeringskort
- VarumärkeHobbywing
Beskrivning
Art.nr: MC_HW38010401
- Type: 1/8, Brushless, Sensorless Motor
- Poles: 4
- KV Rating: 2200
- LiPo Cells: 2-6S
- Shaft Diameter: 5mm
- Outer Diameter: 42mm
- Length: 74mm
- Weight: 418g
- Ballbearing (front): ID5 x OD16 x T4 mm
- Ballbearing (rear): ID5 x OD13 x T4 mm
- Vehicles: 1/8 Stadium Trucks/Monster Trucks
- Type: 1/8, Brushless, Sensorless, WP
- Size: 59.8 x 48 x 36.8mm
- Weight: 174g
- Cont./Peak Current: 150A/950A
- Input Voltage: 3-6S LiPo/9-18 Cells NiMH
- BEC Output: Switch Mode: 6V/7.4V，6A
- Input Wires: 10AWG-200mm
- Output Wires: 10AWG-200mm
- Input Connectors: TRX-Plug
- Output Connectors: 6.5mm Female Gold (pre-soldered onto the PCB)
- Fan Size: 30 x 30 x 10mm
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- OTA Programmer: Supported
- Program Port: FAN/Program Port
- Firmware Upgrade: Supported

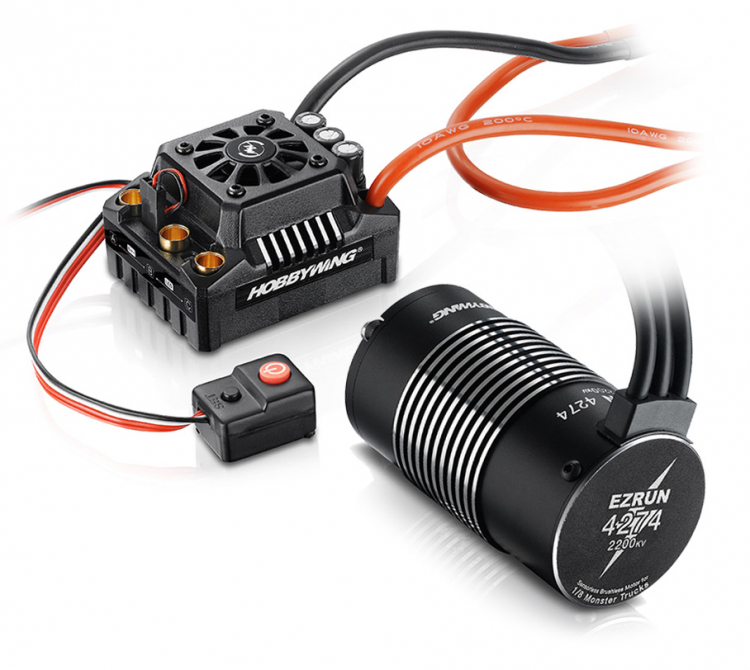

EzRun MAX8 ESC & 4274-2200Kv Sensorless Brushless Combo Set with TRX-Plugs
This is a brushless Hobbywing EzRun combo set made for 4WD 1/8 scale Trucks, Stadium Trucks & Monster Trucks to run between 4-6s LiPo batteries (dual 2s or dual 3s with TRX-Plugs).

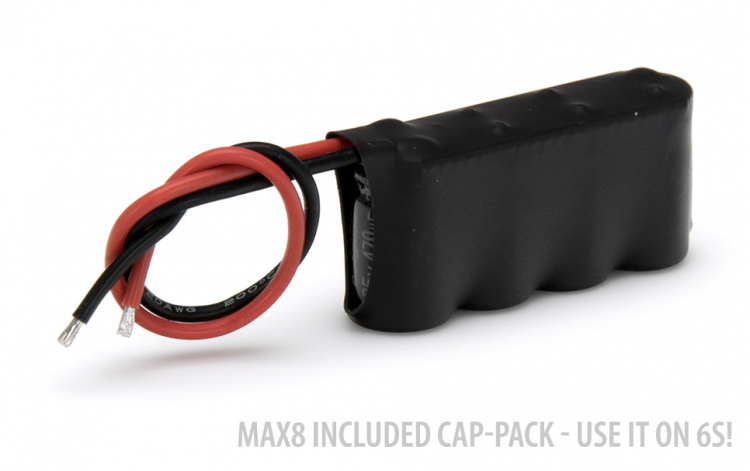

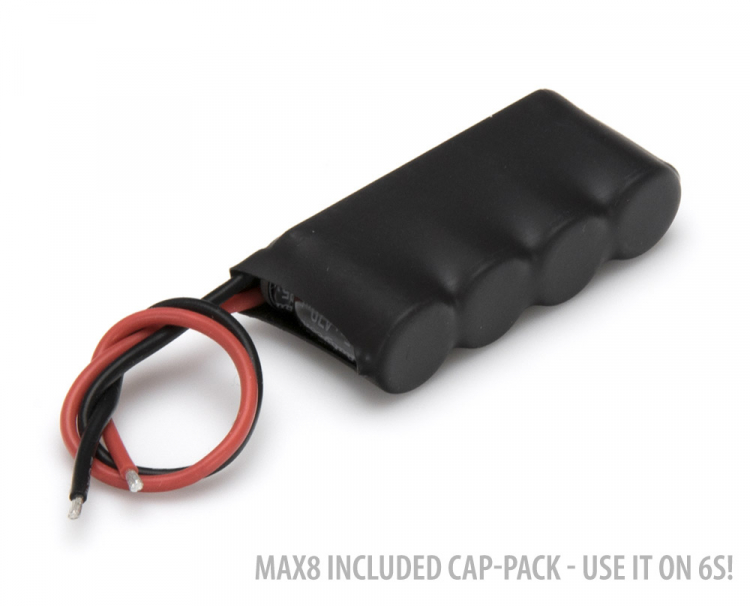

Included Cap-Pack
We recommend you to use the included cap-pack, especially when/if you use 6S battery packs!
EzRun 4274-2200KV Brushless Motor Specifications:
EzRun MAX8 ESC Specifications:
ESC Programing via:
