Hobbywing 30302200 Fartreglage Seaking 60A V4 2-3S Båt
488 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- VarumärkeHobbywing
Beskrivning
Art.nr: HW30302202

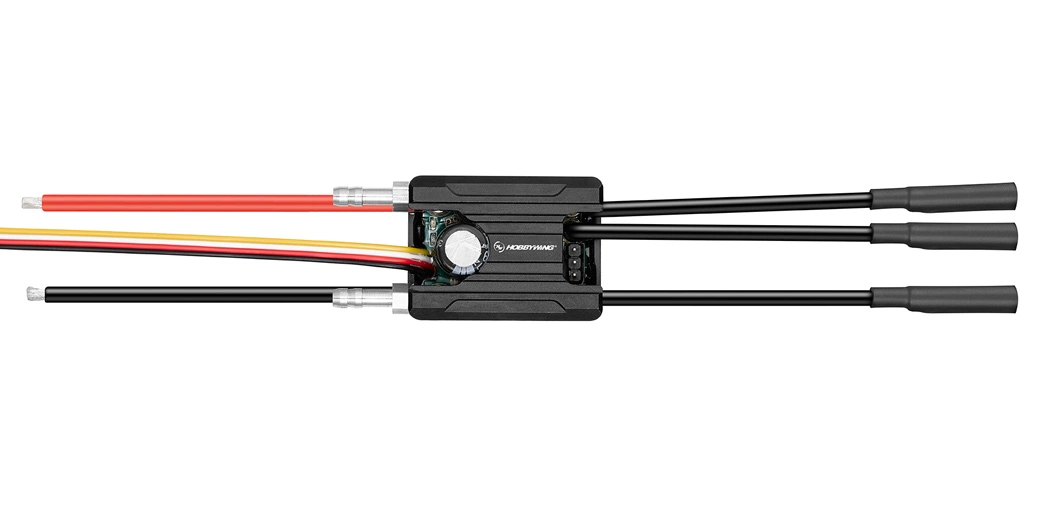

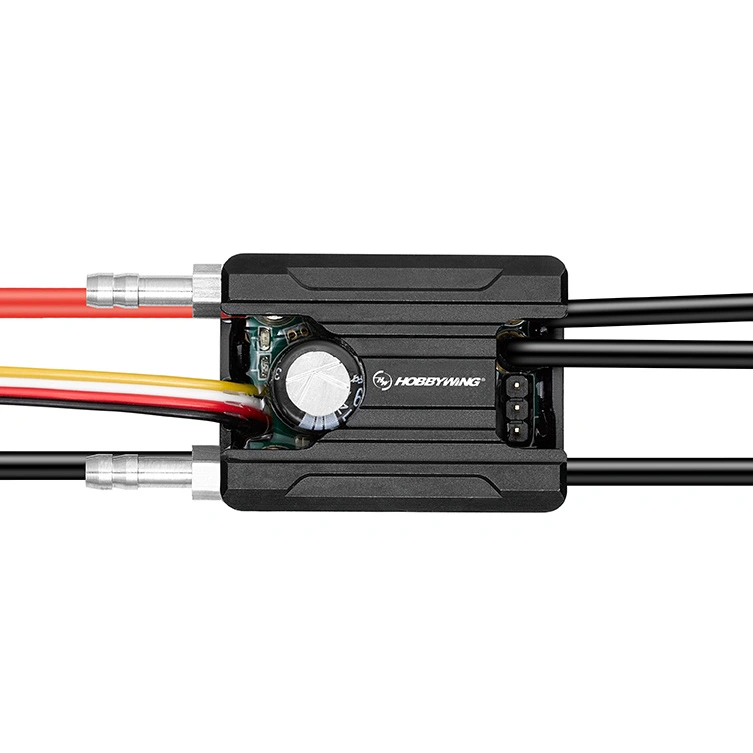

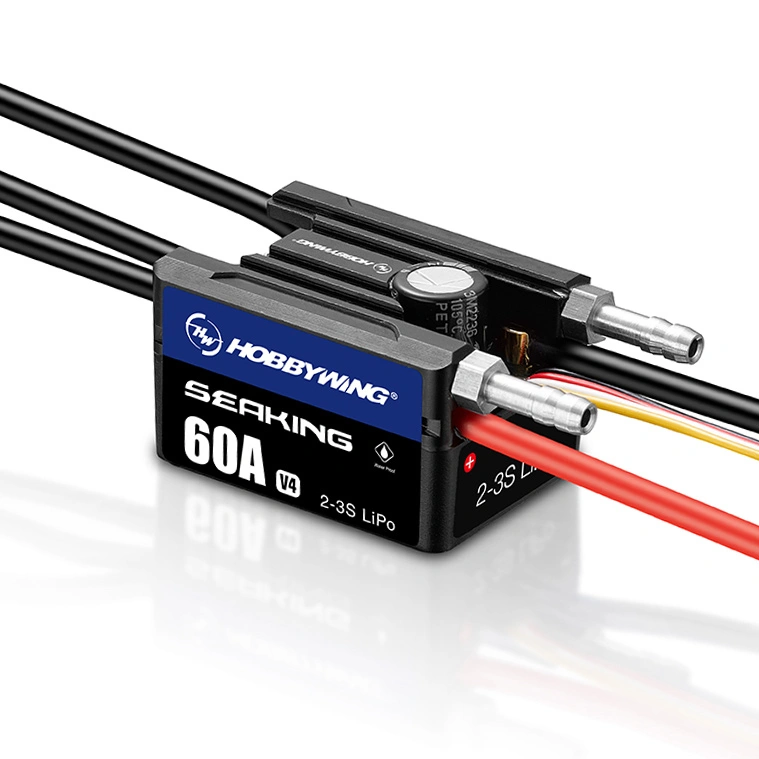

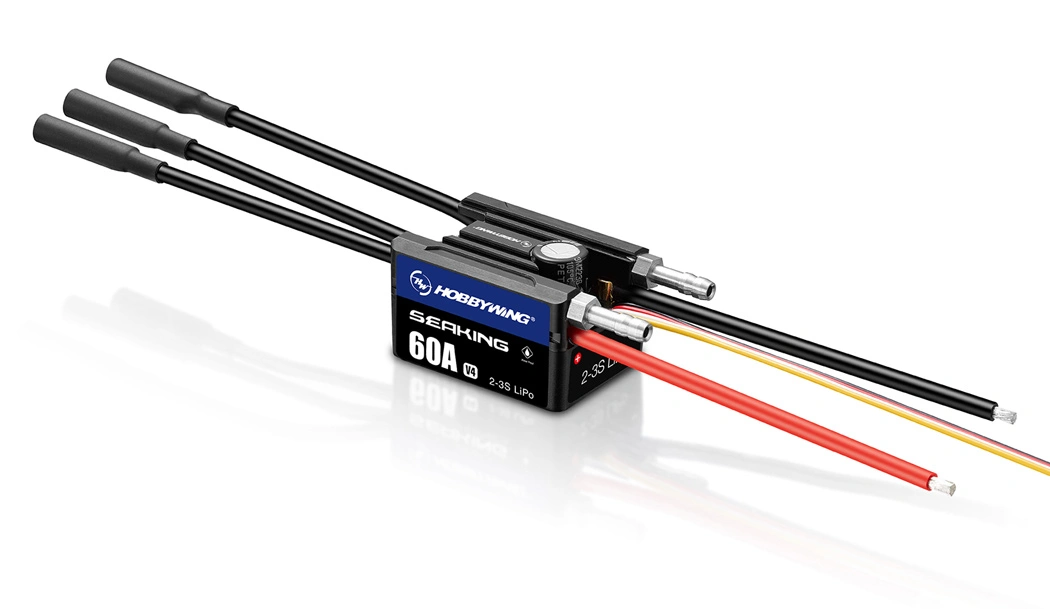

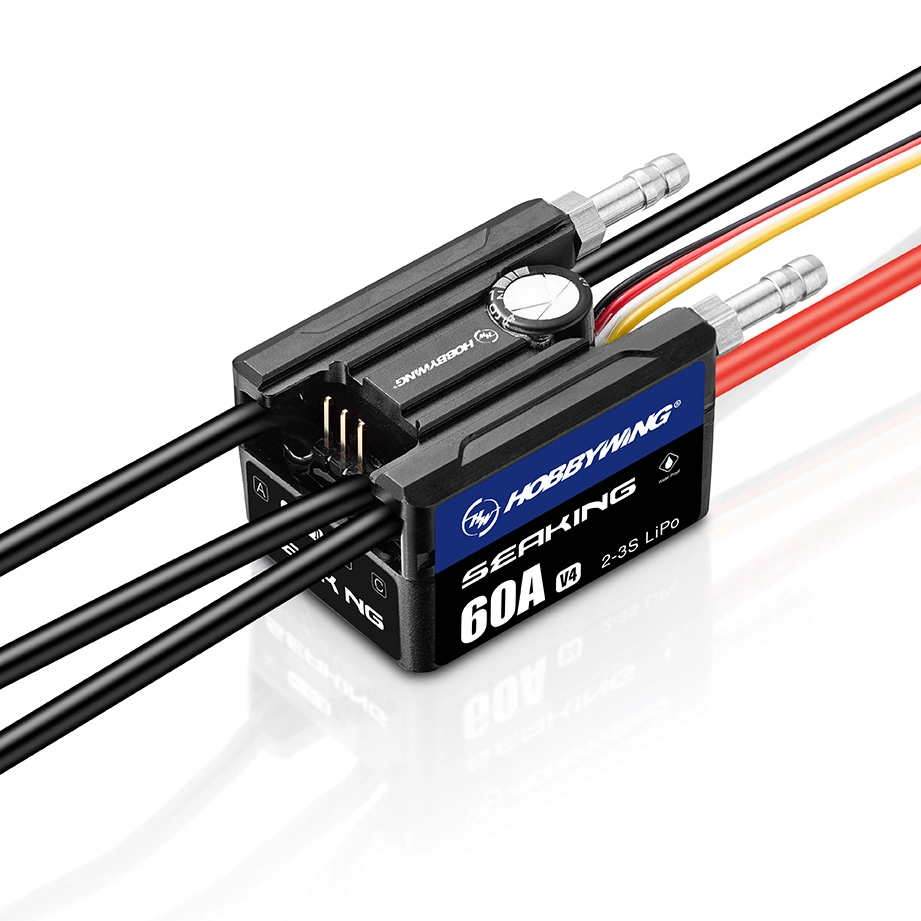

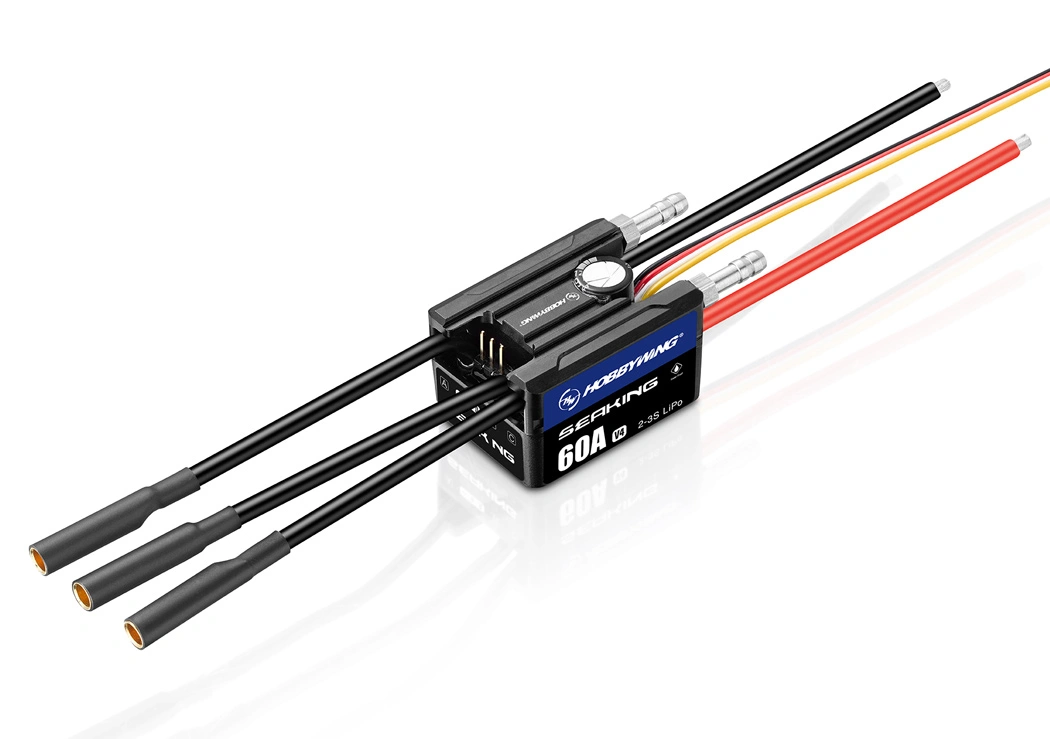

Hobbywing HW30302202 - Seaking 60A V4 2-3S Marine ESC
Ultra-high Reliability and Durability- Low voltage protection
- Over-temperature protection
- Throttle signal loss protection
- Overload protection
Slim Design for Easy Installation
The new ESC is significantly narrower than the previous Seaking 30A/60A/120A V3 models, allowing for easier installation on narrow boats.
Built-in Data Logging for Performance Monitoring
By connecting the ESC to the OTA Bluetooth module, real-time data such as throttle position, voltage, temperature, and speed can be monitored via a mobile app. After operation, historical data can be viewed in the form of curve graphs, providing a clear overview of the ESC and motor's performance and operating status.
Note:Due to the Bluetooth transmission distance, the effective distance is about 5m. Please refer to the instruction manual for the connection method!
IP67 Fully Waterproof Design
With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities. It can be used immediately without any additional waterproofing treatment.
- Splash protect
- Waterproof
- Dustproof
Super Built-in BEC
Which can easily drive various powerful servos and high-voltage servos.
Capacitor Overheating Protection
The capacitor overheating protection helps prevent damage to the ESC caused by capacitor failure due to overloading, safeguarding the unit against complete failure.
Freewheeling Function
When enabled the Freewheeling function:
- ESC temperature is cooler
- When the throttle is released the boat decelerates faster
- Cornering control and handling BETTER
AUX External Control Channel for Real-time Parameter Adjustment
By connecting the yellow signal wire to an unused receiver channel, you can adjust ESC parameters (like reverse thrust) in real-time using the remote control, adding convenience to parameter management.
Note:The actual function of the yellow wire corresponds to the AUX CH Function settings in the parameter table.
Supports ESC Firmware Updates
Supports firmware updates via Hobbywing USB LINK software and HW LINK mobile app, ensuring access to the latest features.
Note: Updating requires an LCD programming box or OTA module, sold separately.
Optimized Programmable Parameter
With 11 programmable parameters, the ESC is designed to meet competitive racing needs, offering a wider and more detailed range of settings.
Specs:
- Brushless
- Sensorless
- Waterproof
- Cont./Peak Current: 60A/200A
- Input Voltage: 2-3s LiPo
- BEC Output: Switch mode 6V/7.4V @4A
- Input Wires: 14AWG-85mm
- Output Wires: 14AWG-85mm
- Input Connectors: No
- Output Connectors: 4mm Gold female plug
- Firmware Upgrade: Supported
- Size: 38.7x29x25mm
- Weight: 64.6g (Including wire and output plug)
- Boat Applicable: ≤60CM
ESC Programing via:
- LED Program Box: Supported
- LCD G2 Program Box: Supported
- LCD PRO: Supported
- OTA Programmer: Supported
- Program Port: Throttle signal wire
Data Recording:
- Extreme value: Supported
- Real-time Data: Supported
- Historical data (Graph): Supported
