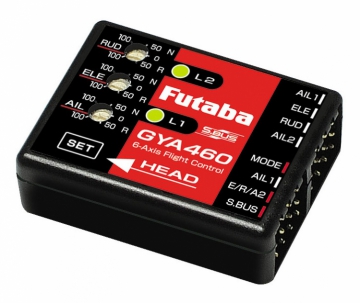

GYA460 6-Axis Flight Control för Flygplan

The GYA460 is a flight attitude controller and stabilizer designed exclusively for model aircrafts. In addition to control by 3 axis gyro sensor, flight attitude is controlled by a 3 axis G-sensor.

Besides a beginners mode, which assists flight by beginners by automatic horizontal level return control and flight attitude angle control, a gyro-mode and gyro off mode can also be selected.

Features:

• 3-Axis Gyro plus 3-Axis Accelerometer
• Auto level control support
• Low profile, small size and light weight
• Easy setup
• S.BUS compatible - only one connection is necessary between the S.BUS receiver and GYA460
• Three flight modes can be selected by transmitter switch
• Sensitivity adjustment can set aileron, elevator, and rudder separately by GYA460 trimmer
• Parameters can be set by GYA460 SET button and LED
• Tailless wing compatible

• *Attitude cannot be controlled in the stalled state in which the rudder is ineffective
• *2-Aileron, ?aperon, air brake mixing can't be used
• *Always use only genuine Futaba transmitters, receivers, servos and other optional accessories

Beginner Mode (Blue)

• This mode is suitable for level flight training of beginners.
• The fuselage flight attitude angle is limited to approximately ± 80°.
• When the transmitter sticks (except the throttle) are set to neutral, automatic horizontal level control returns the airplane to the level state.

Gyro Mode (Red)

• This mode is suitable for inverted flight and acrobatics.
• The plane is controlled by gyro sensor only.
• Fuselage attitude angle limit and automatic horizontal level control are turned off.

Gyro-Off (Yellow)

• In this mode, the plane is not controlled by gyro sensor.

For the detailed usage method and precautions, refer to the GYA460 6-axis Flight Control instruction manual.

*For first flight of the aircraft, before mounting the GYA460, have an experienced flier make flight adjustments without the GYA460 connected.


Specifications:

• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC4.0 ? 8.4V
• Current drain: 44 mA
• Operating temperature range: -10°? +45°
• Dimensions: 35 × 27 × 12mm
• Weight: 10 g

Set Contents:

• GYA460 × 1
• Double Sided Tape × 1
• 3-Signal Cord × 1
• Extension Cord × 2
• Mini Screwdriver × 1
• Manual × 1
• Quick Reference × 1
