GYD550 Gyro High-end Bil Drifting

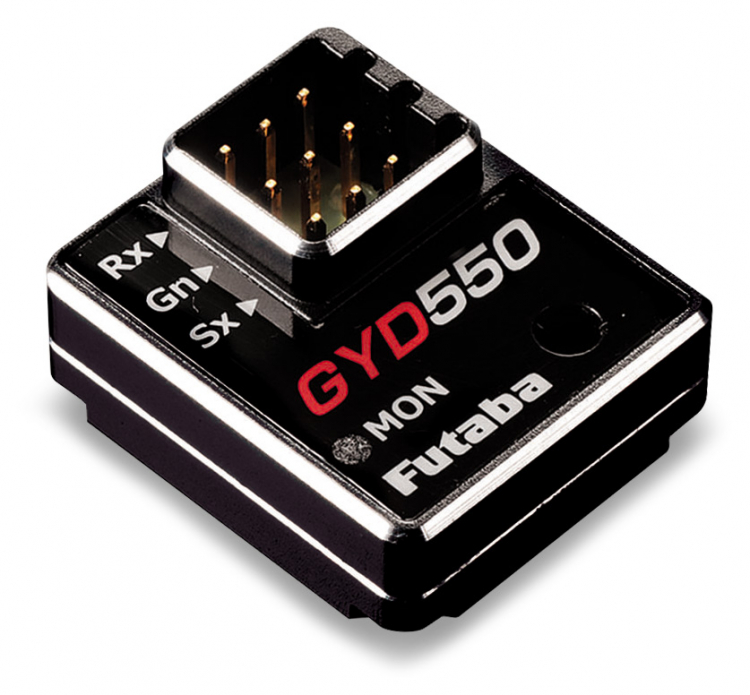

Futaba GYD550 - RC Car Counter-Steer Gyro System

GYD550 is a advanced gyro system designed to be used with 1/10th scale slick, carpet, and all drift surfaces. Having features such as SR Mode for superior response, and user adjustable parameters accessible WIRELESSLY with the T7PX/R on version 7.0 the set-up and tuning abilities are limitless.

Take your drift to the next level with AVCS technology – Drifting has never been smoother, in control, and easy for beginners. You tell the car where to go, don’t let it control you!

Wireless features require T-FHSS and R334SBS/E updated to version 4.0.

Features:

• Dedicated RC Drift car setting: Vehicle straight-line and cornering performance can be increased without taking into account the effect of the road surface, etc.
• Remote gain function and mode switching function: You can adjust gain from the transmitter (3 or more CH) by using the remote gain function. The mode switching function allows AVCS/NORMAL gyro mode switching.
• Integrated, compact, and light weight: Compact size（22.6x19.6x11 mm）and light weight（5.6 g）realized by high density mounting technology.
• Aluminium case: The GYD550 is equipped with a robust and highly rigid aluminum case.
• Supporting the S.BUS/S.BUS2 connection: Only one wire connection to the receiver can operate the GYD550.
• Only for Futaba digital servos

GYD550 Ratings:
(Integrated sensor type gyro)

• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC 3.5-8.4 V
• Current drain: 30 mA (excluding a servo)
• Operating temperature range: -10 ºC to +45 ºC
• Dimensions: 22.6 x 19.6 x 11.0 mm (except protrusion)
• Weight: 5.6 g

Functions:

• LED monitor
• Servo selection (SR mode)
• S.BUS/S.BUS2 connection
