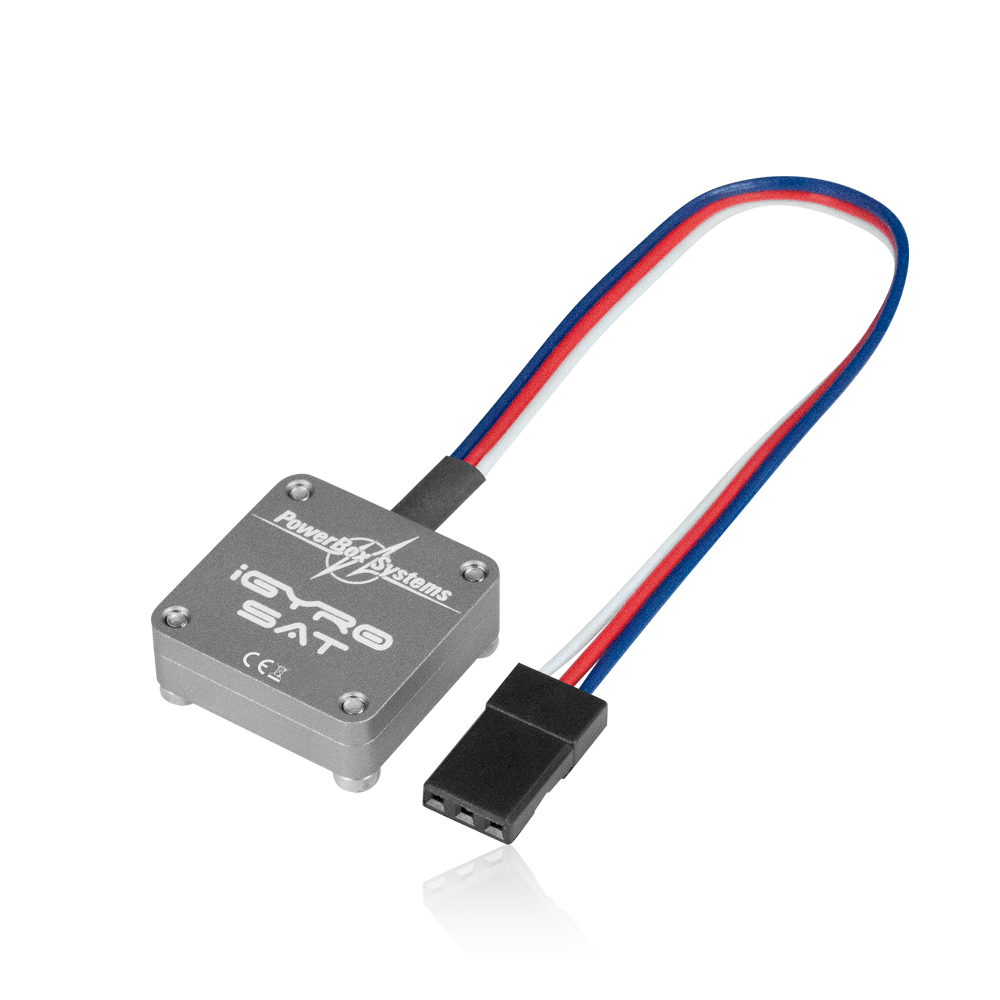

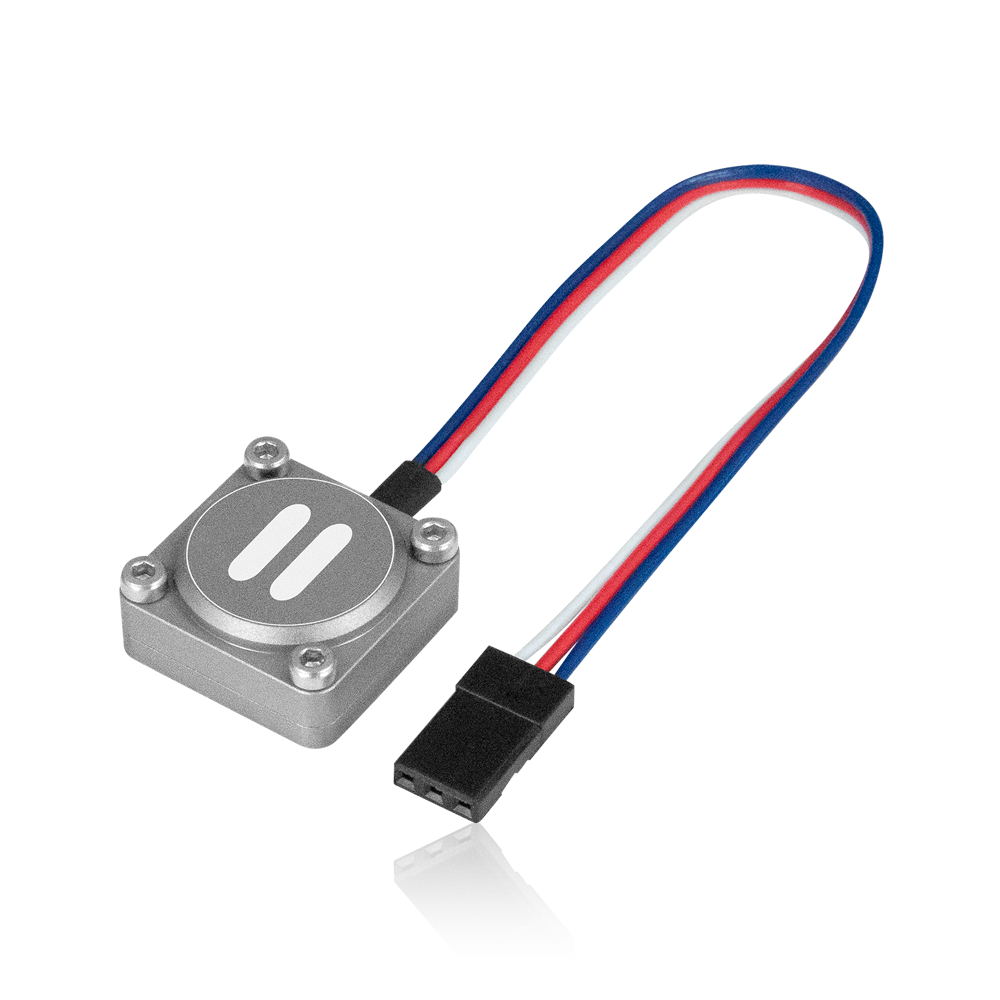

PowerBox 3610 iGyro SAT II
1 265 SEK/styck
The iGyro SAT has been developed specifically to complement the new PowerBox generation with adding an iGyro function to any of them.
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- TextTechnical Data: Operating voltage 4.0V - 9.0V Current drain Power-on state 20mA Maximum load current 20A Signal input FastTrack Bus Servo sockets 5 Servo signal resolution 0,5µs Gyro regulation Heading- and Normalmode Gyro sensor type MEMS Number of sensor axes 3 Dimensions 20 x 20 x 8 mm Weight 7g Temperature range -30°C to +85°C
- VarumärkePowerBox
Beskrivning
Art.nr: MD_3610
The iGyro SAT has been specially developed for the new generation of PowerBox and the PBR receiver series. The iGyro SAT functions as a sensor unit for the iGyro software in the PowerBox Pioneer, Mercury SR2, Competition SR2/SHV, Royal SR2 and the PBR receiver (7S, 9D, 26D, 10SL and 14D). The motion input from the sensors is transferred to the PowerBox or the receiver via the specially developed FastTrack bus. This is where all the calculations take place, and the servos are controlled.
The PowerBox or receiver automatically recognizes a connected iGyro SAT when it is switched on and then provides all the setting functions in the ATOM/CORE or Jeti transmitter. For all other systems, the settings can be adjusted either via PC/USB, Mobile Terminal or directly on the PowerBox display.

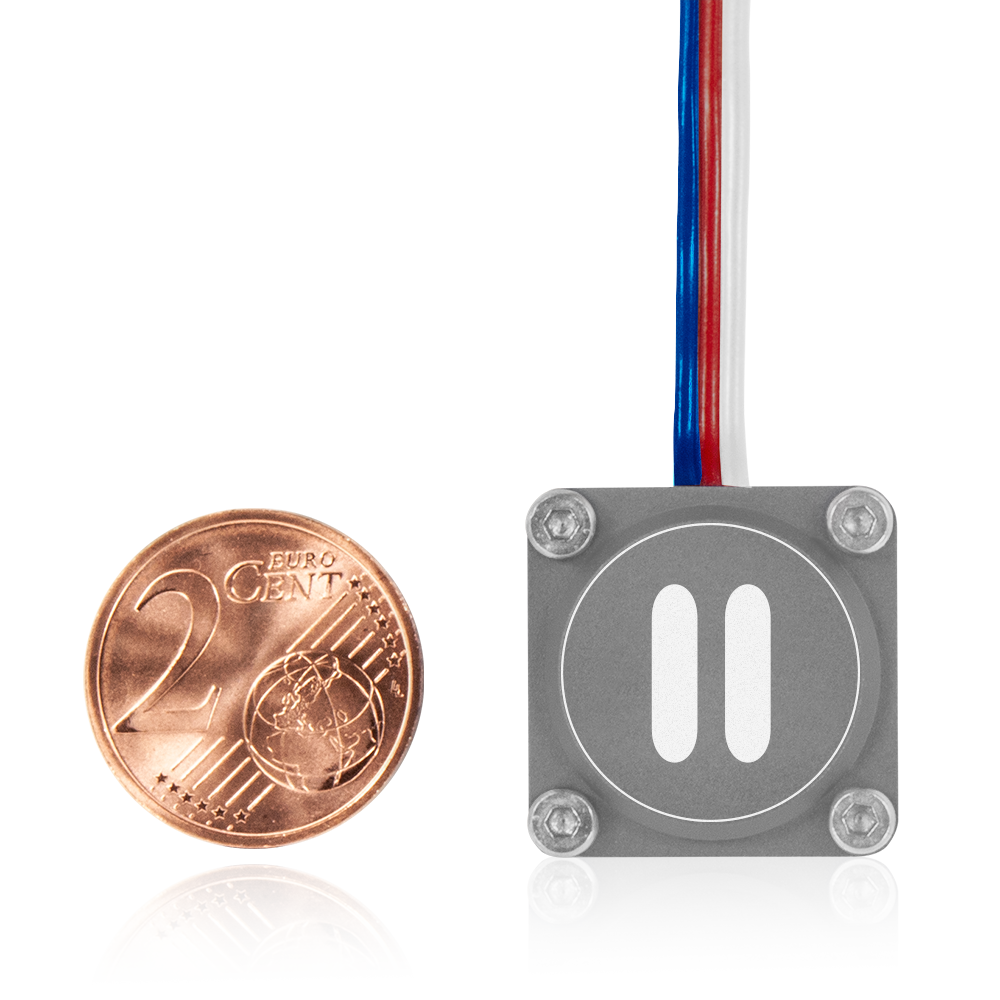

Thanks to its small size, the iGyro SAT can be installed anywhere in the model and the connection cable can be extended as needed.
Unique to PowerBox: In conjunction with the GPS III or the PBS-TAV, the gyro effect can also be controlled depending on the speed.
Version 2 has been delivered since 12/2024, recognizable by the Roman Numeral II on the housing. A new gyro sensor has been implemented here as the earlier generation chip has been discontinued. The gyro performance is identical to its predecessor, both devices are backwards and forwards compatible without having to change any settings. The first version of the iGyro SAT was already extremely resistant to turbine noise, and version II has been completely immunized against this thanks to a special manufacturing process. We would like to take this opportunity to thank our team of test pilots, who have provided important findings through countless tests!
The PowerBox or receiver automatically recognizes a connected iGyro SAT when it is switched on and then provides all the setting functions in the ATOM/CORE or Jeti transmitter. For all other systems, the settings can be adjusted either via PC/USB, Mobile Terminal or directly on the PowerBox display.
Thanks to its small size, the iGyro SAT can be installed anywhere in the model and the connection cable can be extended as needed.
Unique to PowerBox: In conjunction with the GPS III or the PBS-TAV, the gyro effect can also be controlled depending on the speed.
Version 2 has been delivered since 12/2024, recognizable by the Roman Numeral II on the housing. A new gyro sensor has been implemented here as the earlier generation chip has been discontinued. The gyro performance is identical to its predecessor, both devices are backwards and forwards compatible without having to change any settings. The first version of the iGyro SAT was already extremely resistant to turbine noise, and version II has been completely immunized against this thanks to a special manufacturing process. We would like to take this opportunity to thank our team of test pilots, who have provided important findings through countless tests!
| Operating voltage | 4.0V - 9.0V |
| Current drain Power-on state | 20mA |
| Maximum load current | 20A |
| Signal input | FastTrack Bus |
| Servo signal resolution | 0.5µs |
| Gyro sensor type | MEMS |
| Number of sensor axes | 3 |
| Dimensions | 20 x 20 x 8 mm |
| Weight | 7 g |
| Temperature range | -30°C to +85°C |
