PowerBox Mercury SRS w/o GPS
4 195 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- TextTechnical Data Operating voltage 4.0V - 9.0V Power supply 2S LiPo/LiIon, 2S LiFePo, 5S NiCd/NiMH Current drain Power-on state 99mA (with OLED) Current drain Standby 3µA Maximum load current Peak 2x20A Drop-out voltage 0.3V Output voltage 5.9V or 7.4V regulated Signal input serial Supported RC systems PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne Receiver redundancy SRS Channels 15 (18) Servo sockets 15 Programmable servo outputs 15 Servo signal resolution 0.5µs Signal frame rate 12ms, 15ms, 18ms, 21ms Integral gyro system iGyro Gyro regulation Attitude assist and Normalmode Gyro sensor type MEMS Number of sensor axes 6 Screen OLED Integral door sequencer yes Supported telemetry systems P²BUS, S-Bus, M-Link, EX-Tele, DSMX, X-BUS, HoTT Dimensions 93 x 67 x 19 mm Weight 85g Weight Sensor Switch 15g Weight of LCD screen 15g Temperature range -30°C bis +75°C
- VarumärkePowerBox
Beskrivning
Art.nr: MD_4120
Features
- Integral iGyro: Triple-axis gyro system with attitude assist function
- Expanded setup assistant for ultra-simple operation
- Special regulatory algorithm for fixed-wing model aircraft
- Six independent gyro outputs for: 2x ailerons, 2x elevators, 2x rudders
- Special thrust vector support
- GPS-regulated gyro gain
- Extremely accurate six-axis MEMS sensor
- Integral Delta and V-tail mixer
- Door sequencer: freely programmable outputs with set-up assistant
- Servo-Match function: servo centre, end-points and reverse for all 15 servo outputs
- SRS: Serial Receiver System provides the facility to use receivers with serial interface: P²BUS, S-Bus, M-Link, EX-Tele, DSM2/DSMX, X-BUS and HoTT
- Unrestricted channel assignment for all 15 PowerBox outputs
- Graphic OLED screen with 128x64 pixels
- Extremely user-friendly menu-based programming using the SensorSwitch
- 15 channels
- Signal amplification and interference suppression for all 15 outputs
- Flight recorder, recording of lost frames and fail-safe events
- Variable frame rate, range 12ms - 21ms
- 16-bit processors for fast, high-resolution signal processing
- Double-regulated output voltages for receivers and servos
- regulated output voltage 5.9V or 7.4V
- Connection facilities for P²BUS, S-Bus, M-Link, EX-Tele, DSM2/DSMX, X-BUS und HoTT downlink bus systems
- Direct transmission of the battery informations, receiver data and GPS data to the transmitter
- Separate voltage display for each battery
- Minimum value memory alerts the user to voltage collapses
- Large-area heat-sinks for high regulator performance
- Regulator monitoring, regulator error indicator
- Support for four battery types: LiPo/LiIon, NiMh/NiCd, LiFePo
- Suppression of any servo feedback currents which may occur
- Updateable with PowerBox Systems USB Interface or BlueCom adapter

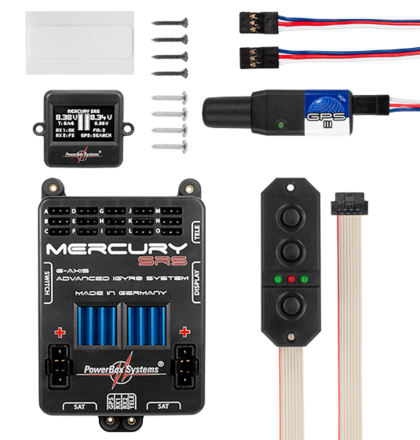

Set contents

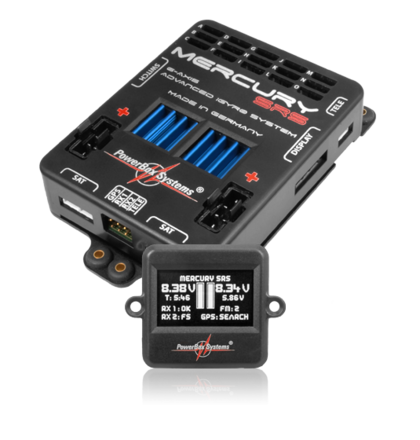

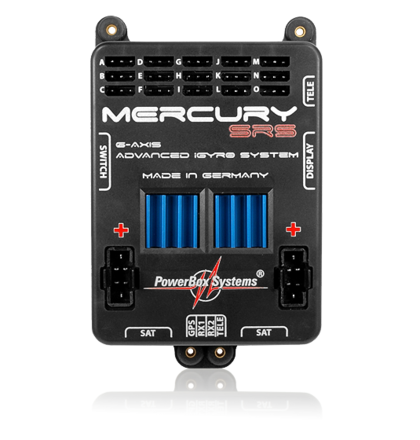

- PowerBox Mercury SRS

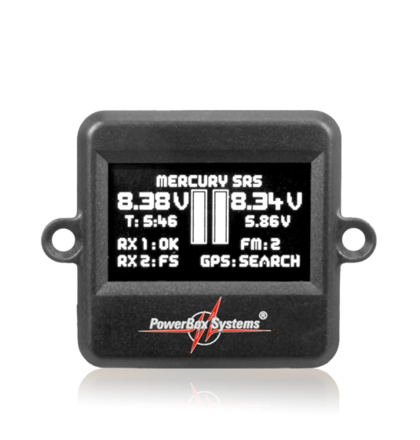

- OLED-Display

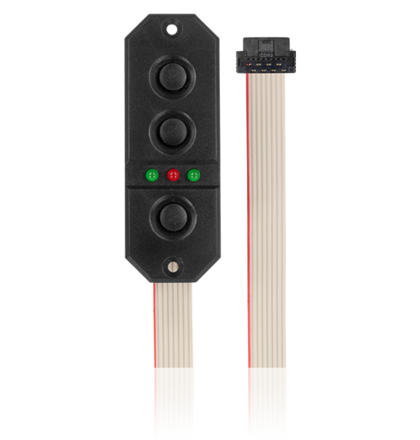

- SensorSwitch
- 3 Patchwires 3-pole, 200mm
- 8 mounting screws
- Operating instructions
- Optional: GPS Sensor (Order No.: 4110)
