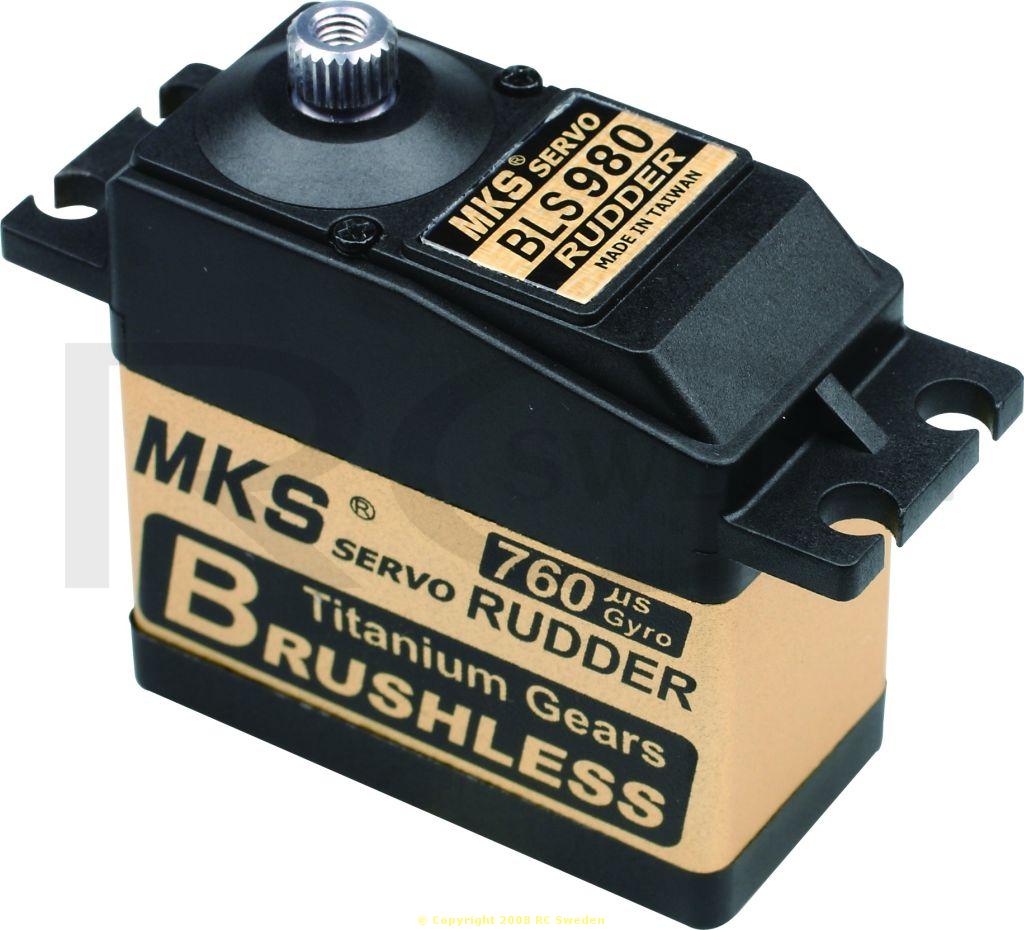

BLS980 (Plastic upper case)
960 SEK/styck
Narrow band tailservo4,8V - 6,0V
0,040 - 0,033s/60°
2,5 - 3.1 kg.cm
Vikt 55,8g
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatMKS
- Servo TypeBrushless
- Dead Band:0.0004ms (Default)
- Control System:+Pulse Width Control
- Working frequence:760µs / 560hz
- (RX) Required Pulse:3.5 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.0 ~6.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.040 sec/60° degrees at no load
- Operating Speed (6.0V):0.033 sec/60° degrees at no load
- Stall Torque (4.8V):2.5 kg.cm (34.7 oz/in)
- Stall Torque (6.0V):3.1 kg.cm (43.0 oz/in)
- 360° Modifiable:NO
- Motor Type:Brushless Motor
- Potentiometer Drive:Indirect Drive
- Bearing Type:Dual Ball Bearings
- Gear Type:Titanium Gears
- Programmable:NO
- Connector Wire Length:24.0 cm (9.4 in)

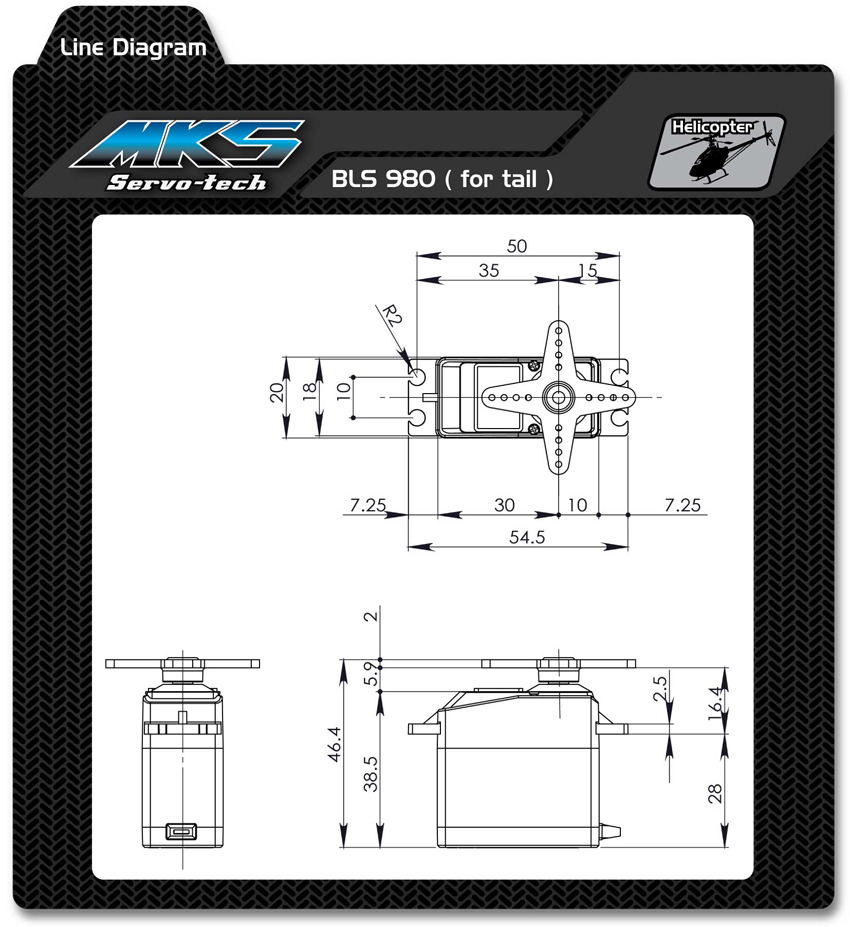

- Dimensions:40x20x40 mm (1.57x0.79x1.50 in)
- Vikt:55.8 g (1.96 oz)
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_S0010002
Test mellan MKS BLS980 & Futaba BLS251: The test is to differentiate from the two brushless servos. The resistance of Futabas is 5.5kg/cm, and of MKSs is more than 15kg/cm. That is, MKS is 2.7 times more than Futaba. With regard to speed, MKS is 1.6 times faster than Futaba.
