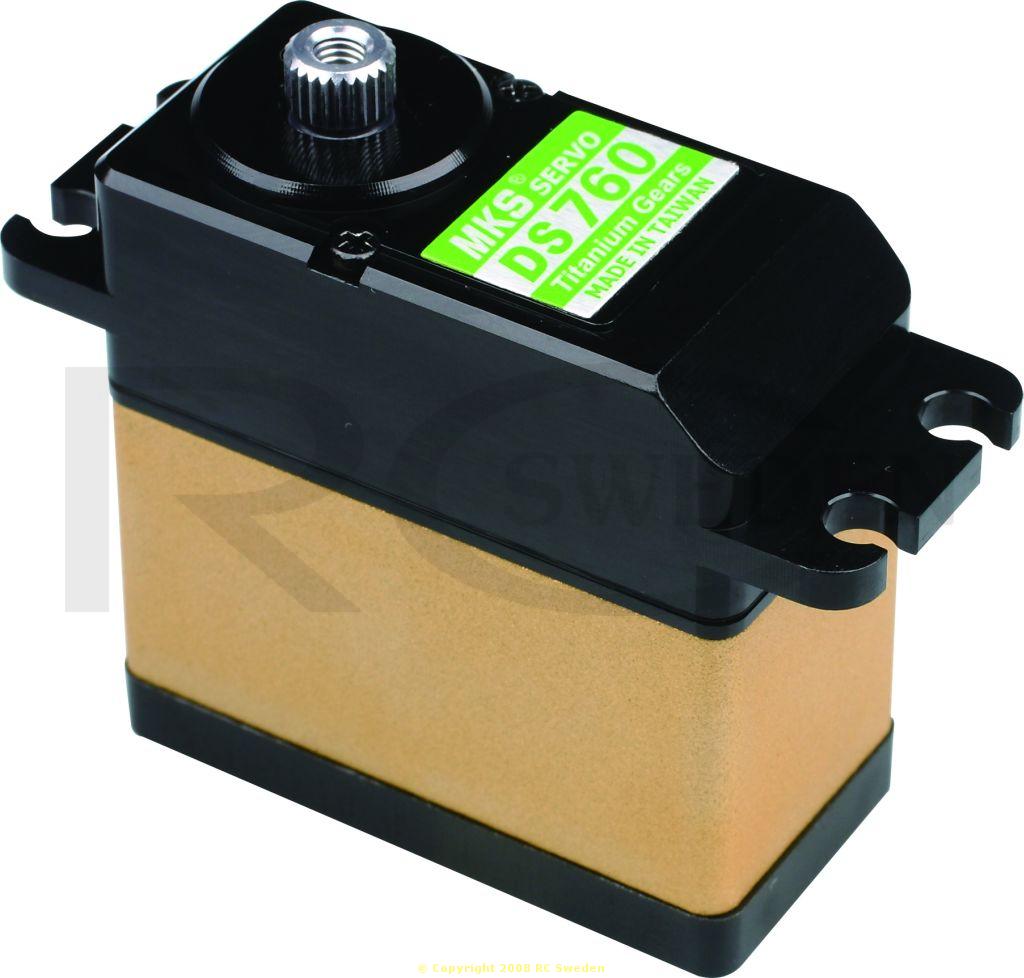

DS760 (Aluminum upper case)
1 070 SEK/styck
Narrow band tailservo4,8V - 6,0V
0,034 - 0,027s/60°
3,9 - 4.9 kg.cm
Vikt 75g
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatMKS
- Servo TypeStandard Digital
- Dead Band:0.001ms (Default)
- Control System:+Pulse Width Control
- Working frequence:760µs / 560hz
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~6.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.034 sec/60° degrees at no load
- Operating Speed (6.0V):0.027 sec/60° degrees at no load
- Stall Torque (4.8V):3.9 kg.cm (54.17 oz/in)
- Stall Torque (6.0V):4.9 kg.cm (67.78 oz/in)
- 360° Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Direct Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Metal Gears
- Programmable:NO
- Connector Wire Length:15.0 cm (5.9 in)

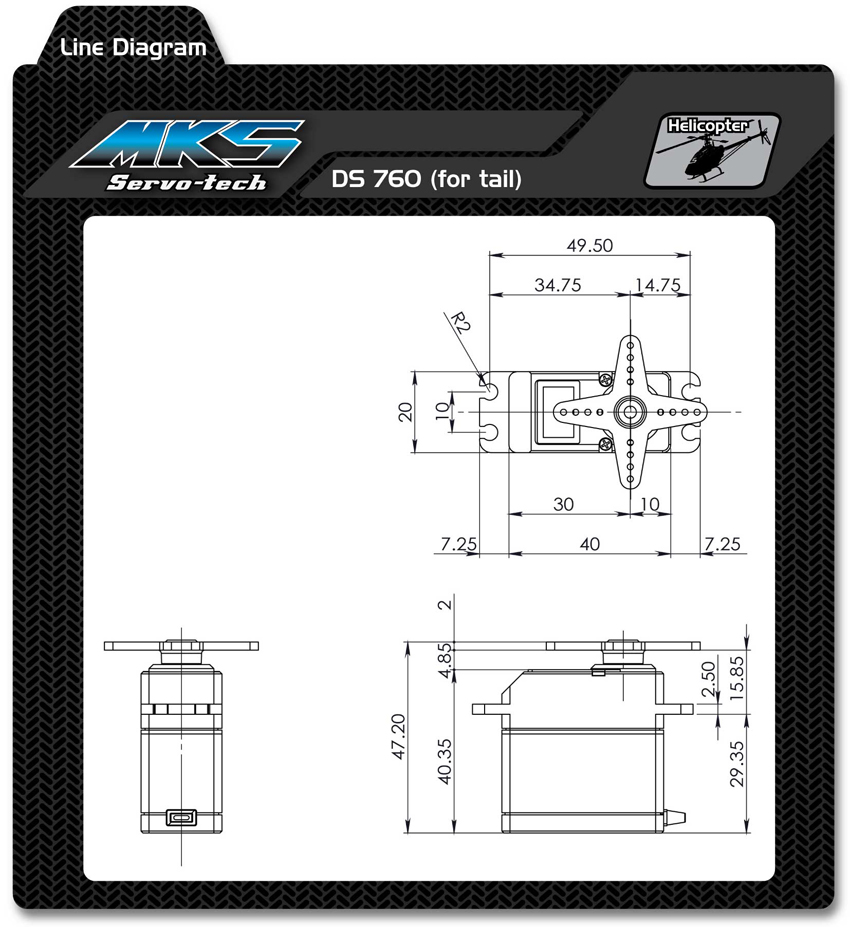

- Dimensions:40x20x40 mm (1.57x0.79x1.57 in)
- Vikt:75 g (2.64oz)
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_S0012002
