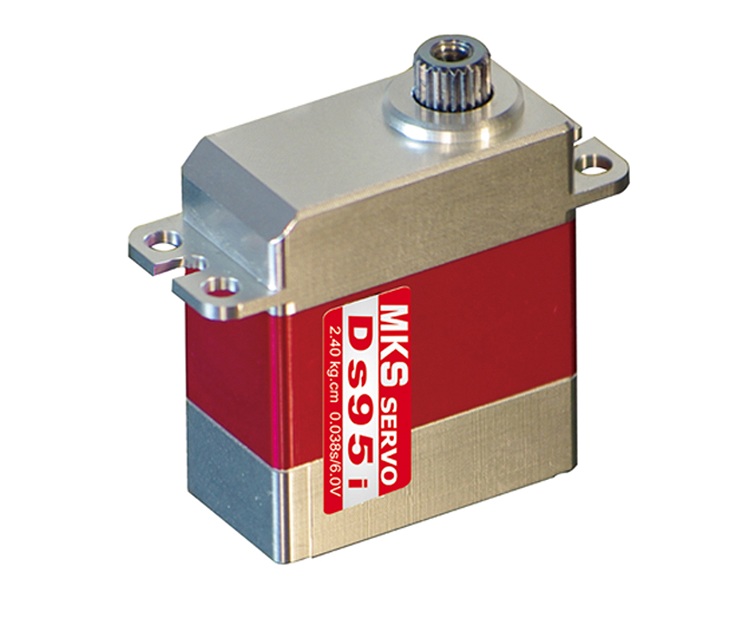

DS95i
855 SEK/styck
Narrow band tailservo4,8V - 6,0V
0,047 - 0,038s/60°
1,92 - 2.40 kg.cm
Vikt 21,21g
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatMKS
- Servo TypeMicro
- Dead Band:0.001ms (Default)
- Control System:+Pulse Width Control
- Working frequence:760µs / 560hz
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~6.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.047 sec/60° degrees at no load
- Operating Speed (6.0V):0.038 sec/60° degrees at no load
- Stall Torque (4.8V):1.92 kg.cm (26.66 oz/in)
- Stall Torque (6.0V):2.40 kg.cm (33.33 oz/in)
- 360° Modifiable:YES
- Motor Type:Coreless Motor
- Potentiometer Drive:Direct Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Chrome-Titanium alloy gear
- Programmable:NO
- Connector Wire Length:20.0 cm (7.86 in)

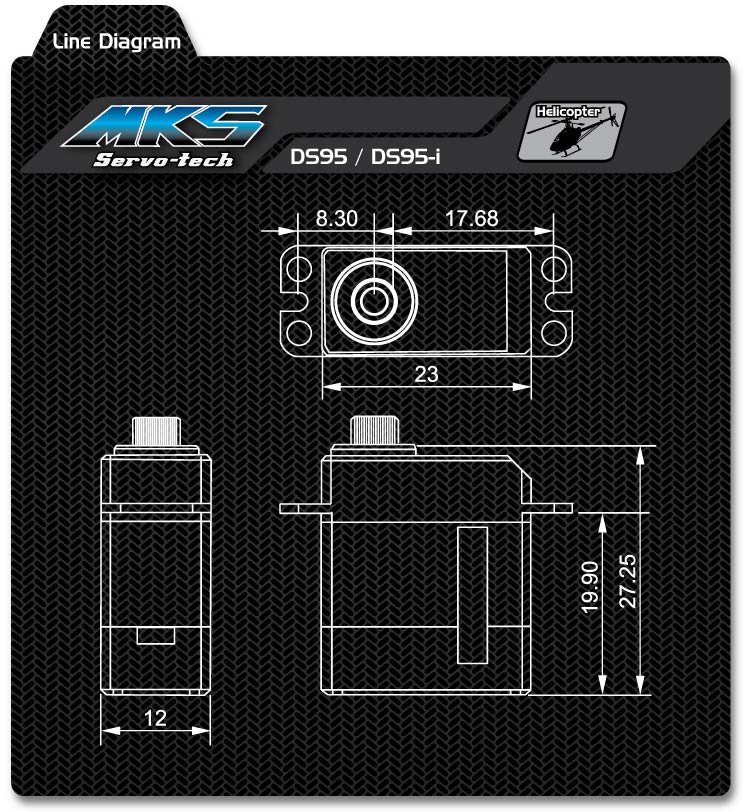

- Dimensions:23x12x27.25 mm (0.90x0.47x1.07 in)
- Vikt:21.21 g (0.74 oz)
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_S0017002
