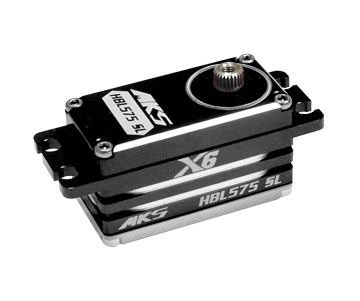

HBL575SL
1 495 SEK/styck
Ultra Torque Servo3,5V - 7,4V
0,07 - 0,10s/60°
10 - 16,8 kg.cm
Vikt 53,51g
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatMKS
- Servo TypeX5-X6 Brushless High Voltage
- Dead Band:0.0008 ms (Default)
- Working frequence:1520µs / 333hz
- Operating Voltage:3.5 ~ 7.4 V DC Volts (Max)
- Operating Speed (4.8V):0.10 s
- Operating Speed (6.0V):0.08 s
- Operating Speed (7,4V):0.07 s
- Stall Torque (4.8V):10 kg.cm
- Stall Torque (6.0V):13,3 kg.cm
- Stall Torque (7,4V):16,8 kg.cm
- Motor Type:Brushless Motor
- Bearing Type:2BB
- Gear Type:Chrome-Titanium alloy gear

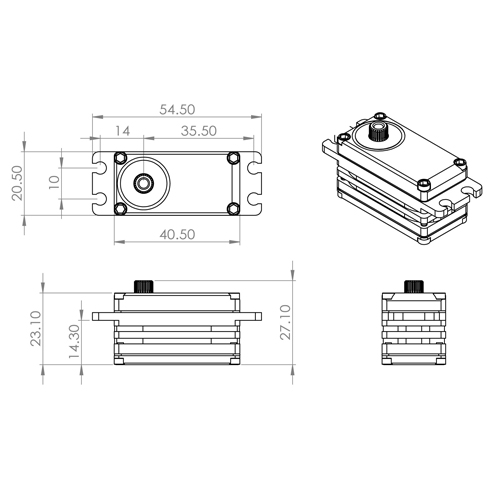

- Dimensions:40x20,5x23,1 mm
- Vikt:53,51 g
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_S0026003
1. För alla servo, vrid inte utgående axel för hand varken när strömmen är på eller av. Detta kan skada elektroniken i servot.
2. Använd endast servo enligt föreskriven spänning.
HBL575-SL - Low Profile Servo
- Ideal for 1/10 surface applications.
- Combining full metal gears, case and amazing speed.
- The low-profile dimensions makes it perfect for any vehicle that is cramped for space.
- CNC Machined Metal Case Design for Exceptional Cooling.
- HD 4096 Resolution, 0.008ms Dead Band.
- Superior Holding Torque, Japanese Brushless Motor.
- High speed, incredible efficiency, and low power consumption than comparable servos.
