Savöx SC-1252MG Servo 7Kg 0,07s Alu Coreless Metalldrev Lågt
879 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatSavöx
- Servo TypeCoreless
- Operating Voltage:6,6 V
- Operating Speed (4.8V):0,08 sek/60°
- Operating Speed (6.0V):0,07 sek/60°
- Stall Torque (4.8V):4,5 kg/cm
- Stall Torque (6.0V):7,0 kg/cm
- Motor Type:Borstlös
- Bearing Type:Dubbla Kullager
- Gear Type:Metall
- Case:Metal

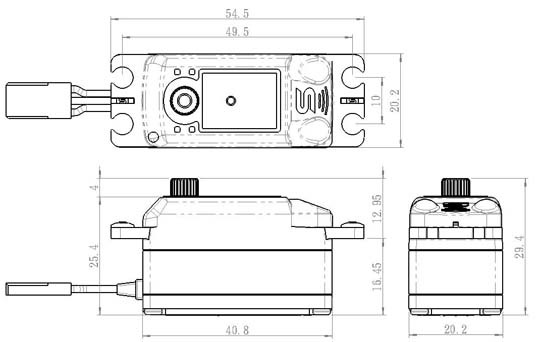

- Dimensions:40,8 x 20,2 x 25,4 mm (L x B x H)
- Vikt:44,5 g
- VarumärkeSavöx
Beskrivning
Art.nr: MC_SAV-SC1252MG
SAVÖX SC-1252MG - Metal-Geared High-Speed Digital Low-Profile Servo
The SC-1252MG is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution. Ideal for 1/10 on-road cars where space is limited and speed is desired.Features:

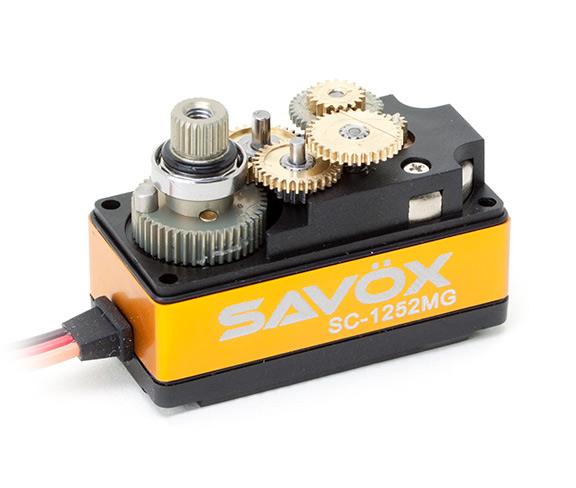

- Metal gear train ensures durability under harsh situations
- Ideal for 1/10 on road vehicles
- Aluminum case provides cooler operating temperatures
Specifications:
- Voltage range: 4.8-6.6V
- Torque @ 4.8V: 4.5kg/62.5oz-in
- Torque @ 6V: 7kg/97.2oz-in
- Speed @ 4.8V: 0.08 sec/60 deg
- Speed @ 6V: 0.07 sec/60 deg
- Dimensions L x W x H: 40.8 x 20.2 x 25.4mm
- Weight: 44.5g
Technical Details:
- Operating Temperature: -10° to 50°C
- Running Current (no load): 150mA @4.8V, 180mA @6.0V
- Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 950 → 2050 µ second
- Maximum Travel: Appx 160° (700 → 2300 µ second)
- Refresh Rate: 240 Hz
- Motor Type: Coreless
