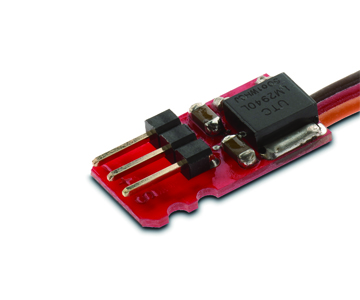

SBEC för DS6125MINI / H / DS6100 / DS75K / DS65K (1.5A)
75 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_O0009002
Function:

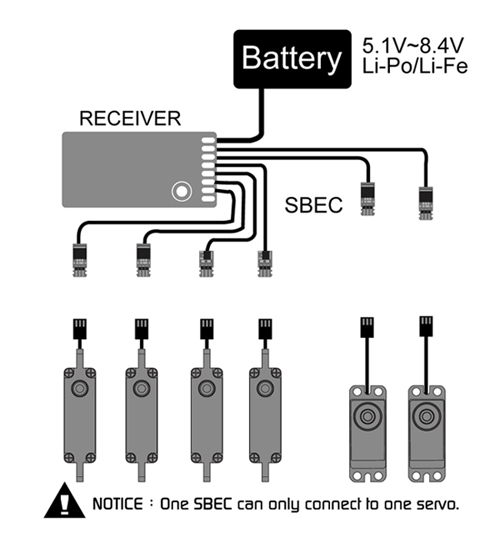

1. A dedicated SBEC per servo can protect the rest of the servos , and the receiver in case of abnormal situation like a servos blocked because of the control surface, or an unlikely malfunction of the servos.
2. Regulating the output current and avoid the servo overloading.
3. When using Lipo 7.2~8.4V, the SBEC can provide stable voltage to the servo.
4. Linear mode; No interference.
1. A dedicated SBEC per servo can protect the rest of the servos , and the receiver in case of abnormal situation like a servos blocked because of the control surface, or an unlikely malfunction of the servos.
2. Regulating the output current and avoid the servo overloading.
3. When using Lipo 7.2~8.4V, the SBEC can provide stable voltage to the servo.
4. Linear mode; No interference.
| Input Voltage: | 5.1 ~ 8.4 V DC Volts |
| Output Voltage: | 5.0V±0.1V |
| Output maximum current: | 1.5A |
| Maximum working temp: | 70 °C |
| Wire lenght: | 12 cm / 7 cm |
| Weight: | 2.45 g |
