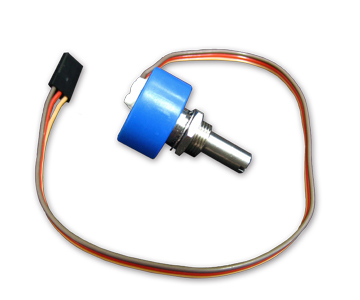

POT-5K-001-25CM
320 SEK/styck
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_P0001001
- Essentially infi nite resolution
- Excellent rotational life
- High quality, rugged construction
- General purpose applications
- Non-standard features available
- Cost and space saving
- Excellent rotational life
- High quality, rugged construction
- General purpose applications
- Non-standard features available
- Cost and space saving
| Standard Resistance Range: | 1 K to 100 K ohms |
| Total Resistance Tolerance: | ±15 % |
| Independent Linearity: | ±2.0 % |
| Effective Electrical Angle: | 340 ° +3 ° |
| End Voltage: | 0.5 % maximum |
| Output Smoothness: | 0.1 % |
| Insulation Resistance (500 VDC): | 500 megohms minimum |
| Resolution: | Essentially infinite |
| Operating Temperature Range: | -40 °C to +125 °C |
| Storage Temperature Range: | -65 °C to +125 °C |
| Over Storage Temperature Range: | ±500 ppm/°C maximum |
