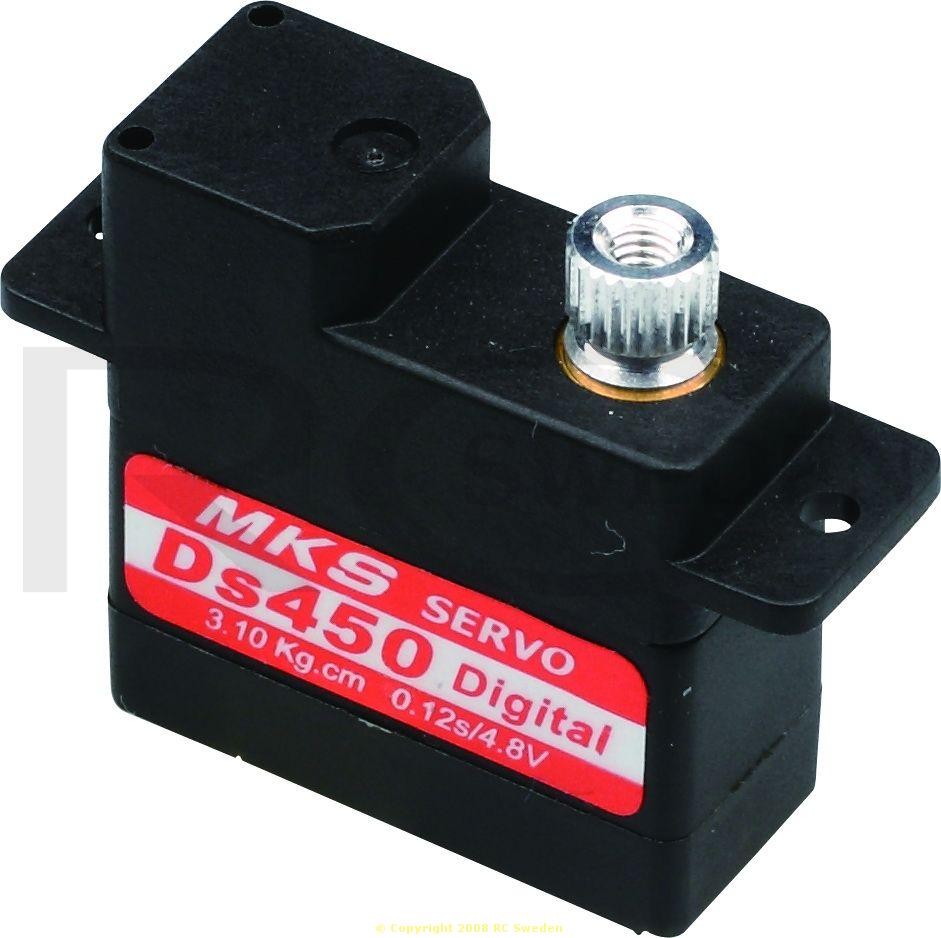

DS450
300 SEK/styck
4,8V - 5,0V0,120 - 0,115s/60°
3,10 - 3.22 kg.cm
Vikt 9,5g
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatMKS
- Servo TypeMicro
- Dead Band:0.002ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.0 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~5.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.120 sec/60° degrees at no load
- Operating Speed (5,0V):0.115 sec/60° degrees at no load
- Stall Torque (4.8V):3.10 kg.cm (43.0 oz/in)
- Stall Torque (5.0V):3.22 kg.cm (44.7 oz/in)
- 360° Modifiable:YES
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:2 Jewel Bearing + 1 Bronze Bushing
- Gear Type:Metal + Aluminum-magnesium alloy Gears
- Programmable:YES
- Connector Wire Length:15.0 cm (5.9 in)

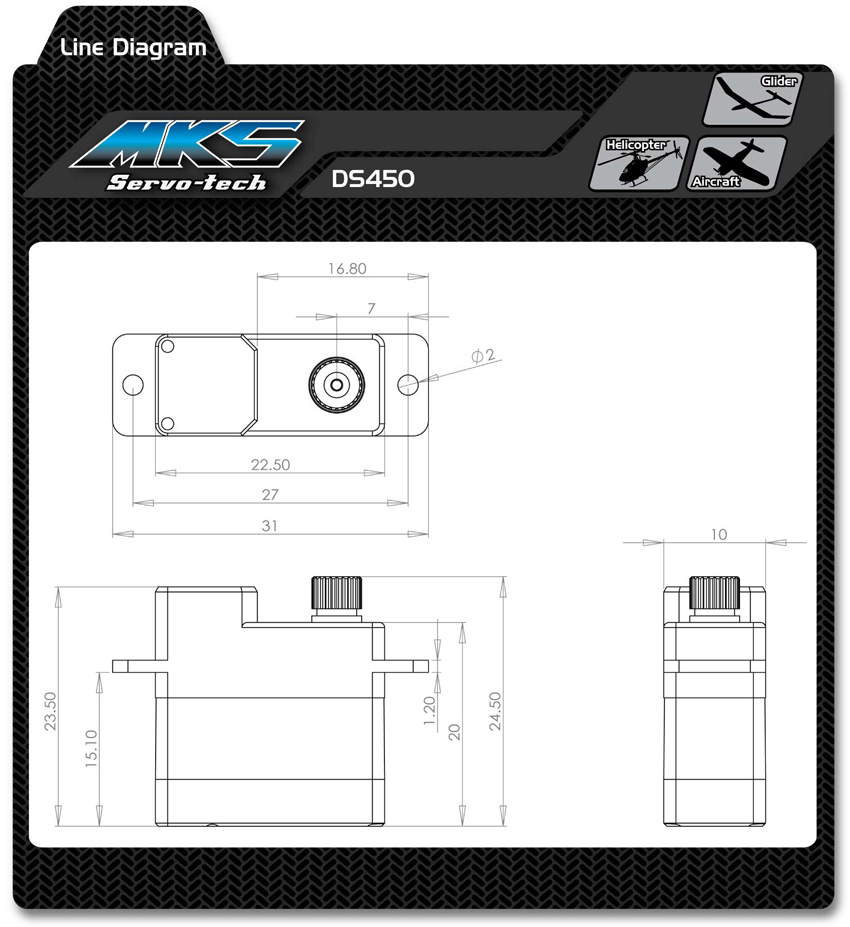

- Dimensions:22.5x10x23.5 mm (0.89x0.39x0.93 in)
- Vikt:9.5 g (0.335 oz)
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_S0009001
