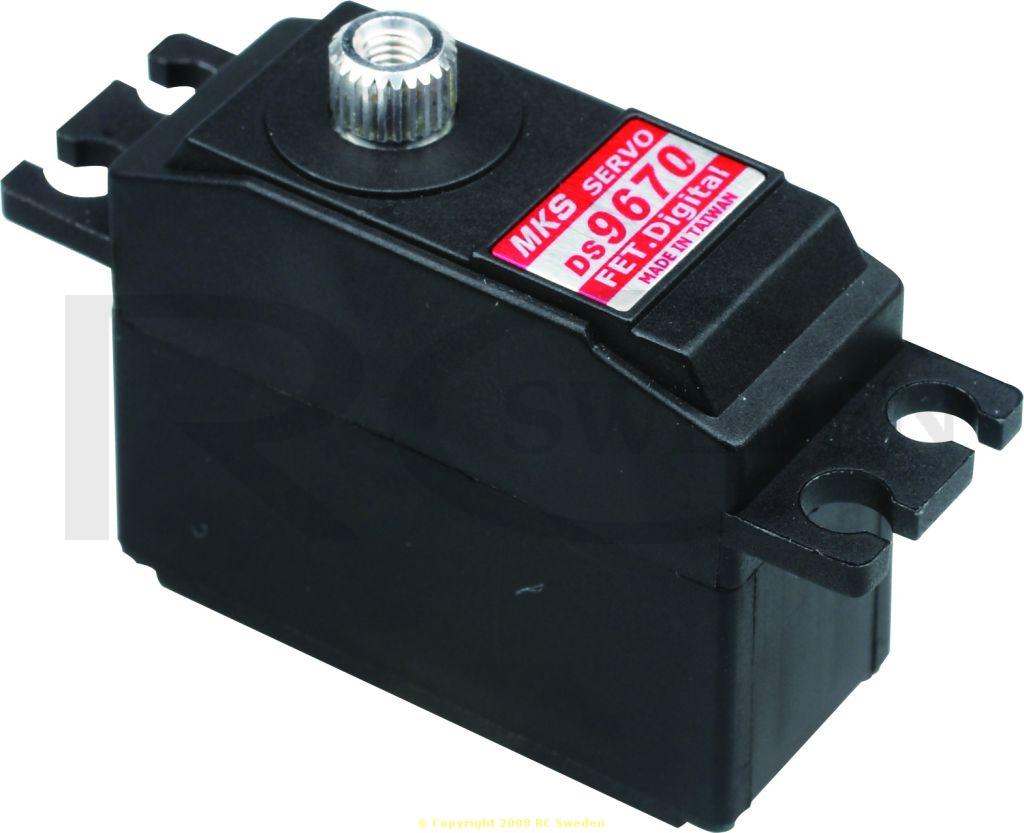

DS9670 Digital Servo
530 SEK/styck
4,8V - 6,0V0,09 - 0,07s/60°
2,22 - 2.80 kg.cm
Vikt 27,5g
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatMKS
- Servo TypeMini
- Dead Band:0.0008ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.0 ~6.0 Volt Peak to Peak Square Wave
- Operating Voltage:4.8 ~6.0 V DC Volts
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (4.8V):0.09 sec/60° degrees at no load
- Operating Speed (6.0V):0.07 sec/60° degrees at no load
- Stall Torque (4.8V):2.22 kg.cm (30.8 oz/in)
- Stall Torque (6.0V):2.80 kg.cm (38.9 oz/in)
- 360° Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:3 Metal Gears + 2 aluminum-alloy Gears
- Programmable:NO
- Connector Wire Length:15.0 cm (5.9 in)

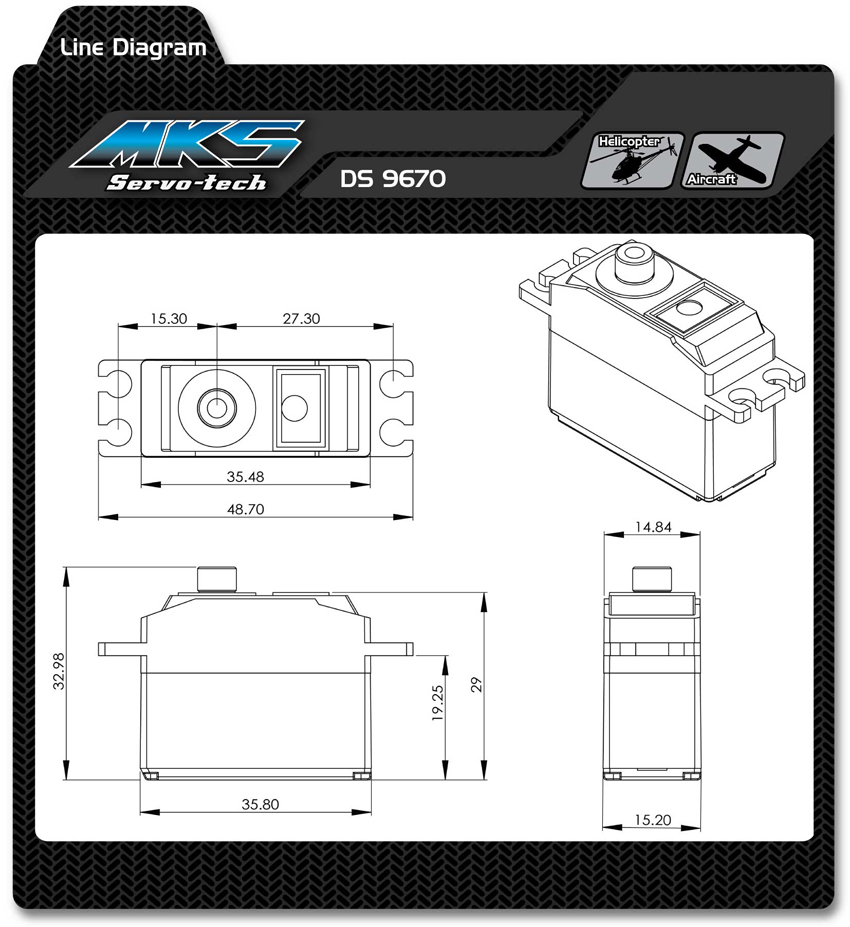

- Dimensions:35.8x15.2x29 mm (1.41x0.6x1.14 in)
- Vikt:27.5 g (0.97 oz)
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_S0008002
