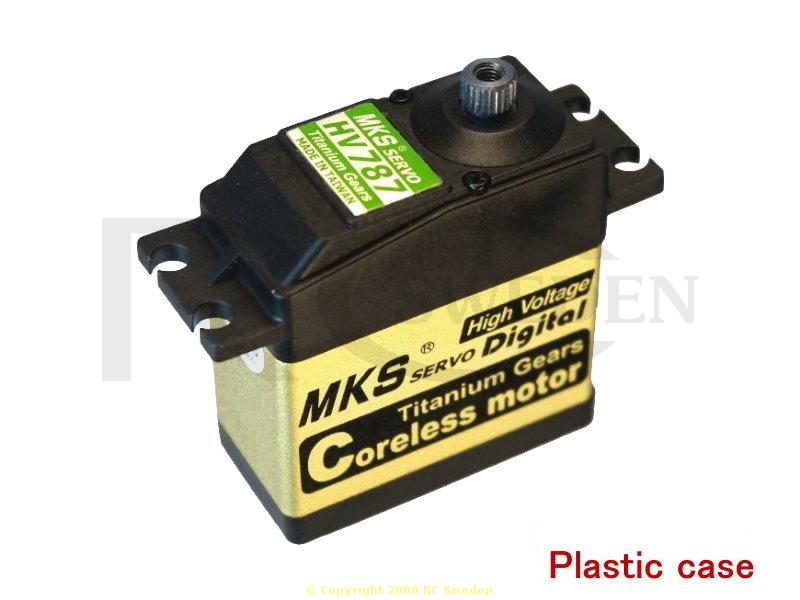

HV787 (Plastic upper case)
6,0V - 7,4V0,041 - 0,033s/60°
6,85 - 8.44 kg.cm
Vikt 67,6g
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
- Snabba leveranser
- Öppet i butik och telefon mellan 9-18 Vardagar samt 10-15 (OBS Ny tid) på Lördagar*, ring +46 (0) 303-776303
* Vi kan vara upptagna, ring igen om vi inte svarar!
- FabrikatMKS
- Servo TypeHigh Voltage
- Dead Band:0.0008ms (Default)
- Control System:+Pulse Width Control
- Working frequence:1520µs / 333hz
- (RX) Required Pulse:3.5 ~7.4 Volt Peak to Peak Square Wave
- Operating Voltage:6.0 ~7.4 V DC Volts (2S LiPo)
- Operating Temperature Range:-10 to + 60 Degree C
- Operating Speed (6.0V):0.041 sec/60° degrees at no load
- Operating Speed (7,4V):0.033 sec/60° degrees at no load
- Stall Torque (6.0V):6.85 kg.cm (95.10 oz/in)
- Stall Torque (7,4V):8.44 kg.cm (117.2 oz/in)
- 360° Modifiable:NO
- Motor Type:Coreless Motor
- Potentiometer Drive:Indirect Drive
- Driver Type:FET
- Bearing Type:Dual Ball Bearings
- Gear Type:Titanium Gears
- Programmable:NO
- Connector Wire Length:15.0 cm (5.9 in)

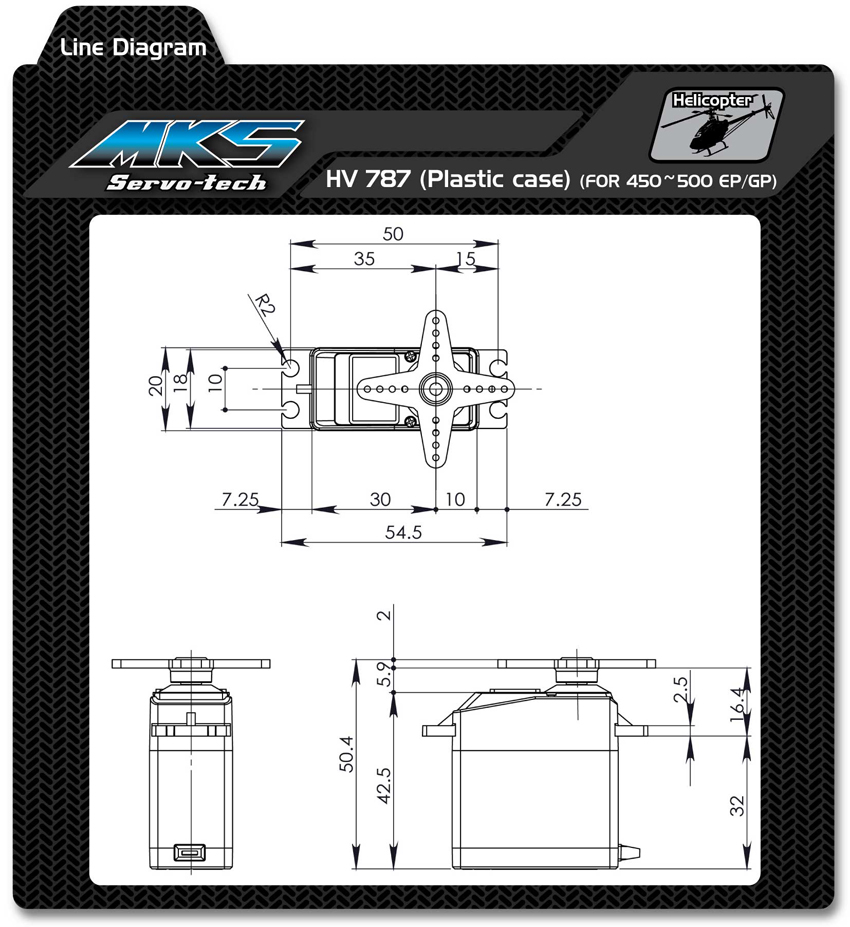

- Dimensions:40x20x43 mm (1.57x0.79x1.69 in)
- Vikt:67.6 g (2.38 oz)
- VarumärkeMKS Servo
Beskrivning
Art.nr: MKS_S0011005
Gjord för 2S LiPo
