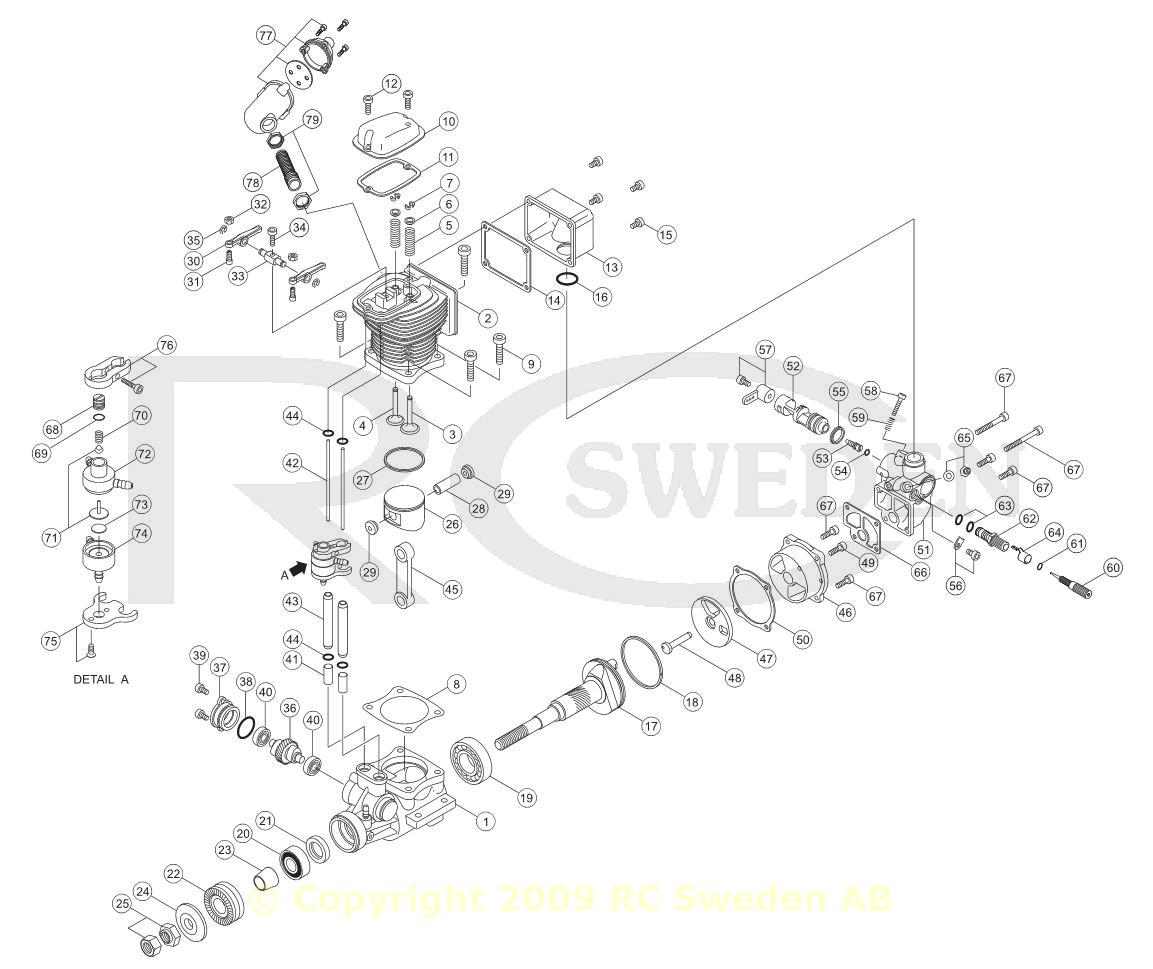

Reservdelslista YS FZ110S
(Klicka på "Artnr" nedan för att komma till produkten)
| # | Artnr | Beskrivning | Antal i förpackning |
|---|---|---|---|
| 1 | YS_F7301 | Crankcase | 1 |
| 2 | YS_F7302A | Cylinder head assembly | |
| 3 | YS_F7302 | Cylinder head | 1 |
| 4 | YS_F9103 | Intake valve | 1 |
| 5 | YS_F9104 | Exhaust valve | 1 |
| 6 | YS_F1209 | Valve spring set | 2 |
| 7 | YS_F9106 | Spring retainer set | 2 |
| 8 | YS_F9107 | Spring retainer clips | 4 |
| 9 | YS_F7308 | Cylinder gasket | 1 |
| 10 | YS_F7309 | Head screws | 4 |
| 11 | YS_F9112 | Valve cover | 1 |
| 12 | YS_F9113 | Valve cover gasket | 1 |
| 13 | YS_F9114 | Valve cover screws | 2 |
| 14 | YS_F9115 | Rear air chamber | 1 |
| 15 | YS_F9116 | Air chamber gasket | 1 |
| 16 | YS_F9117 | Air chamber screws | 4 |
| 17 | YS_F9118 | Air chamber O ring | 1 |
| 18 | YS_F7317 | Crankshaft | 1 |
| 19 | YS_F7318 | Crankshaft ring | 1 |
| 20 | YS_F7319 | Rear bearing | 1 |
| 21 | YS_R6211 | Front bearing | 1 |
| 22 | YS_F9122 | Front bearing oil seal | 1 |
| 23 | YS_F9323 | Drive washar | 1 |
| 24 | YS_F9324 | Drive washar retainer | 1 |
| 25 | YS_F1266 | Propeller washer | 1 |
| 26 | YS_F1267 | Propeller nut set | 2 |
| 27 | YS_F1421 | Piston | 1 |
| 28 | YS_F1224 | Piston ring | 1 |
| 29 | YS_F1222 | Wrist pin | 1 |
| 30 | YS_F1323 | Wrist pin retainer | 2 |
| 31 | YS_F9131 | Rocker arm set | 2 |
| 32 | YS_F1213 | Tappet adjusting screw set | 2 |
| 33 | YS_F1214 | Tappet adjusting nut set | 2 |
| 34 | YS_F9134 | Rocker arm shaft | 1 |
| 35 | YS_F9135 | Rocker arm shaft screw | 1 |
| 36 | YS_F1217 | E ring set | 2 |
| 37 | YS_F1235 | Cam gear | 1 |
| 38 | YS_F9138 | Cam gear cover | 1 |
| 39 | YS_F1233 | Cam gear cover O ring | 1 |
| 40 | YS_F9140 | Cam gear screws | 2 |
| 41 | YS_F1242 | Cam gear bearing set | 2 |
| 42 | YS_F1236 | Cam follower set | 2 |
| 43 | YS_F9143 | Push rods | 2 |
| 44 | YS_F9144 | Push rod covers | 2 |
| 45 | YS_F1239 | Push rod cover O rings | 4 |
| 46 | YS_F7345 | Con rod | 1 |
| 47 | YS_F7346A | Back plate assembly | |
| 48 | YS_F7349 | Disc valve set screw | 1 |
| 49 | YS_F9152 | Back plate gasket | 1 |
| 50 | YS_F7351A | Carburetor assembly | |
| 51 | YS_F9354 | Carburetor body | 1 |
| 52 | YS_F7352 | Throttle valve | 1 |
| 53 | YS_F9156 | Low speed needle valve | 1 |
| 54 | YS_F9157 | Low speed needle valve O ring | 1 |
| 55 | YS_F9358 | Throttle barrel seal | 1 |
| 56 | YS_R6124 | Throttle valve retainer | 1 |
| 57 | YS_F1260S | Throttle arm set | 1 |
| 58 | YS_F1258 | Throttle stop screw | 1 |
| 59 | YS_F1259 | Throttle stop spring | 1 |
| 60 | YS_F1545S | Needle valve assembly | |
| 61 | YS_F1545 | Needle valve | 1 |
| 62 | YS_F1546 | Needle va;ve O ring | 1 |
| 63 | YS_F1555 | Needle valve seat | 1 |
| 64 | YS_F1556 | Needle valve seat O ring | 2 |
| 65 | YS_F1557 | Needle valve detent | 1 |
| 66 | YS_F7365 | Nipple | 1 |
| 67 | YS_F9164 | Carburetor gasket | 1 |
| 68 | YS_F7367 | Carburetor screws | 6 |
| 69 | YS_F7368A | Regulator assembly | |
| 70 | YS_F3168 | Regulator adjusting screw | 1 |
| 71 | YS_F3169 | Regulator adjusting screw O ring | 1 |
| 72 | YS_F3170 | Plunger spring | 1 |
| 73 | YS_F3171 | Plunger | 1 |
| 74 | YS_F3172 | Regulator body A | 1 |
| 75 | YS_F3173 | Diaphram | 1 |
| 76 | YS_F3174 | Regulator body B | 1 |
| 77 | YS_F3175 | Stay lower | 1 |
| 78 | YS_F3176 | Stay upper | 1 |
| 79 | YS_F9377A | Muffler set | |
| 80 | YS_F9377 | Muffler assembly | 1 |
| 81 | YS_F9378 | Exhaust pipe | 1 |
| 82 | YS_F9379 | Rock nuts | 2 |
| 83 | YS_F7390 | Gasket set | 5 |
| 84 | YS_F9391 | O ring set | 11 |
