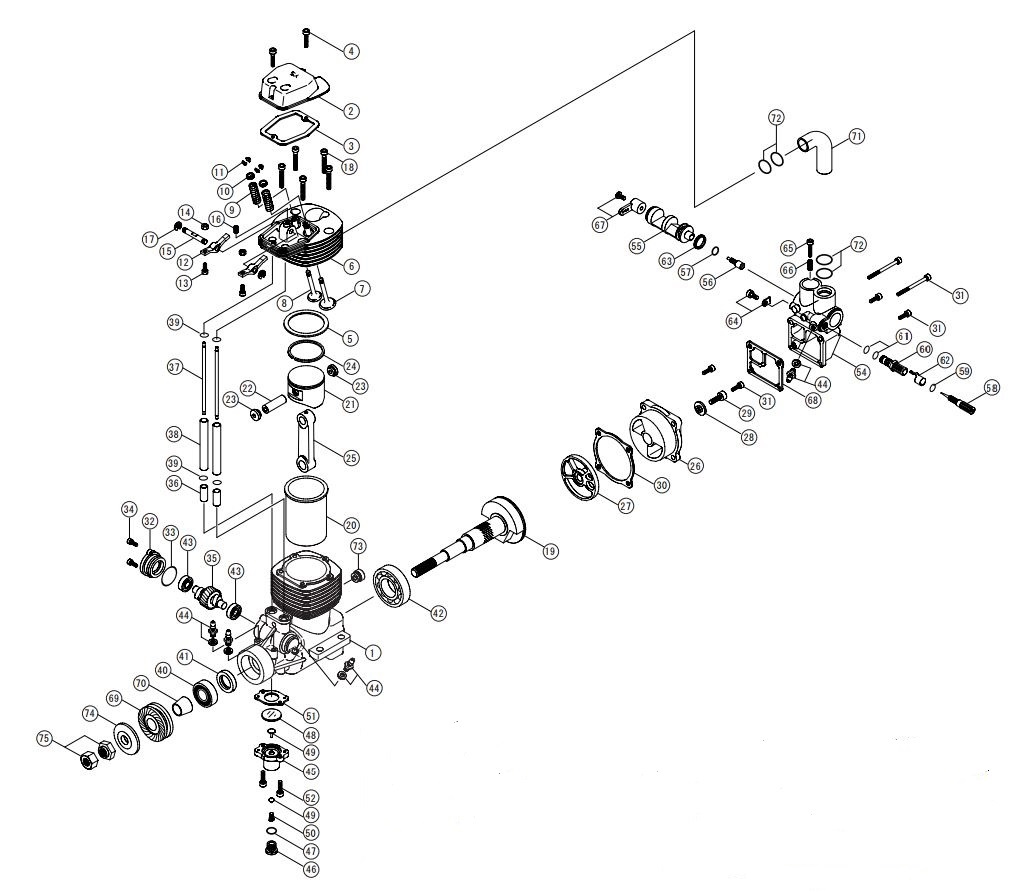

Reservdelslista YS FZ120
(Klicka på "Artnr" nedan för att komma till produkten)
| # | Artnr | Beskrivning | Antal i förpackning |
|---|---|---|---|
| 1 | YS_F1801 | Crankcase | 1 |
| YS_F1202S | Valve cover assembly | ||
| 2 | YS_F1202 | Valve cover | 1 |
| 3 | YS_F1203 | Head cover gasket | 1 |
| 4 | YS_F1204 | Valve cover screw set | 2 |
| 5 | YS_F1205 | Head gasket | 1 |
| YS_F1406A | Cylinder head assy. | ||
| 6 | YS_F1406 | Cylinder head | 1 |
| 7 | YS_F1407 | Intake valve | 1 |
| 8 | YS_F1408 | Exhaust valve | 1 |
| 9 | YS_F1409 | Valve spring set | 2 |
| 10 | YS_F1410 | Spring retainer set | 2 |
| 11 | YS_F1411 | Valve spring retainer clip | 4 |
| 12 | YS_F1212 | Rocker arm set | 2 |
| 13 | YS_F1213 | Tappet adjusting screw set | 2 |
| 14 | YS_F1214 | Tappet adjusting lock nuts | 2 |
| 15 | YS_F1215 | Rocker arm shaft | 1 |
| 16 | YS_F1216 | Rocker arm shaft screw | 1 |
| 17 | YS_F1217 | E ring set | 2 |
| 18 | YS_F1218 | Head screws | 5 |
| 19 | YS_F1919 | Crankshaft | 1 |
| 20 | YS_F1220 | Cylinder liner | 1 |
| 21 | YS_F1421 | Piston | 1 |
| 22 | YS_F1222 | Wrist pin | 1 |
| 23 | YS_F1323 | Wrist pin retainer | 2 |
| 24 | YS_F1224 | Piston ring | 1 |
| 25 | YS_F1225 | Connecting rod | 1 |
| YS_F1826A | Back plate assy. | ||
| 26 | YS_F1826 | Back plate | 1 |
| 27 | YS_F1427 | Disc valve | 1 |
| 28 | YS_F1492 | Rear disc valve retainer | 1 |
| 29 | YS_F1429 | Retainer screw | 1 |
| 30 | YS_F1230 | Back plate gasket | 1 |
| 31 | YS_F1539 | Back plate screws set | 4 |
| 32 | YS_F1232 | Cam gear cover | 1 |
| 33 | YS_F1233 | Cam gear cover O-ring | 1 |
| 34 | YS_F1234 | Cam gear cover screws set | 2 |
| 35 | YS_F1535 | Cam gear | 1 |
| 36 | YS_F1236 | Cam followers set | 2 |
| 37 | YS_F1237 | Push rod set | 2 |
| 38 | YS_F1238 | Push rod cover set | 2 |
| 39 | YS_F1239 | Push rod cover O-ring | 4 |
| 40 | YS_R6211 | Front bearing | 1 |
| 41 | YS_F9122 | Front bearing oil seal | 1 |
| 42 | YS_F1341 | Rear bearing | 1 |
| 43 | YS_F1242 | Cam gear bearing set | 2 |
| 44 | YS_F1243 | Fuel nipples | 4 |
| YS_F1244A | Regulator assembly | ||
| 45 | YS_F1244 | Regulator body | 1 |
| 46 | YS_F1245 | Regulator adjusting screw | 1 |
| 47 | YS_F1246 | Regulator adjusting screw O-ring | 1 |
| 48 | YS_F1247 | Diaphram | 1 |
| 49 | YS_F1248 | Regulator plunger | 1 |
| 50 | YS_F1249 | Plunger spring | 1 |
| 51 | YS_F1250 | Regulator gasket | 1 |
| 52 | YS_F1251 | Regulator screws set | 2 |
| YS_F1752A | Carburetor assembly | ||
| 54 | YS_F1752 | Carburetor body | 1 |
| 55 | YS_F1753 | Throttle barrel | 1 |
| 56 | YS_F9156 | Low speed needle valve | 1 |
| 57 | YS_F9157 | Low speed needle valve O-ring | 1 |
| YS_F1545S | Needle valve assembly | ||
| 58 | YS_F1545 | Needle valve | 1 |
| 59 | YS_F1546 | High speed needle valve O-ring | |
| 60 | YS_F1555 | Needle valve socket | 1 |
| 61 | YS_F1556 | Needle valve socket O-ring set | 2 |
| 62 | YS_F1557 | Needle valve detent spring | 1 |
| 63 | YS_F1483 | Throttle barrel seal | |
| 64 | YS_R6124 | Throttole barrel retainer | 1 |
| 65 | YS_F1258 | Throttle stop screw | 1 |
| 66 | YS_F1259 | Throttle stop spring | 1 |
| 67 | YS_F1260S | Throttle arm set. | 1 |
| 68 | YS_F1463 | Carburetor gasket | 1 |
| 69 | YS_F1564 | Drive washer | 1 |
| 70 | YS_F1565 | Drive washer retainer | 1 |
| 71 | YS_F1268 | Intake pipe | 1 |
| 72 | YS_F1269 | Intake pipe O-ring | 4 |
| 73 | YS_F1382 | Wrist pin access plug | 1 |
| YS_F1473S | Gasket set | 4 | |
| YS_F1574S | O-ring set | 13 | |
| 74 | YS_F1266 | Propeller washer | 1 |
| 75 | YS_F1267 | Propeller nut set | 2 |
| YS_F2597S | Muffler assembly | ||
| YS_F1497 | Muffler | 1 | |
| YS_F1971 | Lock nut | 1 | |
| YS_F1498 | Exhaust pipe | 1 |
