RC Sweden AB - YS 56SR

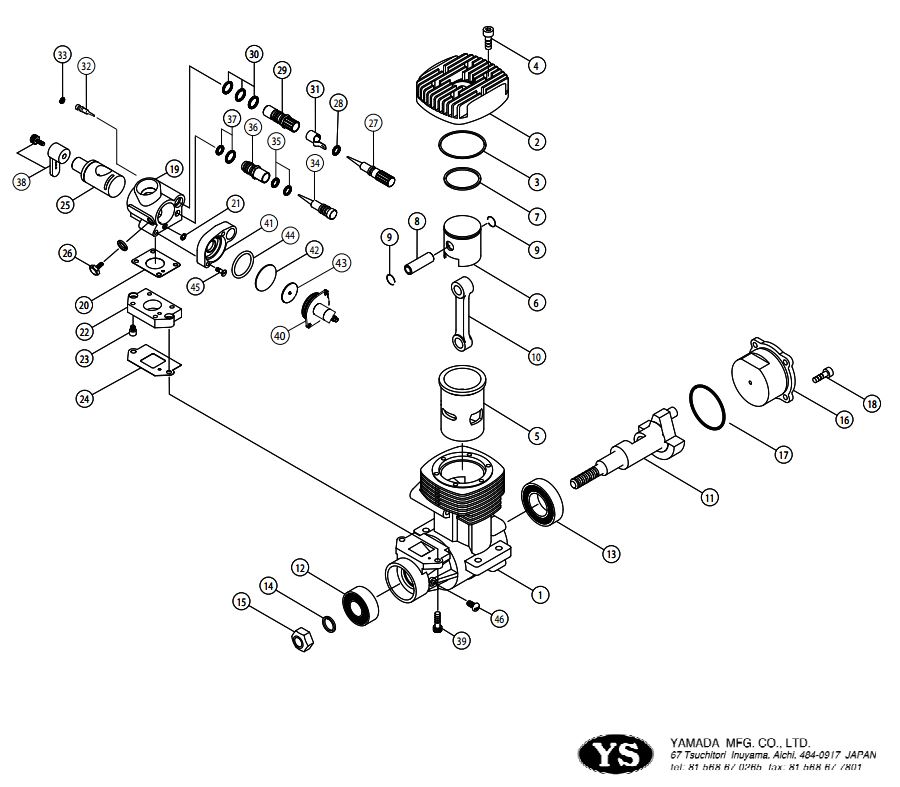

Reservdelslista YS 56SR

(Klicka på "Artnr" nedan för att komma till produkten)

#	Artnr	Beskrivning	Antal i förpackning
1	YS_S2001	Crankcase	1
2	YS_S2002	Cylinder head	1
3	YS_S2003	Head gasket	1
4	YS_S1004	Head set screws	6
	YS_S2005S	Liner and piston set
5	YS_S2005	Liner	1
6	YS_S2006	Piston	1
7	YS_S2007	Piston ring	1
8	YS_S1008	Wrist pin	1
9	YS_S2009	Wrist pin retainers	2
10	YS_S1010	Con rod	1
11	YS_S2011	Crankshaft	1
12	YS_R6211	Front bearing	1
13	YS_S1013	Rear bearing	1
14	YS_S1014	Drive washer spacer	1
15	YS_S1015	Prop nut	1
16	YS_S2016	Back plate	1
17	YS_S1017	Back plate O ring	1
18	YS_S1018	Back plate set screws	4
19	YS_S2019	Carbretor body	1
20	YS_S1020	Carburetor gasket	1
21	YS_S2021	Carburetor O ring	3
22	YS_S1022	Carburetor insulator	1
23	YS_S2023	Insulator set screws	4
24	YS_S1024	Insulator gasket	1
25	YS_S2025	Throttle barrel	1
26	YS_S2026	Throttle barrel retainer screw	1
	YS_S1027S	Hover needle set
27	YS_S1027	Hover needle	1
28	YS_F1546	Needle valve O ring	1
29	YS_S1029	Hover needle socket	1
30	YS_S1030	Hover needle socket O rings	3
31	YS_F1557	Needle valve detent	1
32	YS_S5131	Idling needle	1
33	YS_S8133	Idling needle O ring	1
34	YS_S2048	High needle	1
35	YS_S2051	High needle O ring	2
36	YS_S2049	High needle socket	1
37	YS_S2050	High needle socket O ring	2
38	YS_F1260S	Throttle arm set	1
39	YS_S2035	Carburetor screws	2
40	YS_S2036	Regulator body A	1
41	YS_S2037	Regulator body B	1
42	YS_S1038	Diaghram	2
43	YS_S1049	Regulatort valve	1
44	YS_S1041	Regulator O ring	1
45	YS_S1044	Regulator set screws	2
46	YS_S1045	Plug	1
	YS_S7144	Check valve	1
	YS_S1046	Gasket set	2
	YS_S2047	O ring set	14
