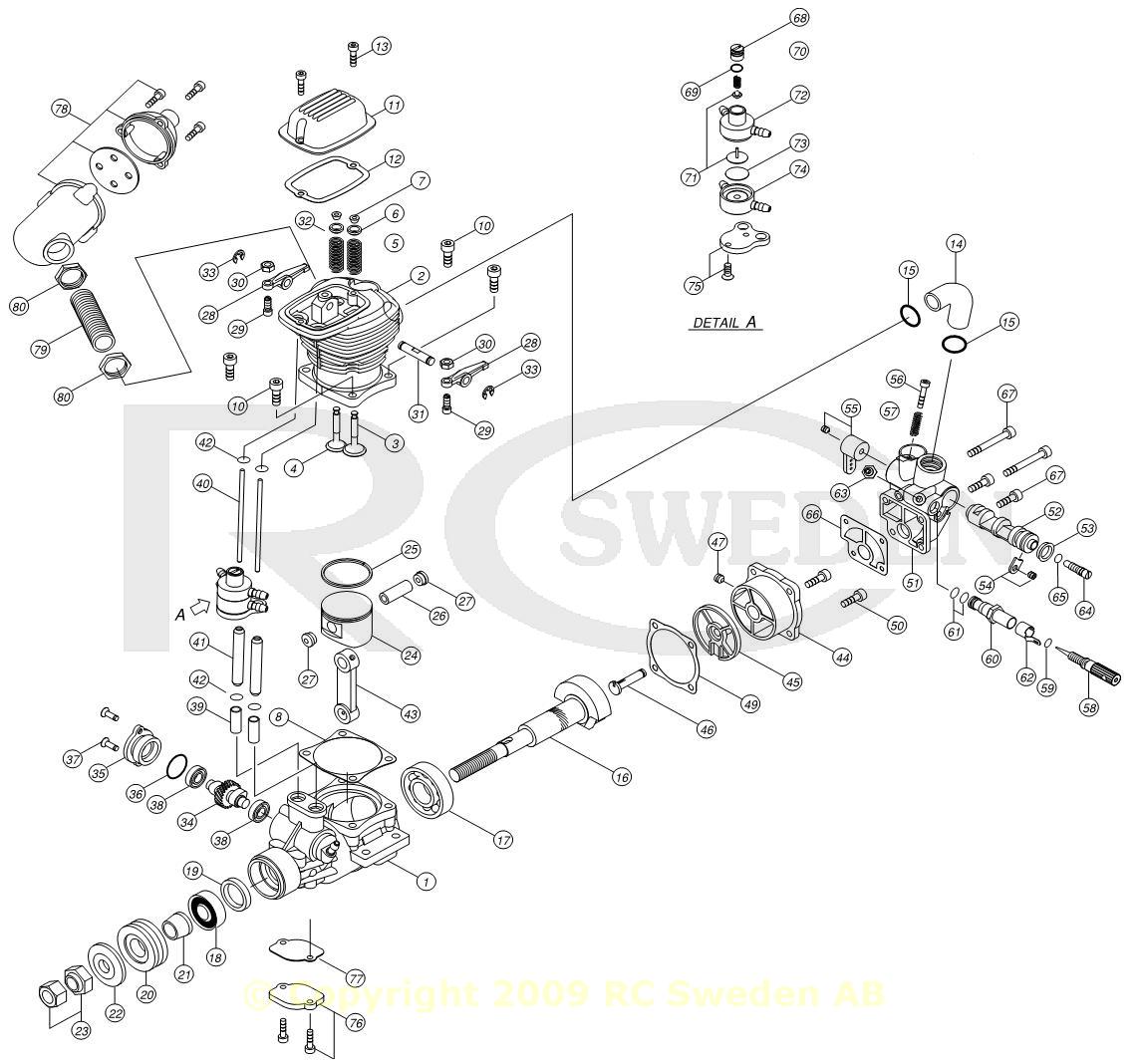

Reservdelslista YS FZ63S
(Klicka på "Artnr" nedan för att komma till produkten)
| # | Artnr | Beskrivning | Antal i förpackning |
|---|---|---|---|
| 1 | YS_F3101 | Crank case | 1 |
| YS_F3102A | Cylinder head assembly | ||
| 2 | YS_F3102 | Cylinder head with liner | 1 |
| 3 | YS_F5103 | Intake valve | 1 |
| 4 | YS_F5104 | Exhaust valve | 1 |
| 5 | YS_F5105 | Valve spring set | 2 |
| 6 | YS_F9106 | Spring retainer set | 2 |
| 7 | YS_F9107 | Valve spring clips | 4 |
| 8 | YS_F3108 | Cylinder head seal | 1 |
| 10 | YS_F5110 | Head bolt set | 4 |
| 11 | YS_F5111 | Valve cover | 1 |
| 12 | YS_F5112 | Valve cover gasket | 1 |
| 13 | YS_F5113 | Valve cover screws | 2 |
| 14 | YS_F5114 | Intake pipe | 1 |
| 15 | YS_F5115 | Intake O rings | 2 |
| 16 | YS_F6116 | Crankshaft | 1 |
| 17 | YS_F5117 | Rear bearing | 1 |
| 18 | YS_F5118 | Front bearing | 1 |
| 19 | YS_F5119 | Front bearing seal | 1 |
| 20 | YS_F5120 | Drive washer | 1 |
| 21 | YS_F5121 | Drive washer retainer | 1 |
| 22 | YS_F1266 | Prop washer | 1 |
| 23 | YS_F1267 | Prop nut set | 2 |
| 24 | YS_F3124 | Piston | 1 |
| 25 | YS_F6125 | Piston ring | 1 |
| 26 | YS_F6126 | Wrist pin | 1 |
| 27 | YS_F5127 | Wrist pin retainer | 2 |
| 28 | YS_F5128 | Rocker arm set | 2 |
| 29 | YS_F1213 | Valve adjuster set | 2 |
| 30 | YS_F1214 | Adjuster nut set | 2 |
| 31 | YS_F5131 | Rocker arm shaft | 1 |
| 32 | YS_F5132 | Rocker arm screw | 1 |
| 33 | YS_F1217 | E ring clip set | 2 |
| 34 | YS_F5134 | Cam | 1 |
| 35 | YS_F5135 | Cam cover | 1 |
| 36 | YS_F5136 | Cam cover O-ring | 1 |
| 37 | YS_F5137 | Cam gear cover screws | 2 |
| 38 | YS_F5138 | Cam bearing set | 2 |
| 39 | YS_F5139 | Cam follower set | 2 |
| 40 | YS_F5140 | Push rod set | 2 |
| 41 | YS_F5141 | Push rod cover set | 2 |
| 42 | YS_F5142 | Push rod cover O ring | 4 |
| 43 | YS_F5143 | Con rod | 1 |
| YS_F5144A | Back plate assembly | ||
| 44 | YS_F5144 | Back plate | 1 |
| 45 | YS_F5145 | Disc valve | 1 |
| 46 | YS_F5146 | Disc valve pin | 1 |
| 47 | YS_F1229 | Disc valve set screw | 1 |
| 49 | YS_F5149 | Back plate gasket | 1 |
| 50 | YS_F5150 | Back plate screws | 2 |
| YS_F5151A | Carburetor assembly | ||
| 51 | YS_F5151 | Carburetor body | 1 |
| 52 | YS_F5252 | Throttle barrel | 1 |
| 53 | YS_F5153 | Throttole barrel seal | 1 |
| 54 | YS_R6124 | Throttle barrel retainer | 1 |
| 55 | YS_F1260S | Throttle arm set | 1 |
| 56 | YS_F1258 | Throttle stop screw | 1 |
| 57 | YS_F1259 | Throttle stop spring | 1 |
| YS_F5158S | Needle valve assembly | ||
| 58 | YS_F5158 | Needle valve | 1 |
| 59 | YS_F1546 | Needle O ring | 1 |
| 60 | YS_F1555 | Needle socket | 1 |
| 61 | YS_F1256 | Needle socket O ring | 2 |
| 62 | YS_F1557 | Needle detent | 1 |
| 63 | YS_F5163 | Fuel nipple | 1 |
| 64 | YS_F5186 | Low speed needle | 1 |
| 65 | YS_F5187 | Low speed needle O ring | 1 |
| 66 | YS_F5164 | Carburetor gasket | 1 |
| 67 | YS_F5165 | Carburetor screws | 4 |
| YS_F3168A | Regulator assembly | ||
| 68 | YS_F3168 | Regulator adjusting screw | 1 |
| 69 | YS_F3169 | Regulator adjusting screw O-ring | 1 |
| 70 | YS_F3170 | Plunger spring | 1 |
| 71 | YS_F3171 | Plunger | 1 |
| 72 | YS_F3172 | Regulator body A | 1 |
| 73 | YS_F3173 | Diaphram | 1 |
| 74 | YS_F3174 | Regulator body B | 1 |
| 75 | YS_F3175 | Regulator bracket set | 1 |
| 76 | YS_F3176 | Under cover set | 1 |
| 77 | YS_F3177 | Under cover gasket | 1 |
| YS_F5173S | Muffler set | ||
| 78 | YS_F5173A | Muffler assembly | 1 |
| 79 | YS_F5174 | Exhaust pipe | 1 |
| 80 | YS_F5175 | Rock nuts | 2 |
| YS_F3180 | Gasket set | 4 | |
| YS_F3181 | O ring set | 11 |
