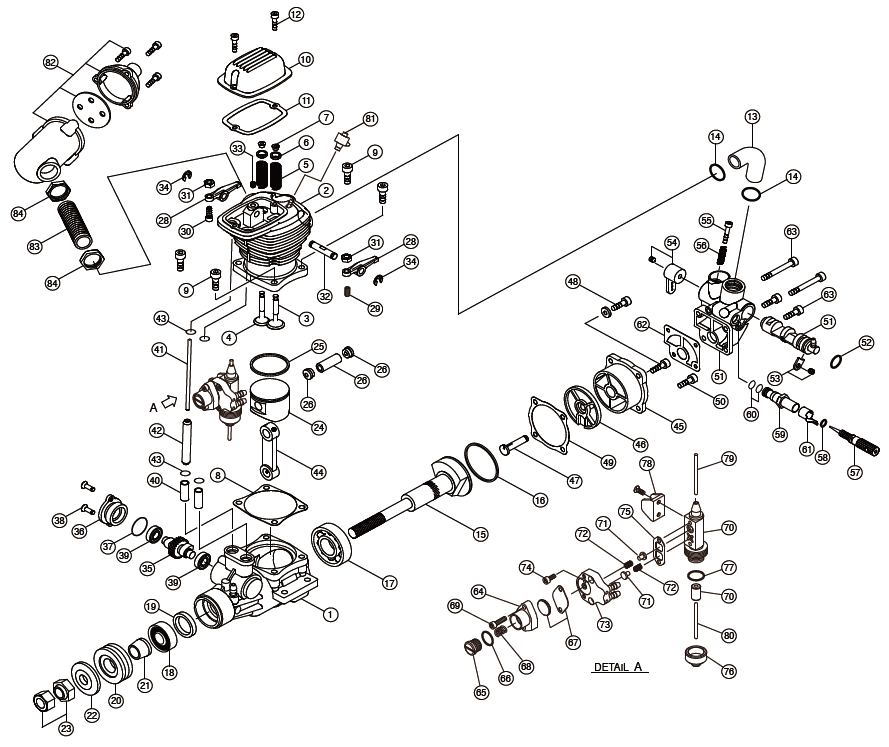

Reservdelslista YS DZ70
| # | Artnr | Beskrivning | Antal i förpackning |
|---|---|---|---|
| 1 | YS_G7001 | YS6865 | Crank case |
| YS_G7002S | YS6870 | Cylinder head assembly | |
| 2 | YS_G7002 | YS6875 | Cylinder head with liner |
| 3 | YS_F5103 | YS2810 | Intake valve |
| 4 | YS_F5104 | YS2815 | Exhaust valve |
| 5 | YS_F5105 | YS2820 | Valve spring set |
| 6 | YS_F9106 | YS2030 | Spring retainer set |
| 7 | YS_F9107 | YS2040 | Valve spring clips |
| 8 | YS_F3108 | YS5015 | Cylinder head gasket |
| 9 | YS_G7009 | YS6880 | Head bolt set |
| 10 | YS_F5111 | YS2845 | Valve cover |
| 11 | YS_F5112 | YS2850 | Valve cover gasket |
| 12 | YS_F5113 | YS2855 | Valve cover screws |
| 13 | YS_F5114 | YS2860 | Intake pipe |
| 14 | YS_F5115 | YS2865 | Intake O rings |
| 15 | YS_G7015 | YS6885 | Crankshaft |
| 16 | YS_G1016 | YS6290 | Crankshaft ring |
| 17 | YS_G1017 | YS6295 | Rear bearing |
| 18 | YS_F5118 | YS2880 | Front bearing |
| 19 | YS_F5119 | YS2885 | Front bearing seal |
| 20 | YS_F5120 | YS2890 | Drive washer |
| 21 | YS_F5121 | YS2895 | Drive washer retainer |
| 22 | YS_F1266 | YS0825 | Prop washer |
| 23 | YS_F2267 | YS6145 | Prop nut set |
| 24 | YS_G7024 | YS6890 | Piston |
| 25 | YS_G1025 | YS6305 | Piston ring |
| 26 | YS_G7026 | YS7000 | Wrist pin with retainers |
| 28 | YS_F5128 | YS2930 | Rocker arm set |
| 29 | YS_F2013 | YS4510 | Intake tappet adjusting screw |
| 30 | YS_F2014 | YS4515 | Exhaust tappet adjusting screw |
| 31 | YS_F1214 | YS0565 | Adjuster nut set |
| 32 | YS_F5131 | YS2935 | Rocker arm shaft |
| 33 | YS_F5132 | YS2940 | Rocker arm screw |
| 34 | YS_F1217 | YS0580 | E ring clip set |
| 35 | YS_G7034 | YS6895 | Cam |
| 36 | YS_F5135 | YS2950 | Cam cover |
| 37 | YS_F5136 | YS2955 | Cam cover O-ring |
| 38 | YS_F5137 | YS4400 | Cam gear cover screws |
| 39 | YS_F5138 | YS2960 | Cam bearing set |
| 40 | YS_F1236 | YS0675 | Cam follower set |
| 41 | YS_G7040 | YS6900 | Push rod |
| 42 | YS_G7041 | YS6905 | Push rod cover |
| 43 | YS_F5142 | YS2980 | Push rod cover O ring |
| 44 | YS_G1043 | YS6365 | Con rod |
| YS_G1044A | YS6370 | Back plate assembly | |
| 45 | YS_G1044 | YS6375 | Back plate |
| 46 | YS_G1045 | YS6380 | Disc valve |
| 47 | YS_G1046 | YS6385 | Disc valve pin |
| 48 | YS_G1047 | YS6390 | Disc valve set screw |
| 49 | YS_F5149 | YS3005 | Back plate gasket |
| 50 | YS_F5150 | YS3010 | Back plate screws |
| YS_G7050S | YS6910 | Carburetor assembly | |
| 51 | YS_G7050 | YS6915 | Carburetor body with throttle |
| YS_G7087 | 0 | Throttle barrel | |
| 52 | YS_G7051 | YS6920 | Throttole barrel seal |
| 53 | YS_R6124 | YS1090 | Throttle barrel retainer |
| 54 | YS_F1260S | YS0200 | Throttle arm set |
| 55 | YS_F1258 | YS0785 | Throttle stop screw |
| 56 | YS_F1259 | YS0790 | Throttle stop spring |
| YS_F5158S | YS3090 | Needle valve set | |
| 57 | YS_F5158 | YS3035 | Needle valve |
| 58 | YS_F1546 | YS2695 | Needle O ring |
| 59 | YS_F1555 | YS2700 | Needle socket |
| 60 | YS_F1556 | YS2705 | Needle socket O ring |
| 61 | YS_F1557 | YS2710 | Needle detent |
| 62 | YS_F5164 | YS3040 | Carburetor gasket |
| 63 | YS_F5165 | YS3045 | Carburetor screws |
| YS_G7163S | YS7135 | Fuel pump assembly | |
| 64 | YS_G7163 | YS7140 | Regulator body |
| 65 | YS_F1245 | YS0195 | Regulator adjusting screw |
| 66 | YS_F1246 | YS0725 | Regulator adjusting screw O-ring |
| 67 | YS_G7166 | YS7145 | Diaphram |
| 68 | YS_F2051 | YS4610 | Regulator spring |
| 69 | YS_G7068 | YS6945 | Regulator screw set |
| 70 | YS_G7069 | YS6950 | Fuel pump body with plunger |
| 71 | YS_G7070 | YS6955 | Pump valves |
| 72 | YS_G7071 | YS6960 | Pump valve springs |
| 73 | YS_G7072 | YS6965 | Pump plate |
| 74 | YS_G7073 | YS6970 | Pump screws |
| 75 | YS_G7074 | YS6975 | Pump gasket |
| YS_G7086 | 0 | Plunger | |
| 76 | YS_G7075 | YS6980 | Pump insulator |
| 77 | YS_F2188 | YS4660 | Insulator O ring |
| 78 | YS_F2059 | YS4665 | Pump bracket |
| 79 | YS_G7078 | YS6985 | Upper push rod |
| 80 | YS_G7079 | YS6990 | Lower push rod |
| 81 | YS_F4088 | YS5130 | Check valve |
| YS_F5173S | YS3095 | Muffler set | |
| 82 | YS_F5173A | YS3065 | Muffler assembly |
| 83 | YS_F5174 | YS3070 | Exhaust pipe |
| 84 | YS_F5175 | YS3075 | Rock nuts |
| YS_F2083 | YS4720 | Fuel tank clunk | |
| YS_G1080 | YS6355 | Gasket set | |
| YS_G7086 | YS6995 | O ring set |
