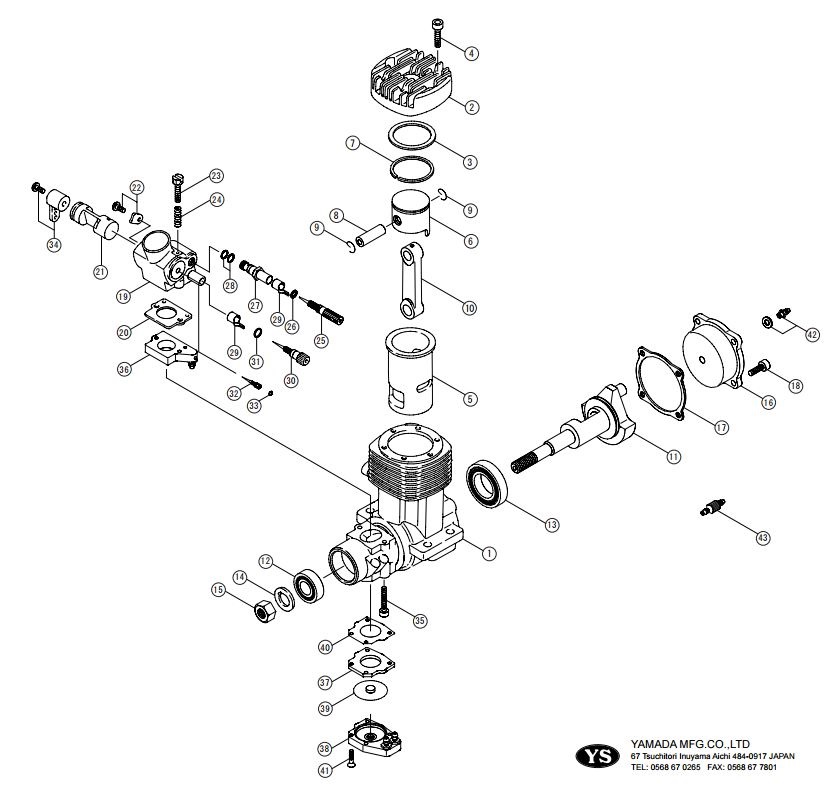

Reservdelslista YS 80ST

(Klicka på "Artnr" nedan för att komma till produkten)

#	Artnr	Beskrivning	Antal i förpackning
1	YS_S4101	Crankcase side exhaust	1
2	YS_S4102	Cylinder head	1
3	YS_S4103	Head gasket	1
4	YS_R6104	Cylinder head screws	6
	YS_S4105S	Piston & liner side exhaust
5	YS_S4105	Cylinder liner	1
6	YS_S4106	Piston side exhaust	1
7	YS_S4107	Piston ring	1
8	YS_S7108	Wrist pin	1
9	YS_R6108	Wrist pin retainer	2
10	YS_S4110	Connecting rod	1
11	YS_S4111	Crank shaft	1
12	YS_R6211	Front bearing	1
13	YS_S7113	Rear bearing	1
14	YS_R6115	Drive washer spacer	1
15	YS_R6217	Prop nut	1
16	YS_S7116	Back plate	1
17	YS_R6119	Back plate gasket	1
18	YS_R6120	Back plate screws	4
	YS_S4119S	Carburetor assembly
19	YS_S4119	Carburetor body	1
20	YS_R6122	Carburetor gasket	1
21	YS_S4121	Throttle barrel	1
22	YS_R6124	Throttle barrel retainer	1
23	YS_F1258	Throttle stop screw	1
24	YS_F1259	Throttle stop spring	1
	YS_F1545S	Needle valve assembly
25	YS_F1545	Needle valve	1
26	YS_F1546	Needle O ring	1
27	YS_F1555	Needle valve socket	1
28	YS_F1256	Needle valve socket O-ring set	2
29	YS_S8129	Needle valve detent spring	2
30	YS_S8130	High speed needle valve	1
31	YS_R6203	High speed needle valve O-ring	1
32	YS_S8132	Low speed needle valve	1
33	YS_S8133	Low speed needle O ring	1
34	YS_F1260S	Throttle arm set	1
35	YS_S7132	Caburetor screws	1
36	YS_S7133	Carburetor subplate	1
37	YS_S7134	Regurator subplate	1
38	YS_S8138A	Regurator assembly
39	YS_S7136	Diaphram	1
40	YS_S7140	Regurator gasket	1
41	YS_S7144	Check valve	1
	YS_S7145	Gasket set	3
	YS_S8146	O-ring set	5
