RC Sweden AB - YS 91ST

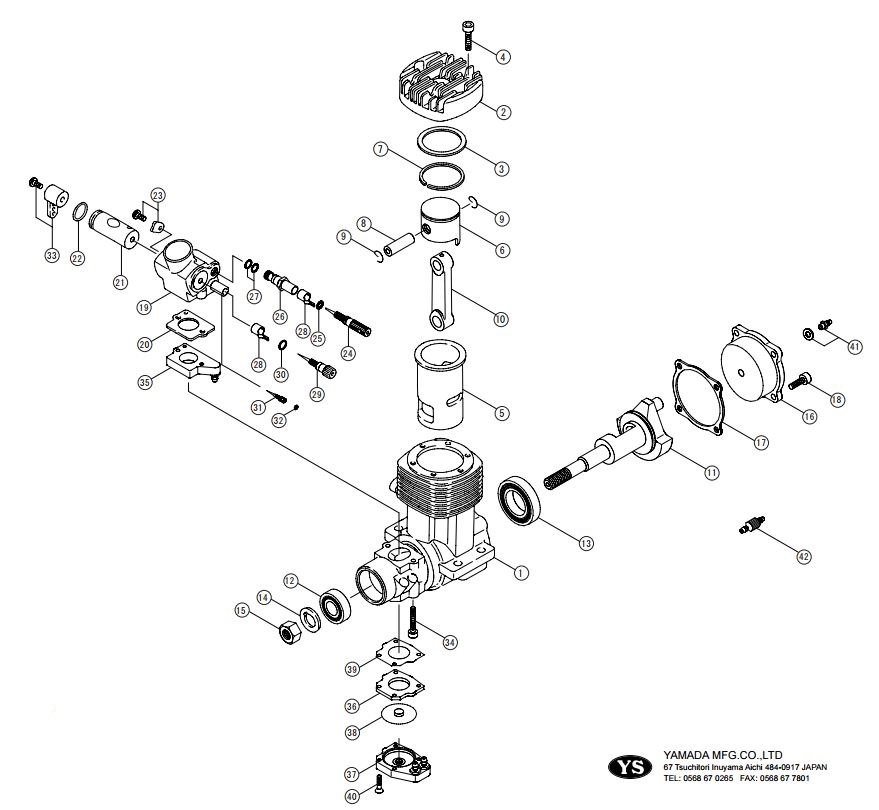

Reservdelslista YS 91ST

(Klicka på "Artnr" nedan för att komma till produkten)

#	Artnr	Beskrivning	Antal i förpackning
1	YS_S5101	Crankcase	1
2	YS_S5102	Cylinder head	1
3	YS_S5103	Head gasket	1
4	YS_S5104	Head screws	6
	YS_S5105S	Piston & liner	3
5	YS_S5105	Cylinder liner	1
6	YS_S5106	Piston side exhaust	1
7	YS_S5107	Piston ring	1
8	YS_S7108	Wrist pin	1
9	YS_R6108	Wrist pin retainer	2
10	YS_S5110	Connecting rod	1
11	YS_S5111	Crank shaft	1
12	YS_R6211	Front bearing	1
13	YS_S7113	Rear bearing	1
14	YS_R6115	Drive washer spacer	1
15	YS_R6217	Prop nut	1
16	YS_S5116	Back plate	1
17	YS_S5117	Back plate gasket	1
18	YS_R6120	Back plate screws	4
	YS_S5119S	Carburetor assembly
19	YS_S5119	Carburetor body	1
20	YS_S5120	Carburetor gasket	1
21	YS_S5121	Throttle barrel	1
22	YS_S5122	Seal ring	1
23	YS_R6124	Throttle barrel retainer	1
	YS_S4125S	Needle valve assembly
24	YS_S4125	Hover needle valve	1
25	YS_F1546	Needle valve O ring	1
26	YS_F1555	Needle valve seat	1
27	YS_F1556	Needle valve seat O-ring set	2
28	YS_S5128	Needle valve detent spring	2
29	YS_S8130	High speed needle valve	1
30	YS_R6203	High speed needle valve O-ring	1
31	YS_S5131	Low speed needle valve	1
32	YS_S8133	Low speed needle vakve O ring	1
33	YS_F1260S	Throttle arm set	1
34	YS_S7132	Caburetor screws	1
35	YS_S5135	Carburetor subplate	1
36	YS_S7134	Regulator subplate	1
37	YS_S8138A	Regulator assembly
38	YS_S7136	Diaphram	1
39	YS_S7140	Regulator gasket	1
40	YS_S7139	Regulator screws	2
41	YS_S7143	Nipple	1
42	YS_S7144	Check valve	1
	YS_F1565	Drive washer retainer	1
	YS_S5143	Gasket set	3
	YS_S8146	O-ring set	5
