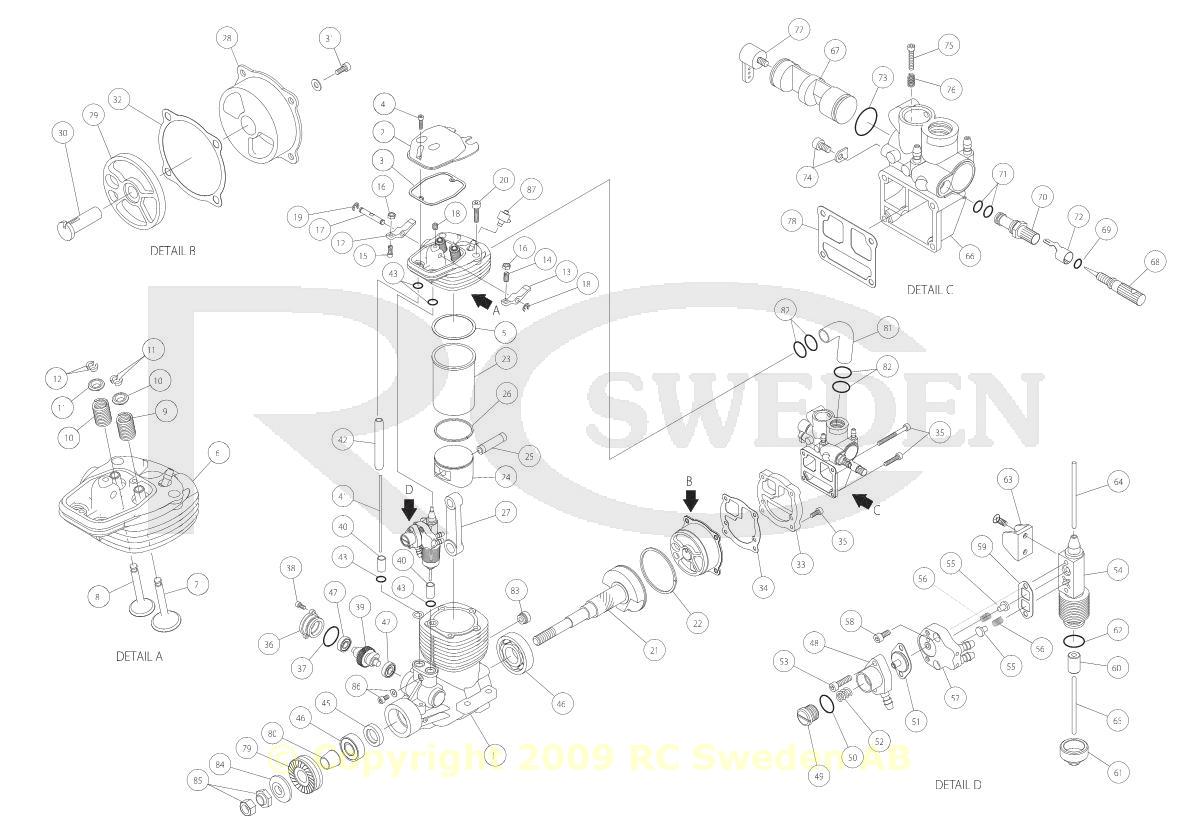

Reservdelslista YS DZ170
| # | Artnr | Beskrivning | Antal i förpackning |
|---|---|---|---|
| 1 | YS_F8001 | Crankcase | 1 |
| 2 | YS_F2002 | Valve cover | 1 |
| 3 | YS_F1203 | Head cover gasket | 1 |
| 4 | YS_F1204 | Valve cover screw set | 2 |
| 5 | YS_F8005 | Head gasket | 1 |
| YS_F8006A | Head assembly | ||
| 6 | YS_F2006 | Cylinder head | 1 |
| 7 | YS_F1407 | Intake valve | 1 |
| 8 | YS_F1408 | Exhaust valve | 1 |
| 9 | YS_F8009 | Intake valve spring | 1 |
| 10 | YS_F8010 | Exhaust valve spring | 1 |
| 11 | YS_F1410 | Spring retainer set | 2 |
| 12 | YS_F1411 | Valve spring retainer clips | 4 |
| 13 | YS_F1212 | Rocker arm set | 2 |
| 14 | YS_F2013 | Intake tappet adjusting screw | 1 |
| 15 | YS_F2014 | Exhaust tappet Adjusting screw | 1 |
| 16 | YS_F1214 | Tappet adjusting lock nuts | 2 |
| 17 | YS_F1215 | Rocker arm shaft | 1 |
| 18 | YS_F1216 | Rocker arm shaft screw | 1 |
| 19 | YS_F1217 | E ring set | 2 |
| 20 | YS_F1518 | Head bolt set | 5 |
| 21 | YS_F8021 | Crankshaft | 1 |
| 22 | YS_F1475 | Crankshaft ring | 1 |
| 23 | YS_F8023 | Cylinder liner | 1 |
| 24 | YS_F8024 | Piston | 1 |
| 25 | YS_F8025 | Wrist pin | 1 |
| 26 | YS_F4026 | Piston ring | 1 |
| 27 | YS_F8027 | Connecting rod | 1 |
| YS_F8128A | Back plate assy. | ||
| 28 | Back plate (included inYS F8128A) | ||
| 29 | Back plate (included inYS F8128A) | ||
| 30 | Back plate (included inYS F8128A) | ||
| 31 | Back plate (included inYS F8128A) | ||
| 32 | YS_F1230 | Back plate gasket | 1 |
| 33 | YS_F2132 | Carburetor insulator | 1 |
| 34 | YS_F2192 | Insulator gasket | 1 |
| 35 | YS_F2133 | Back plate screw set | 6 |
| 36 | YS_F1232 | Cam gear cover | 1 |
| 37 | YS_F1233 | Cam gear cover O-ring | 1 |
| 38 | YS_F1234 | Cam gear cover screws set | 2 |
| 39 | YS_F2036 | Cam | 1 |
| 40 | YS_F8140 | Cam followers | 1 |
| 41 | YS_F2040 | Exhaust push rod | 1 |
| 42 | YS_F2041 | Push rod cover | 1 |
| 43 | YS_F1239 | Push rod cover O-ring | 4 |
| 44 | YS_R6211 | Front bearing | 1 |
| 45 | YS_F9122 | Front bearing oil seal | 1 |
| 46 | YS_F1341 | Rear bearing | 1 |
| 47 | YS_F1242 | Cam gear bearing set | 2 |
| YS_F8048A | Pump assembly | ||
| 48 | Regulator body (included inYS F8048A) | ||
| 49 | YS_F1245 | Regulator adjusting screw | 1 |
| 50 | YS_F1246 | Regulator body B | 1 |
| 51 | YS_F2050 | Diaphram | 1 |
| 52 | YS_F2051 | Regulator spring | 1 |
| 53 | YS_F2052 | Regulator screw set | 2 |
| 54 | Fuel pump body (included inYS F8048A) | ||
| 55 | YS_F2054 | Pump valve | 2 |
| 56 | YS_F8056 | Pump valve spring | 2 |
| 57 | Pump plate (included inYS F8048A) | ||
| 58 | YS_F2057 | Pump screws | 2 |
| 59 | YS_F2058 | Pump gasket | 1 |
| 60 | Plunger (included inYS F8048A) | ||
| 61 | YS_F2187 | Pump insulator | 1 |
| 62 | YS_F2188 | Insulator O ring | 1 |
| 63 | YS_F2059 | Pump bracket | 1 |
| 64 | YS_F2190 | Upper push rod | 1 |
| 65 | YS_F2191 | Lower push rod | 1 |
| YS_F8066A | Carburetor assembly | ||
| 66 | YS_F2161 | Carburetor body | 1 |
| 67 | Throttle barrel (included in YS F8066A) | ||
| YS_F5158S | Needle valve assembly | ||
| 68 | YS_F5158 | High speed needle valve | 1 |
| 69 | YS_F1546 | High speed needle valve O-ring | 1 |
| 70 | YS_F1555 | High speed needle seat | 1 |
| 71 | YS_F1556 | Needle valve socket O-ring set | 2 |
| 72 | YS_F1557 | Needle valve detent | 1 |
| 73 | YS_F2168 | Throttle barrel seal | 1 |
| 74 | YS_R6124 | Throttle barrel retainer | 1 |
| 75 | YS_F1258 | Throttle stop screw | 1 |
| 76 | YS_F1259 | Throttle stop spring | 1 |
| 77 | YS_F1260S | Throttle arm set | 1 |
| 78 | YS_F2073 | Carburetor gasket | 1 |
| 79 | YS_F1564 | Drive washer | 1 |
| 80 | YS_F1565 | Drive washer retainer | 1 |
| 81 | YS_F8081 | Intake pipe | 1 |
| 82 | YS_F1269 | Intake pipe O-ring | 4 |
| 83 | YS_F8083 | Wrist pin access plug | 1 |
| 84 | YS_F1266 | Propeller washer | 1 |
| 85 | YS_F1267 | Propeller nut set | 2 |
| 86 | YS_F2084 | Wrist pin access screw | 1 |
| 87 | YS_F4088 | Check valve | 1 |
| YS_F2154 | Pump cap | 1 | |
| YS_F2155 | Pump cap O-ring | 1 | |
| YS_F2181S | Gasket set | 4 | |
| YS_F2282S | O ring set | 14 | |
| YS_F2083 | Fuel tank clunk | 1 | |
| YS_F8089 | Tube holder | 1 | |
| YS_F8090 | Fuel tube clip | 1 | |
| YS_M1010 | Super Mount Set | ||
| YS_M0020 | Front Mount Set | ||
| YS_M0021 | Front Mount Case | 1 | |
| YS_M0022 | Inner Ring | 1 | |
| YS_M0023 | Inner Rubber | 1 | |
| YS_M1030 | Rear Mount Assembly | ||
| YS_M1031 | Rear Mount | 1 | |
| YS_M0032 | Rear Mount Arm | 1 | |
| YS_M0033 | Arm Screw | 2 | |
| YS_M0040 | Rear Mount Screw Set | 3 | |
| YS_M0050 | Rear Mount Spacer | 1 | |
| YS_M0060 | Oil Damper #200 | 1 | |
| YS_M0070 | Ball Support | 2 | |
| YS_MN140 | Teflon tape | 2 | |
| YS_MN110S | Spacer a set | 4 | |
| YS_MN111S | Spacer a set "Lower Type" | 4 |
