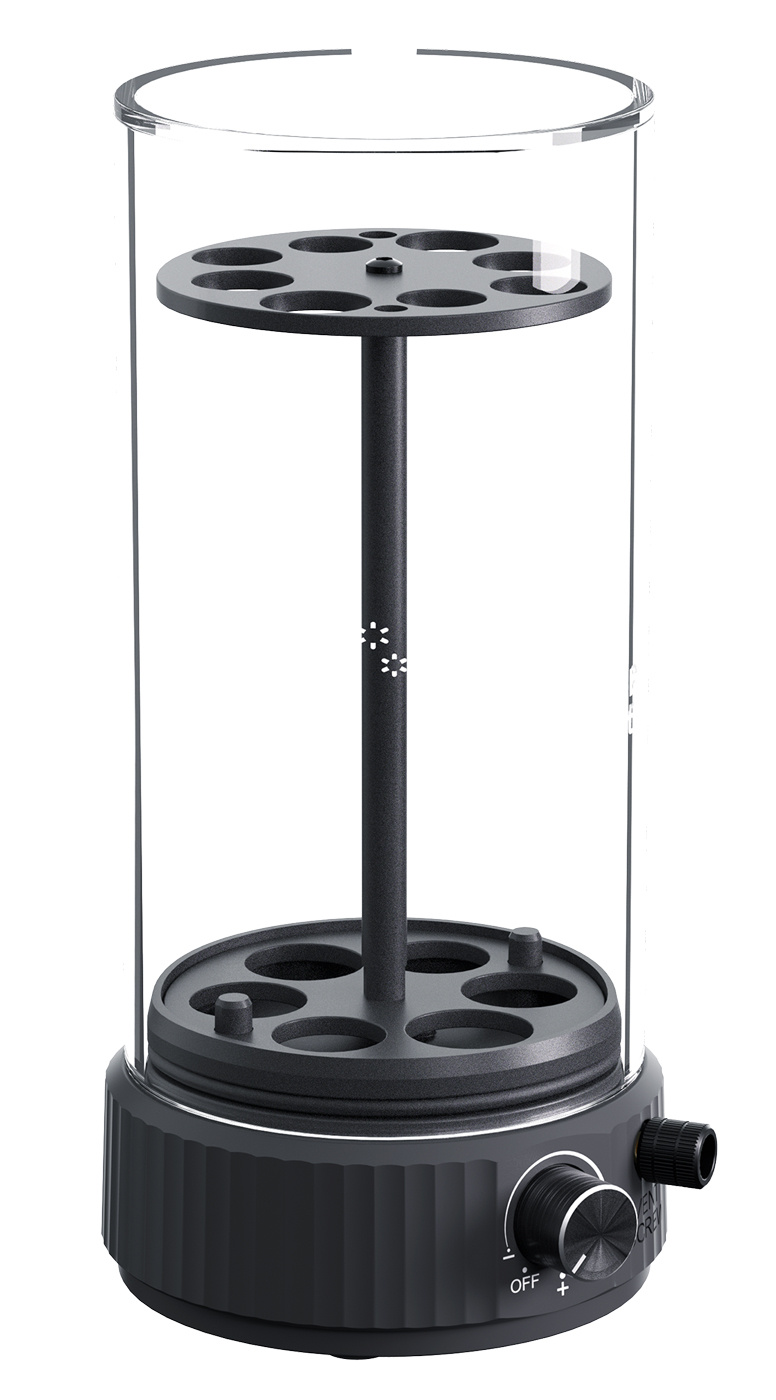

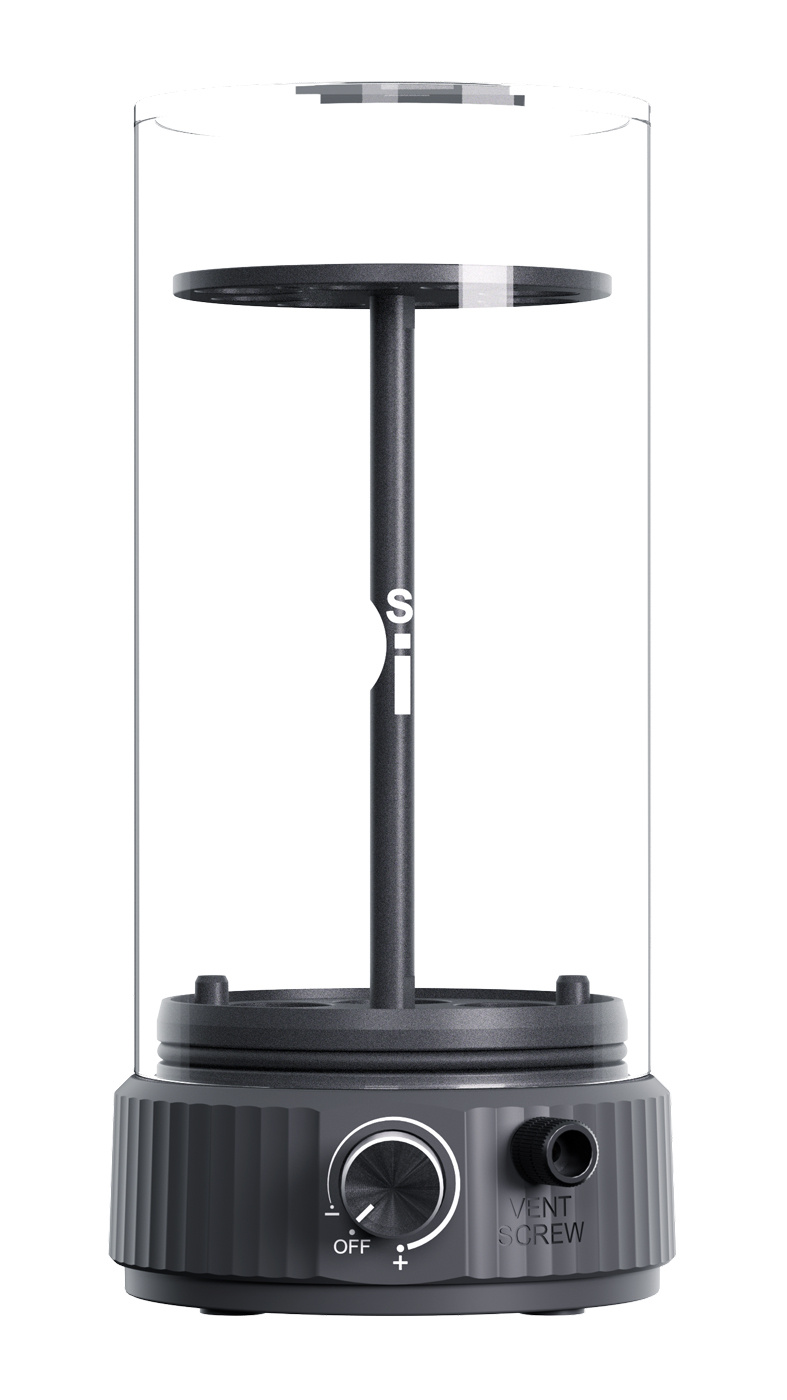

SkyRC SK600158 Shock Absorber Bleeding Tool

Product Info:

SkyRC SK600158-01 - Shock Oil Bubble Buster



Once air bubbles are present, damping is compromised!
During oil filling or refilling, shaft cycling, or cap installation, air inevitably becomes trapped in the shock oil.
Air is compressible.

As a result, damping is no longer governed solely by oil, but repeatedly disturbed by trapped air bubbles.
This is not about feeling softer or stiffer — the damping logic itself is broken

Remove the air. Leave only the oil.
Shock Oil Bubble Buster uses negative-pressure vacuum to force dissolved air out of the shock oil.

• It doesn’t solve a feel problem.
• It solves a physical state problem.

Adjustable vacuum. Matched to viscosity.
The Bubble Buster supports 3–5.5V wide-range voltage adjustment, providing the appropriate degassing strength for different shock oil viscosities:

• Higher voltage - For high-viscosity shock oils — fast, thorough degassing
• Lower voltage - For low-viscosity oils — gentle bubble removal without disturbing oil structure. It’s not about pulling harder — it’s about being exactly right.

Dual power input. Flexible by design. The tool adapts to your environment, not the other way around.

• XT60 (5–15V) - Direct battery connection for trackside efficiency
• USB-C (5V) - Power bank or wall adapter for home maintenance

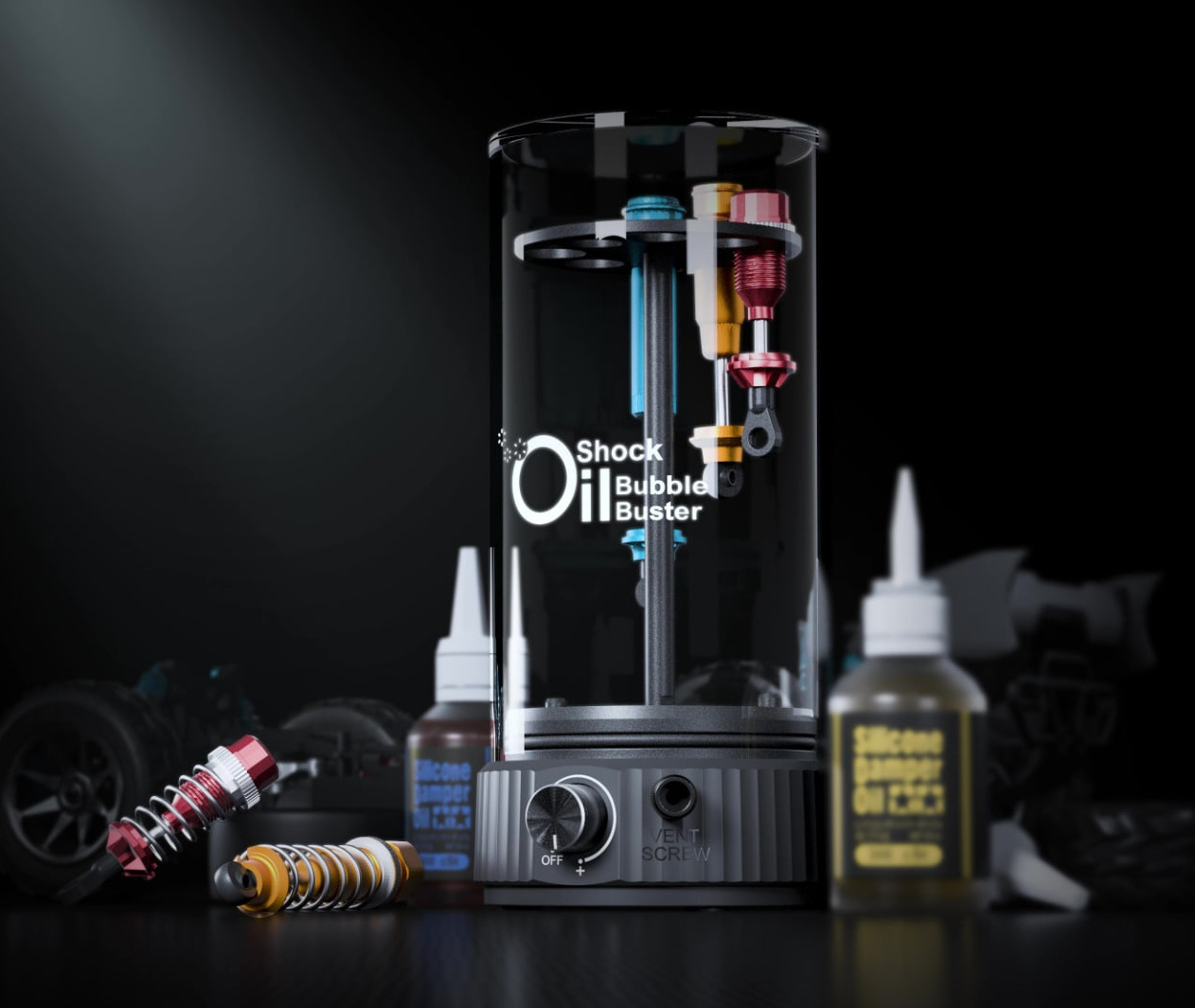

Multi-scale compatibility. Versatile.

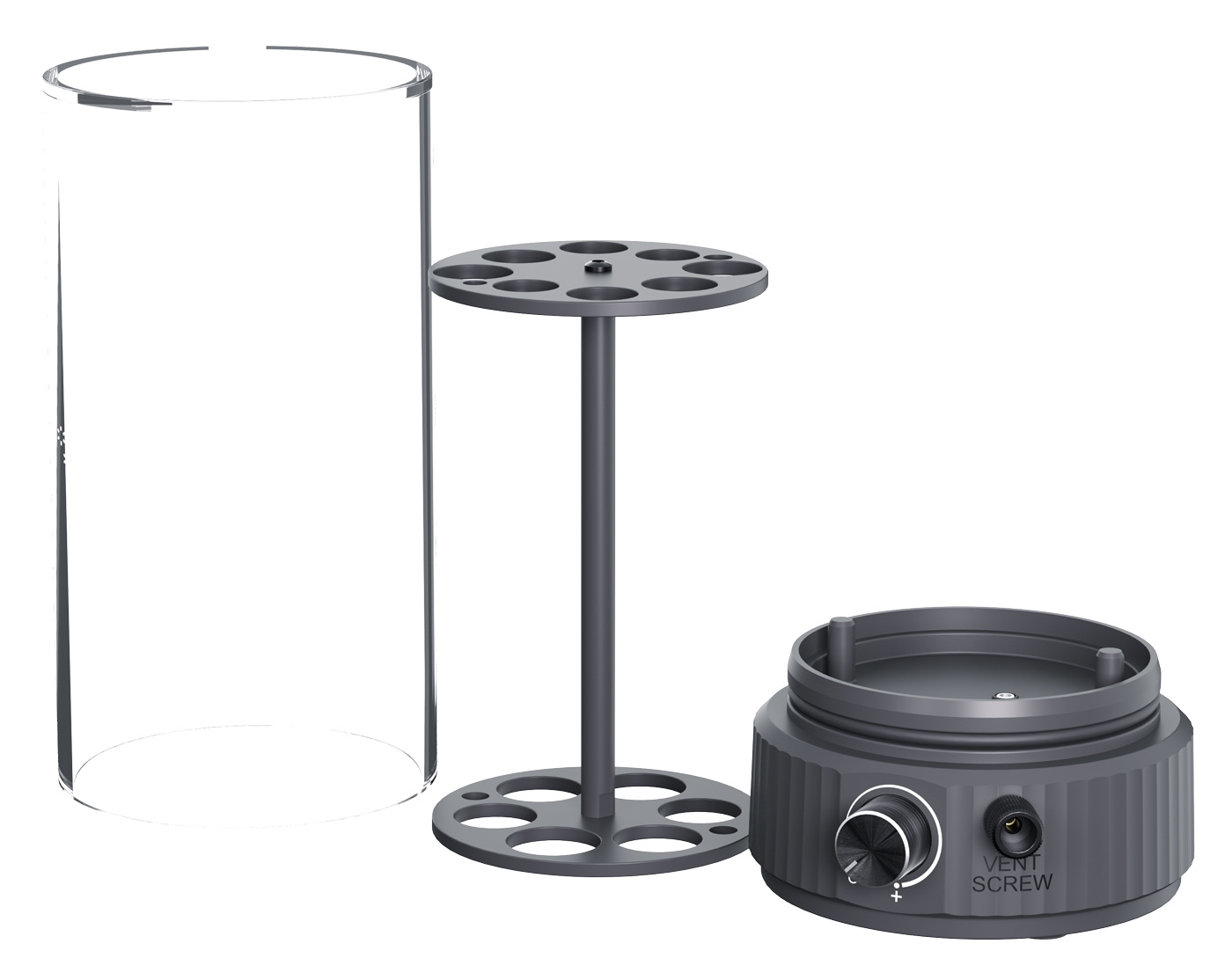

Supplied with multi-size supports, the Bubble Buster is compatible with common RC shock types:

• 1/8 off-road
• 1/10 touring
• Crawlers

Single shocks or batch maintenance — the process remains consistent.

Specs:

• Dimension: 98x88x185mm
• Weight: Approx. 442g
• nput Voltage: DC 5V~15V, Type-C 5V Input Current: Max. 1A
• Shock Absorber Diameter: Φ13mm ~ Φ19mm
• Vacuum Pressure: -36.05kPa ± 2kPa
• Operating temperature: 0℃-40℃
• Working humidity: 10%–90% RH, non-condensing
• Storage temperature: -10°C–50°C
• Storage humidity: 20%–65% RH, non-condensing
