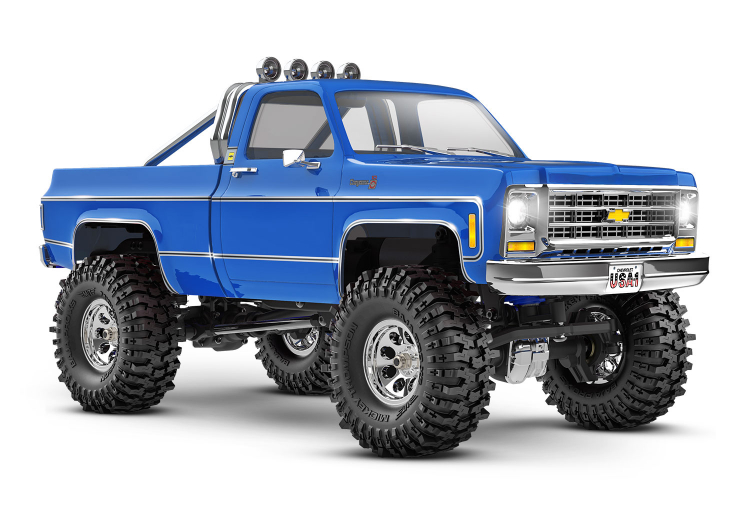

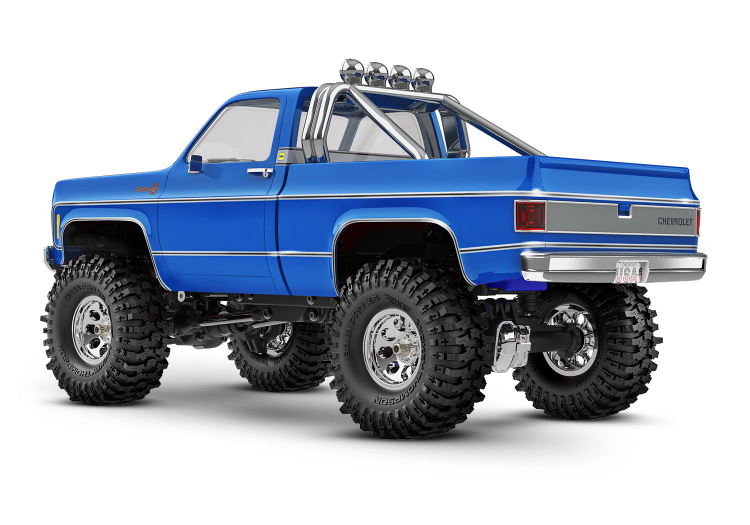

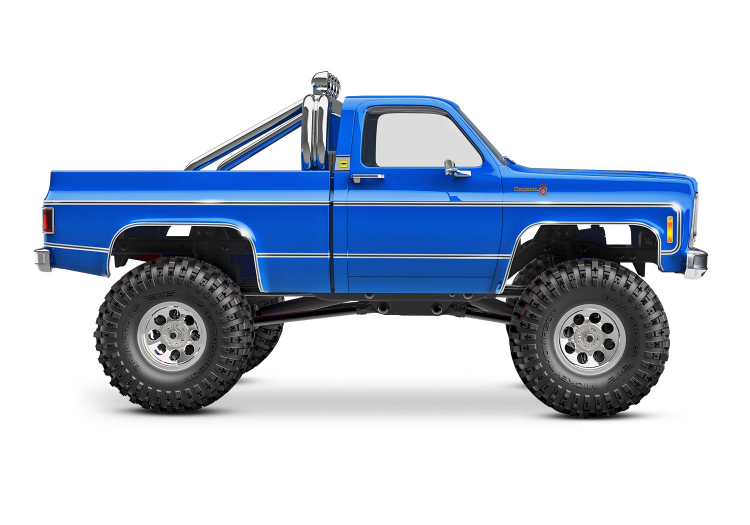

TRX-4M Chevrolet K-10 High Trail RTR Blue

TRX-4M® 1979 Chevrolet® K10 High Trail™ Edition - BLUE

High Trail Performance for TRX-4M
Small-scale adventure takes a big leap in performance with the TRX-4M™ Chevrolet® K10 High Trail™ Edition. The lifted High Trail pickup offers over 35% more center ground clearance than a standard TRX-4M with an extended wheelbase for even more all-terrain capability. Oversize Mickey Thompson® Baja Pro™ XS tires enhance traction and give K10 a dramatic lifted truck profile. From indoor fun to outdoor adventure, TRX-4M K10 High Trail Edition delivers the quality and performance you expect from Traxxas.

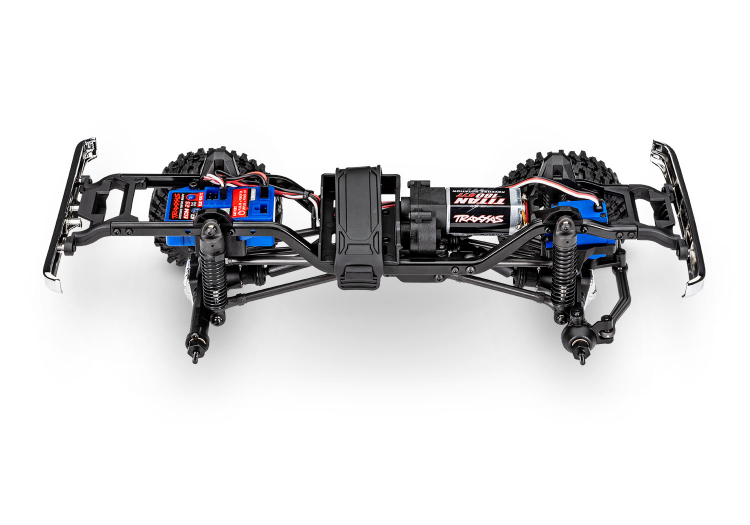

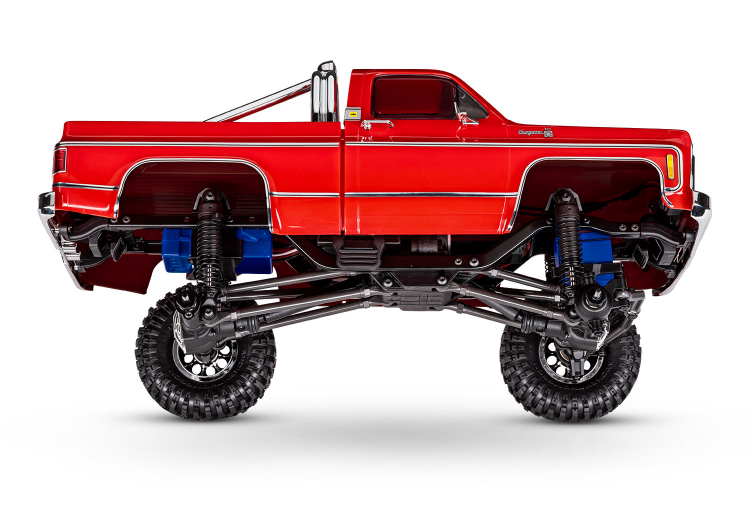

Long Arm Lift Kit
The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.

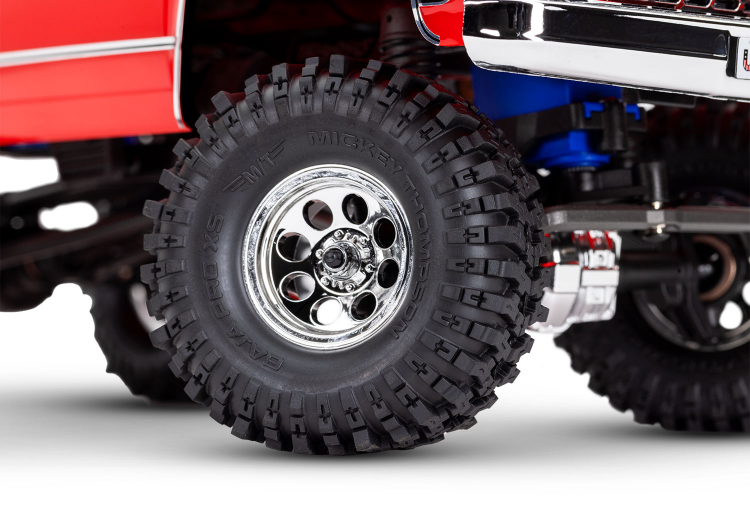

New Larger 2.4" Tires
Larger 2.4" Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber and trail-tuned foam inserts give extra “bite” for superior traction on the trail.

Extended Wheelbase
The High Trail Edition’s steel frame rails extend the wheelbase out to 162mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

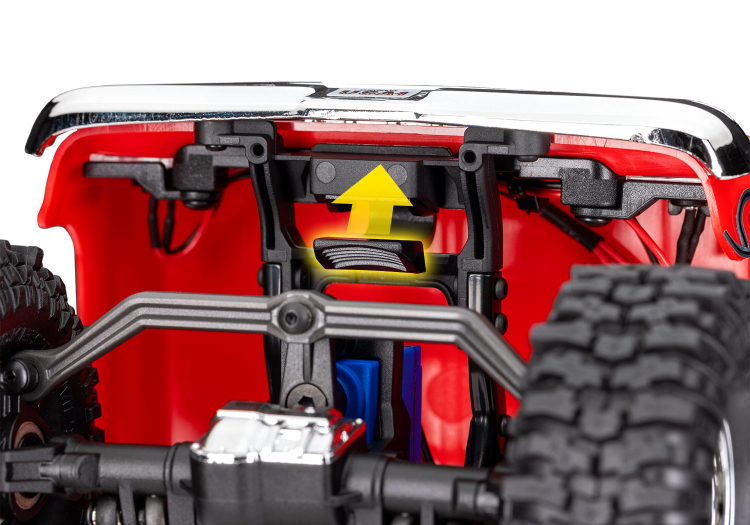

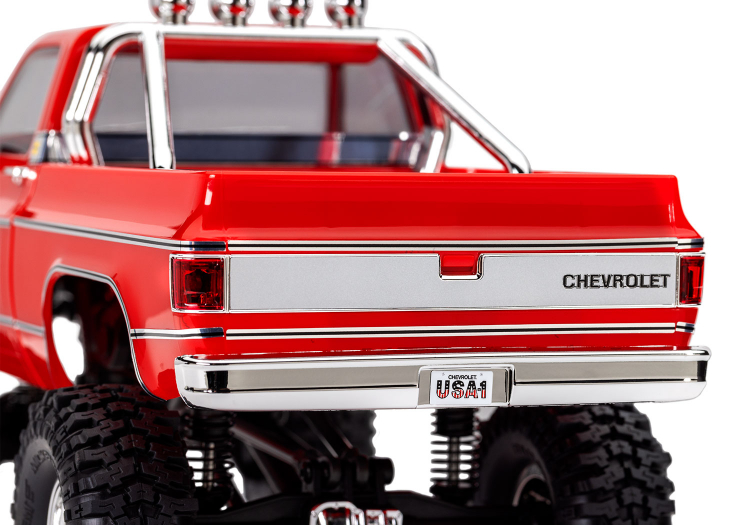

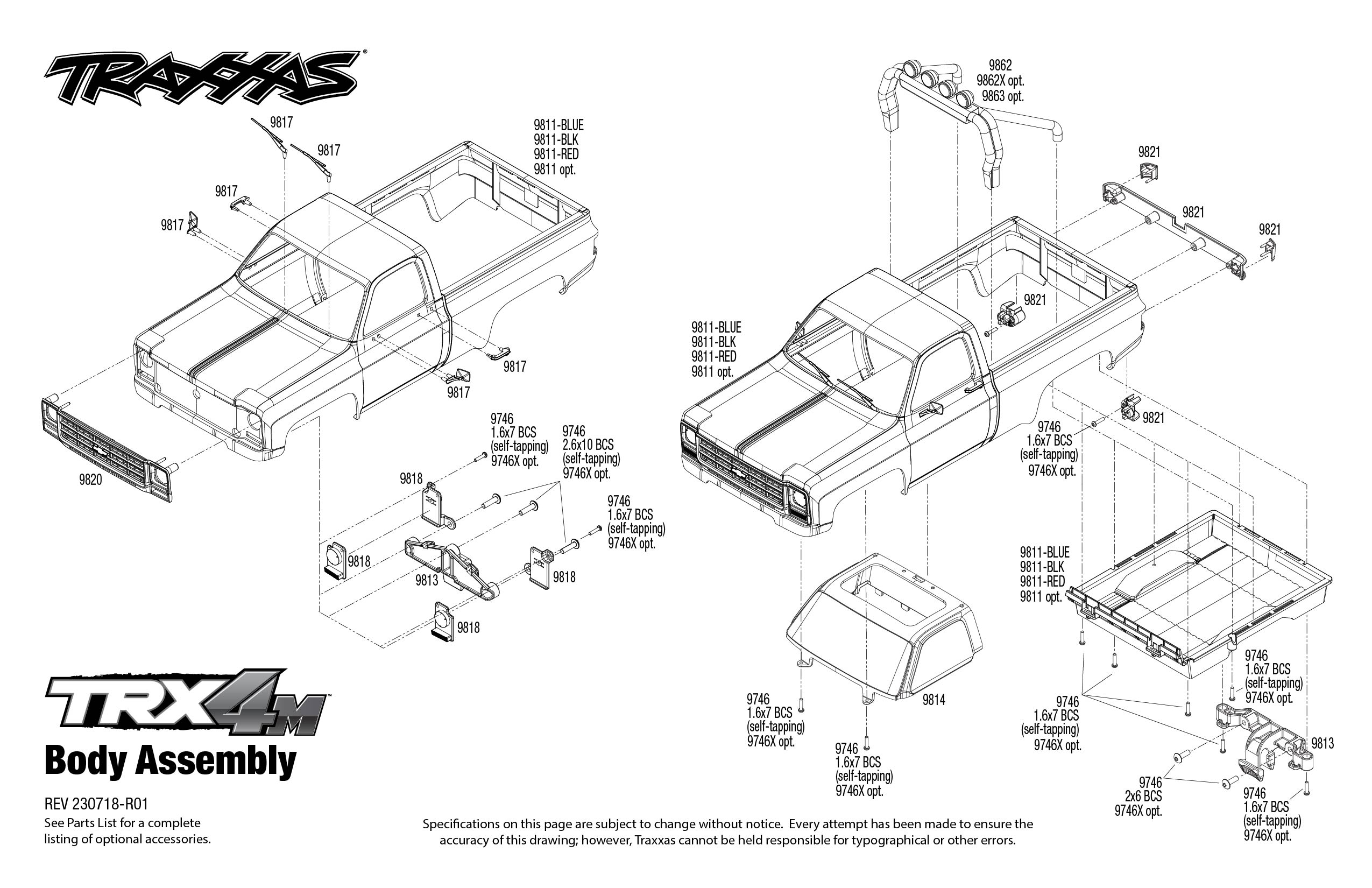

Detailed Clipless Body
The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.

TRX-4M K10 High Trail Specs:

• Length: 269mm
• Front Track: 127mm
• Rear Track: 127mm
• Center Ground Clearance: 40mm
• Weight (with battery): 468g
• Height: 127mm
• Wheelbase: 162mm
• Approach Angle: 62°
• Breakover Angle: 51.5°
• Departure Angle: 52°

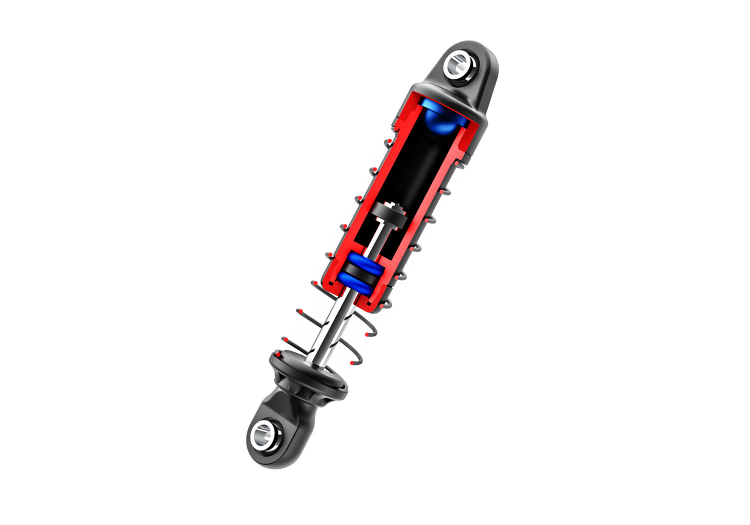

• Shock Length (front and rear): 2.0 inches (51mm)
• Hex Size: 7mm

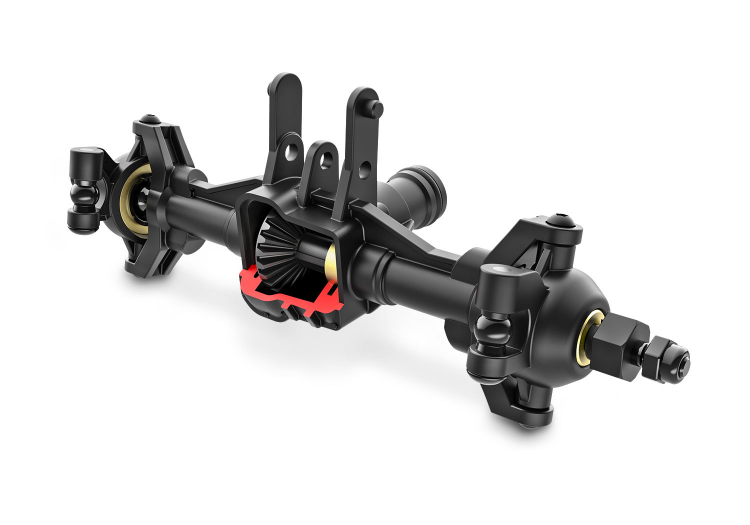

• Differential Type: Fully Locked; 2:1 Axle Ratio
• Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
• Tires (front and rear): 2.4 x 1.0 inches (61.9 x 25.6mm)
• Electronic Control Module: ECM-2.5™ (Combo ESC, Receiver, Lighting Control*)
• Motor (electric): Titan® 180 87T

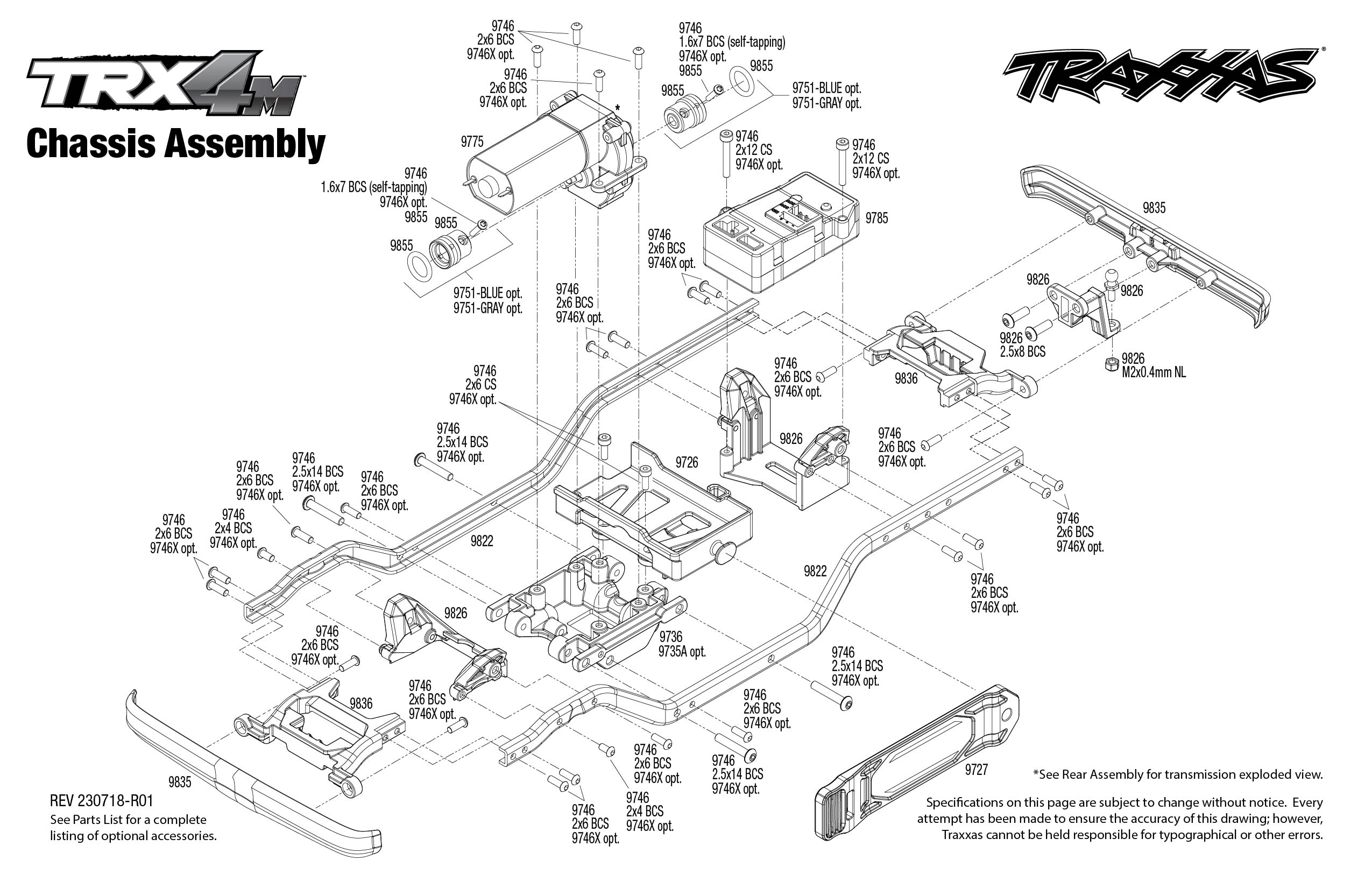

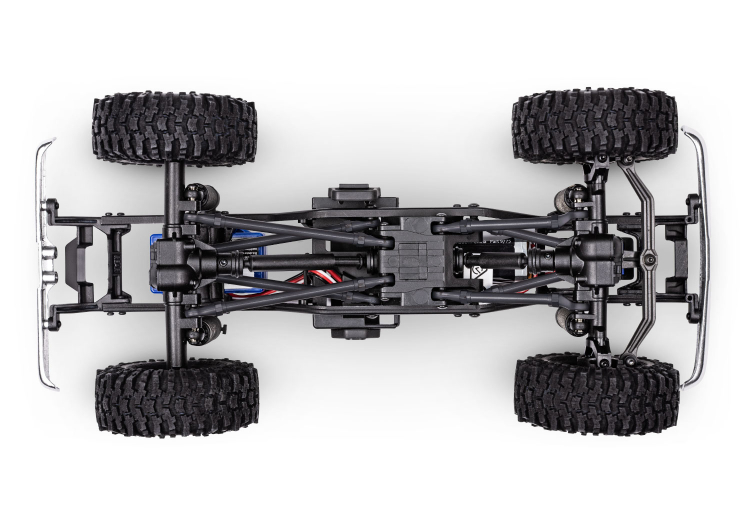

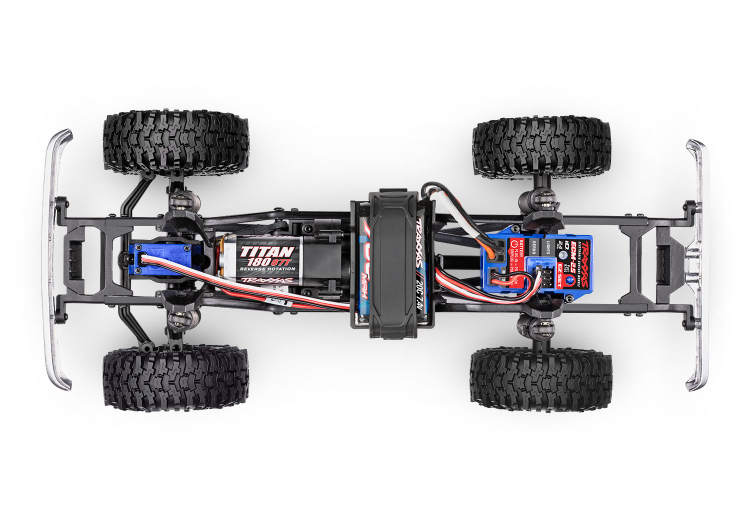

• Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
• Brake Type: Electronic “Hill Hold”

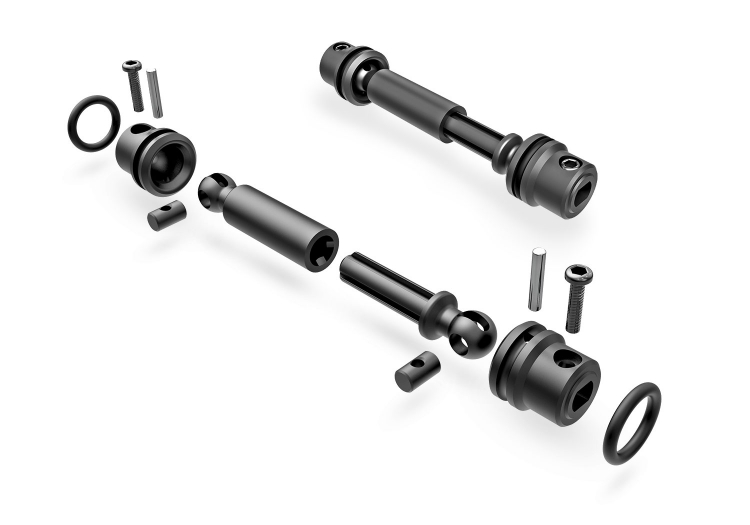

• Drive System: Shaft-Driven 4WD
• Steering: Axle-Mounted Servo
• Radio System: TQ™ 2.4GHz 2-Channel Transmitter

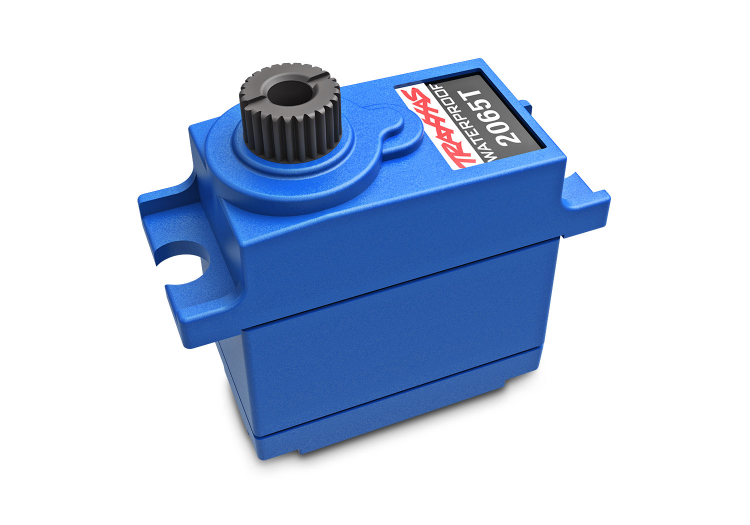

• Servo: #2065T Heavy Duty Waterproof
• Skill Level: 1
• Battery Tray: L50.5 x W31mm

*Requires accessory Pro Scale LED Light Kit, sold separately

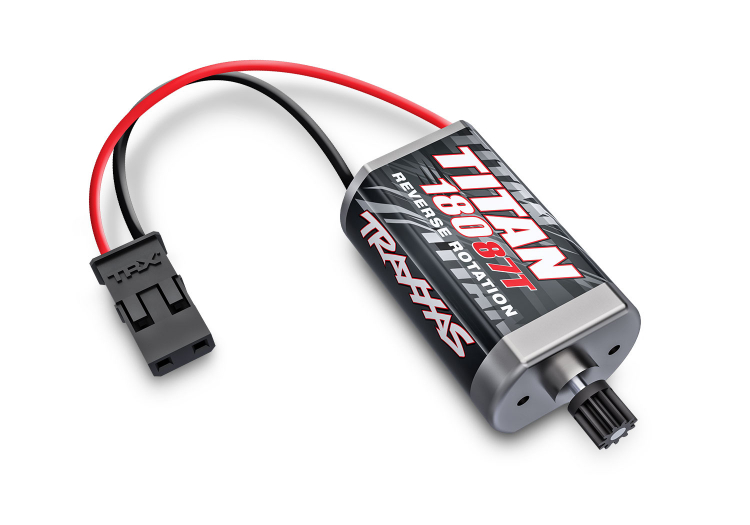

Motor Specs:

• High-torque brushed motor
• Size: 180
• Weight: 33g
• Dimensions: 42mm overall length, 34mm can length & 21mm diameter
• Turns: 87T reverse rotation
• Voltage: 8.4V

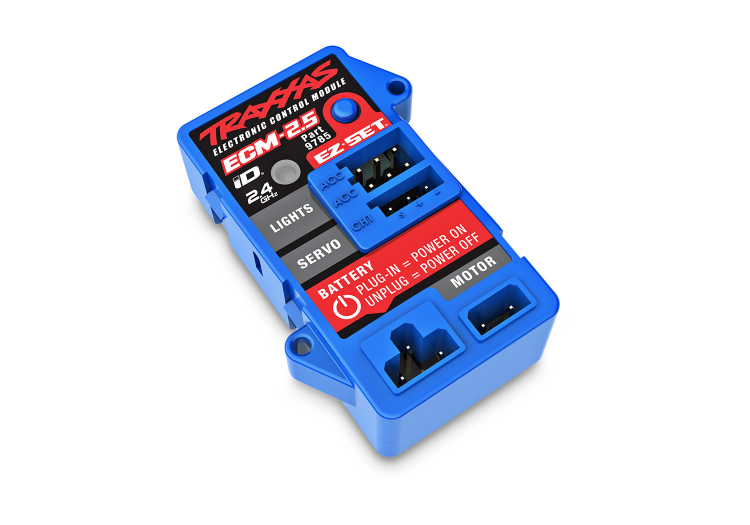

ECM Specs:

• Input Voltage: 2s LiPo
• Weight: 26g
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Low Voltage Detection (LVD): 2-Stage
• Motor Overload Protection: 2-Stage

Profile Selection:

• Sport Mode: 100% FWD, 100% Brakes, 100% REV
• Trail Mode: 100% FWD, 100% Brakes, 100% REV, Trail-Tuned Brake on Neutral
• Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral

What’s In The Box:

• TRX-4M® High Trail™ model
• Licensed ABS hard body
• Titan® 180 87-turn motor
• ECM-2.5™ Electronic Control Module
• TQ transmitter

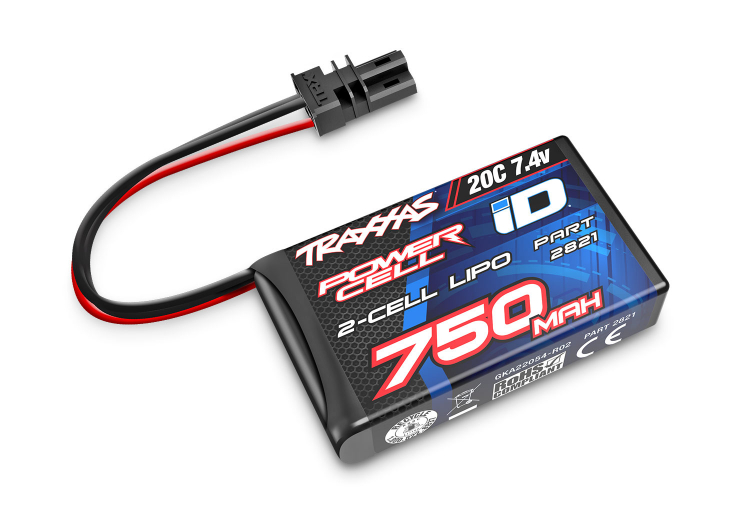

• 7.4 volt 750mAh 2-cell LiPo battery

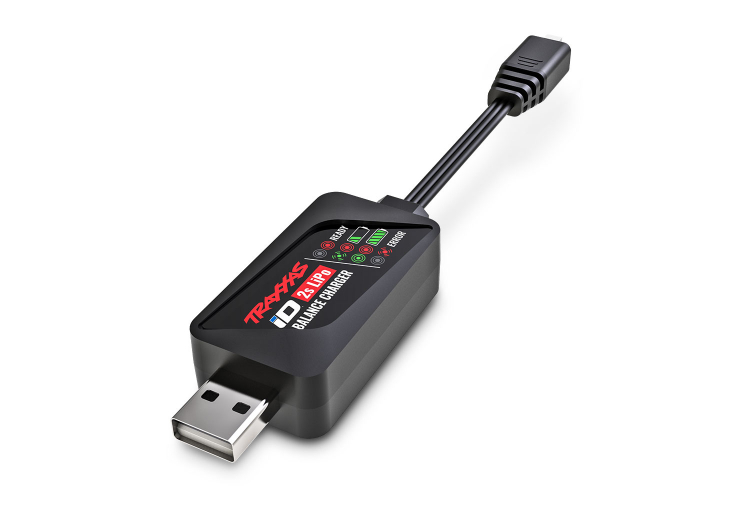

• 2-amp USB fast charger with iD®
• High quality maintenance tools

What You’ll Need:

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter

GM used under license to Traxxas.
PATENTS: https://traxxas.com/pat
