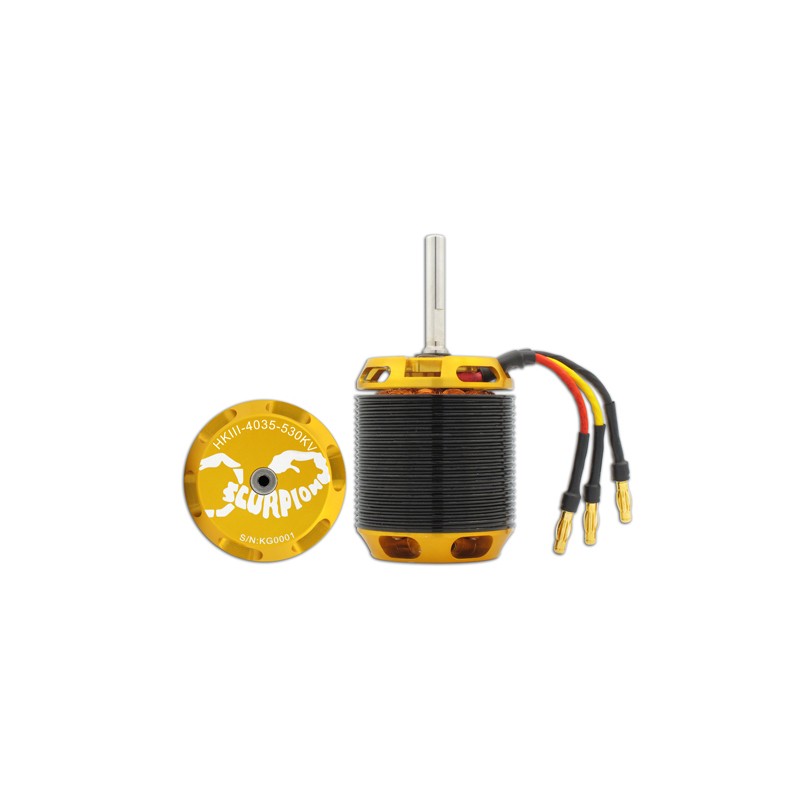

Scorpion HKIII-4035-530KV
2,195 SEK per styck
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandScorpion
Description
Article no.: SP-HKIII-4035-530
The Scorpion HKIII-4035 Series Motor* is designed for using on 700 class helicopters running on 12-cell Li-Po power. This motor represents the most technologically advanced power source ever offered for a 700 class electric helicopter.
Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.
Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.
For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!

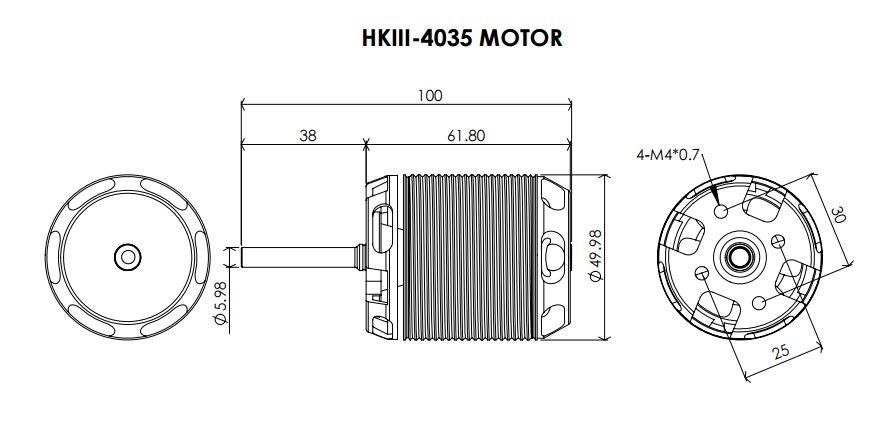

*This motor is using 30mm*25mm bolt spacing on the mounting with M4 Screw holes
Specifications:
Stator Diameter: 40 mm (1.57 in)
Stator Thickness: 35 mm (1.024 in)
No. of Stator Arms: 12
Magnet Poles: 10
Motor Wind: 9 Turn Delta
Motor Wire: 22 - Strand 0.29mm
Motor Kv: 530KV RPM / Volt
No-Load Current (IO): 2.15 Amps @ 10v
Motor Resistance (RM): 0.015 Ohms
Max Continuous Current: 80 Amps
Max Continuous Power: 3400 Watts
Weight: 460 Grams (16.22 oz)
Outside Diameter : 49.98 mm (1.97 in)
Shaft Diameter: 5.98 mm (0.235 in)
Body Length: 61.8 mm (2.43 in)
Overall Shaft Length: 100.0 mm (3.93 in)
Max Lipo Cell: 12s
Peak Current: 100A (5 seconds)
Peak Power: 4400 Watts (5 seconds)
Motor Timing: 5deg
Drive Frequency: 8kHz
Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.
Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.
For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!
*This motor is using 30mm*25mm bolt spacing on the mounting with M4 Screw holes
