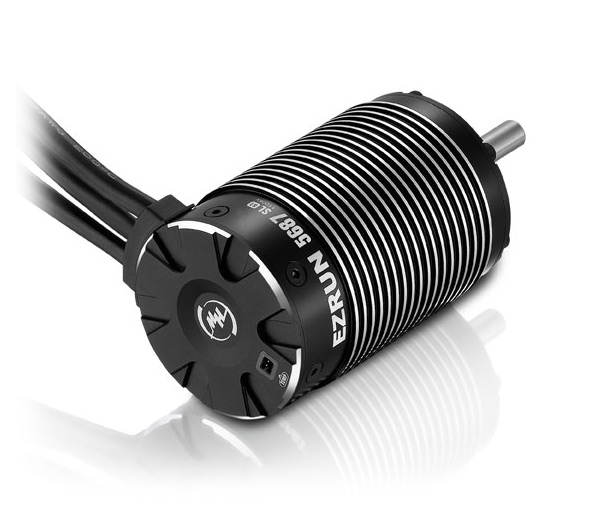

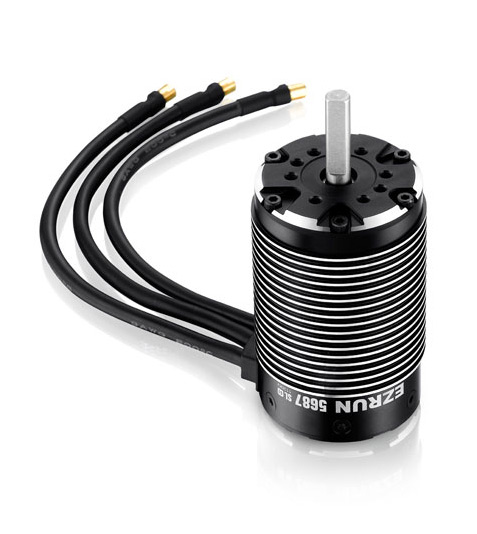

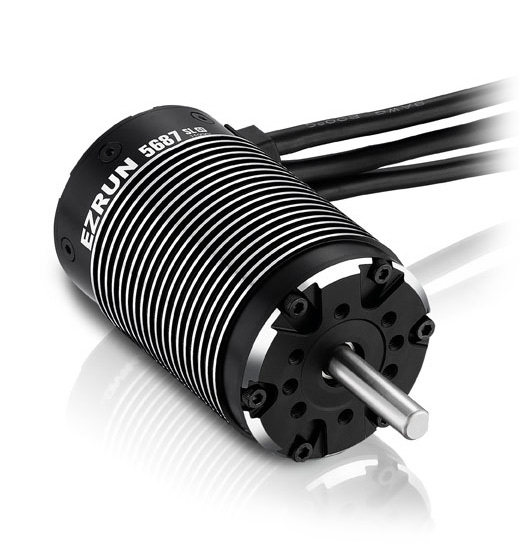

Motor EzRun 5687 1100kV Sensorless
1,995 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- ApplicationCar
- Motor typeBrushless
- kV value1100 kV
- Motor diameter56 mm
- Motor length87 mm
- Motor shaft length31 mm
- Motor shaft diameter8 mm
- Weight916 g
- Max voltage29,6 V
- Effect Peak5800 W
- BrandHobbywing
Description
Article no.: MC_HW30402550
- 4 pole rotor for high torque, fast acceleration response and stable power output
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%)

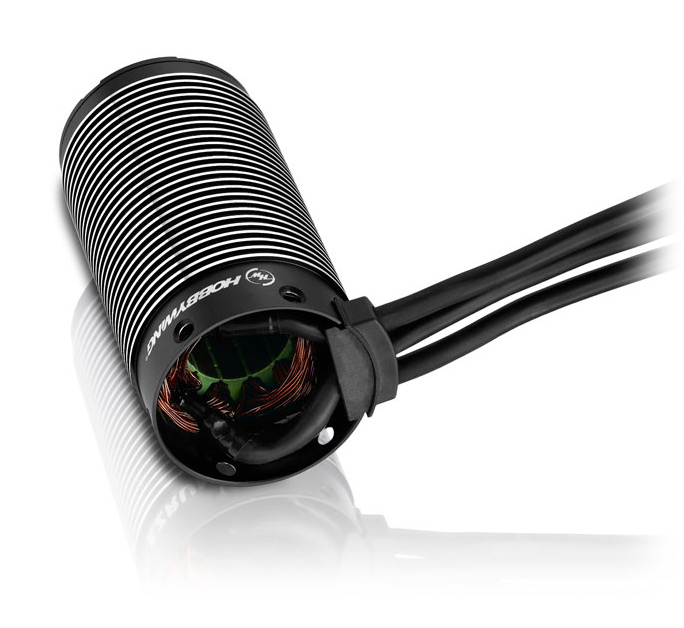

- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness

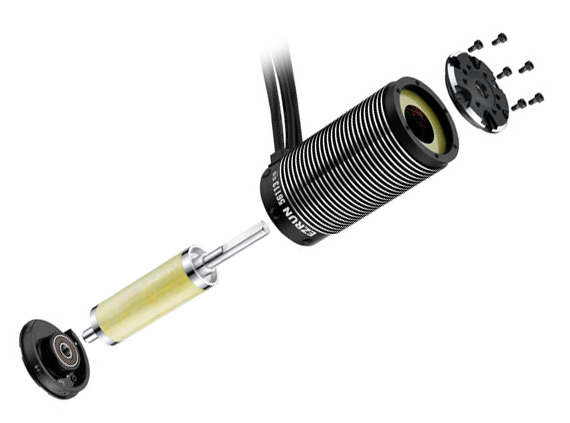

- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency
- This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/5 ESC
- Temperature sensor port provides all-round protection to the power system (Hobbywing will develop some ESCs with the motor thermal protection function to pair these motors in future)
- Type: Brushless Sensorless
- Poles: 4
- KV: 1100
- LiPo: 3-8S
- Resistance: 0.0041Ohm
- No Load: 4.1A
- Max Current: 200A
- Power: Max 5800W

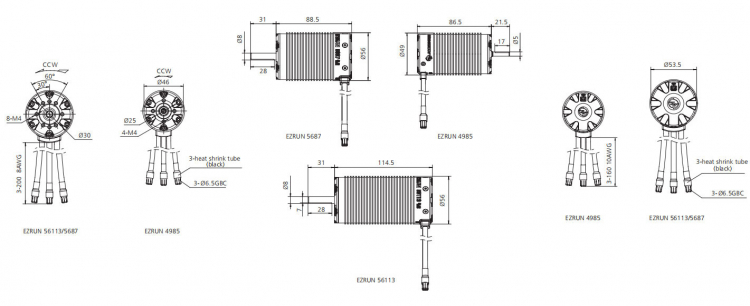

- Outer Dia: 56mm
- Length: 87mm
- Shaft Dia: 8mm
- Shaft Length: 31mm
- Weight: 916g
- Application: 1/5 & 1/6 Light-Duty Vehicles
Hobbywing EzRun 5687 Brushless 1100KV Sensorless Motor
Features:
Specs:
Features:
Specs:
