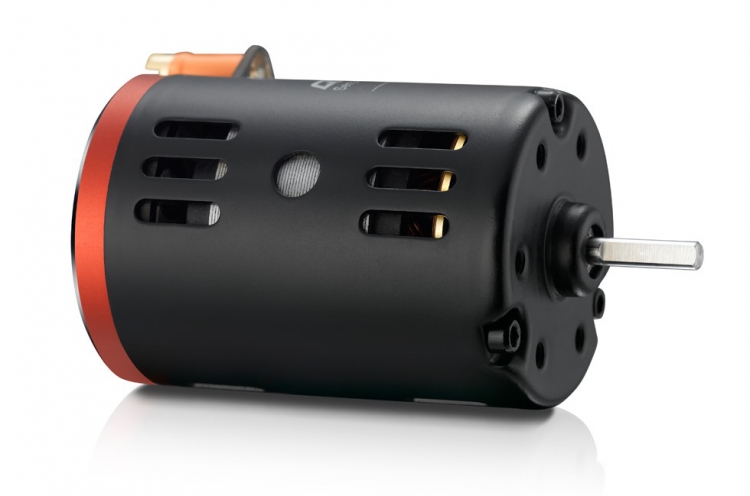

Motor QuicRun 3650SD 17.5T G2
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- ApplicationCar
- Motor typeBrushless
- kV value2170 kV
- Rating17.5 T
- Motor diameter36 mm
- Motor length52,8 mm
- Motor shaft diameter3,17 mm
- Weight187 g
- Max voltage11,1 V
- SpecialSensor based
- BrandHobbywing
Description
Article no.: MC_HW30404306
- Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SD
- Pole Count: 2
- KV Rating: 2170
- LiPo Cells: 2-3S
- No-load Current(A): 1.6
- O.D.(mm): 36(1.147in)
- Length (mm): 52.8(2.079in)
- Shaft Diameter (mm): 3.17(0.125in)
- Weight (g): 187(6.596oz)
- Timing: Fixed
Linear & Smooth Control
The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner heat to the unique motor case to maximize cooling for extreme cooling conditions.
Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.

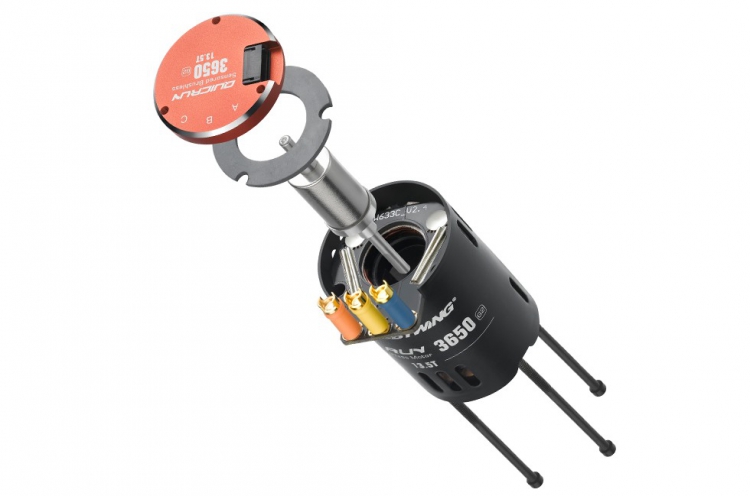

Re-buildable Design
The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).
Compatible (with QuicRun-10BL60-Sensored ESC)
When pairing the QuicRun3650 G2 motor with the Hobbwing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.
Specifications
Applications
1/10th, 1/12th On-road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)
