RC ElectronicsElectric MotorsXrotor 1408 Race Pro FPV Motor 3250kV 4S
Xrotor 1408 Race Pro FPV Motor 3250kV 4S

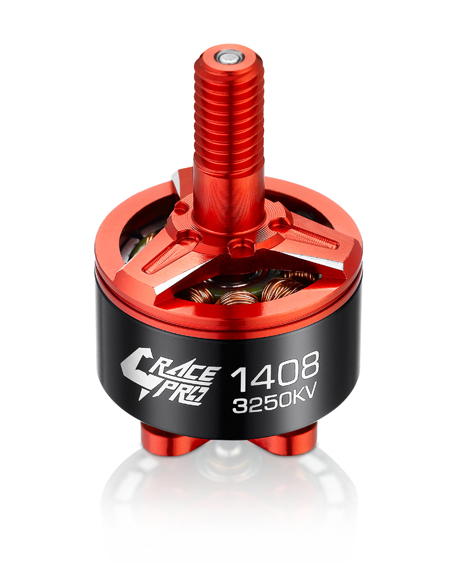

Xrotor 1408 Race Pro FPV Motor 3250kV 4S

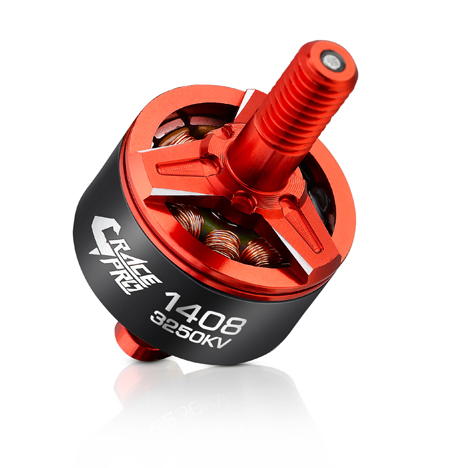

Xrotor 1408 Race Pro FPV Motor 3250kV 4S - 2

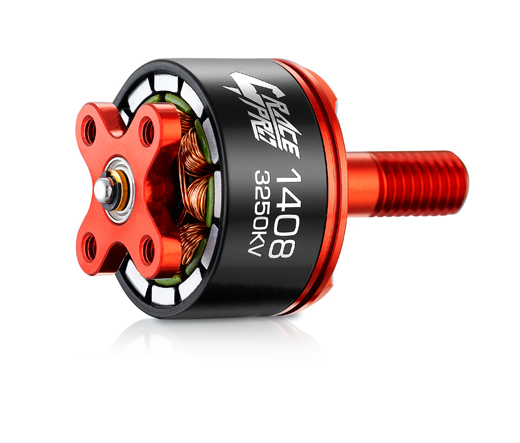

Xrotor 1408 Race Pro FPV Motor 3250kV 4S - 3

Xrotor 1408 Race Pro FPV Motor 3250kV 4S

173 SEK per pc
Read more...

  • Secure payment by card
  • E-mail us, we reply swiftly!
  • Fast Deliveries
  • Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
  • Click on "Chat with us" and we can help you immediately!

* We can be busy, call again if we don´t answer!

  • ApplicationMultirotor
  • Motor typeBrushless
  • kV value3250 kV
  • Motor diameter19 mm
  • Motor length16,3 mm
  • Motor shaft length19,3 mm
  • Motor shaft diameter5 mm
  • Weight15,8 g
  • Max voltage16 V
  • Effect Cont.154,6 W
  • BrandHobbywing

Description

Article no.: MC_HW30405552

    XRotor 1408 Race Pro 3250KV


    Strong Power
    The Hobbywing Xrotor 1408 Race Pro motor has been designed for the 130mm FPV racing drones. It inherits the swift acceleration, rapid response, high efficiency of the XRotor Race Pro series motors; the ultra-thin (0.15mm) silicon steel laminations combined with the N54 NbFeB magnets and the innovative magnetic circuit design guarantee the strong power of the small motor.

    Ultra Lightweight Design
    The new 1408 motor has been developed to push the limits of durability while remaining extremely lightweight, it weighs only 15.5g (w/o wires).

    Top Quality Components:
    • High quality 6061 aluminum and high-precision CNC Machining technology produce an improved strength and axial concentricity.
    • The NSK bearings are high-quality Japanese bearings are the best available, providing longer life, lower noise, and improved overall tolerances.
    • Ultra-thin (0.15mm) silicon steel laminations are used to manufacture the stators. This high-quality material improves overall efficiency.
    • Using the strongest, and most heat resistant NbFeB magnets ensure maximum torque under load, and excellent consistency across the motors operating ranges.

    Specs:
    • Motor KV: 3250
    • Stator Diameter: 14mm
    • Stator Thickness: 8mm
    • Number of Stator Arms: 9
    • Number of Rotor Poles: 12
    • No-Load Current: 0.7A @ 11.1V
    • Motor Resistance: 118mOhm
    • Max Continuous Current: 9.61A (30 sec)
    • Max Continuous Power: 154.6W (30 sec)
    • Weight (excluding wire): 15.8g
    • Rotor Diameter: 19mm
    • Can Length: 16.3mm
    • Shaft Length (total): 29.3mm
    • Shaft Diameter: 5mm
    • LiPo Cells: 4S
    • ESC: 12-15A
    • Recommended Prop Size: 3"
    • Wire Size: 24AWG/80mm
