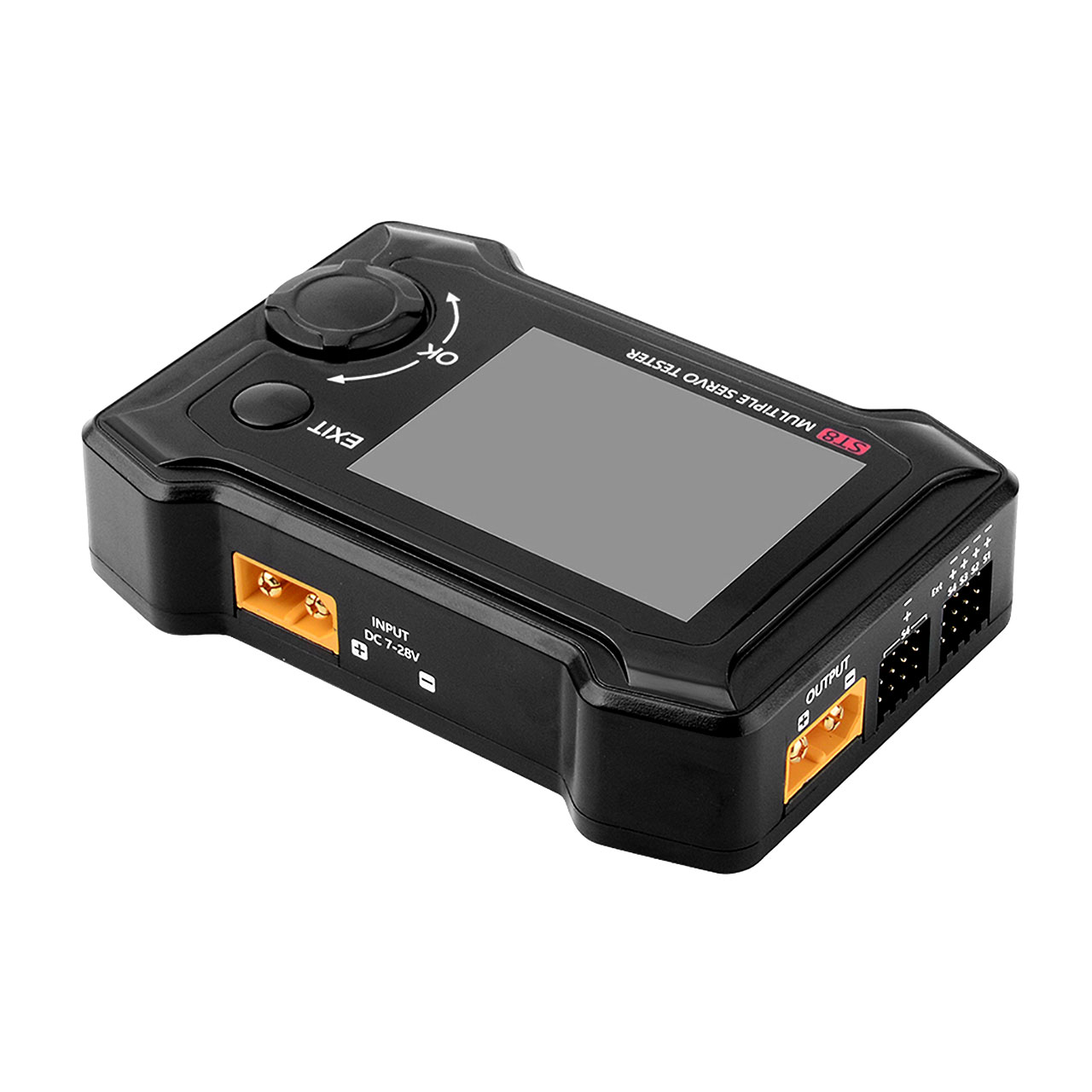

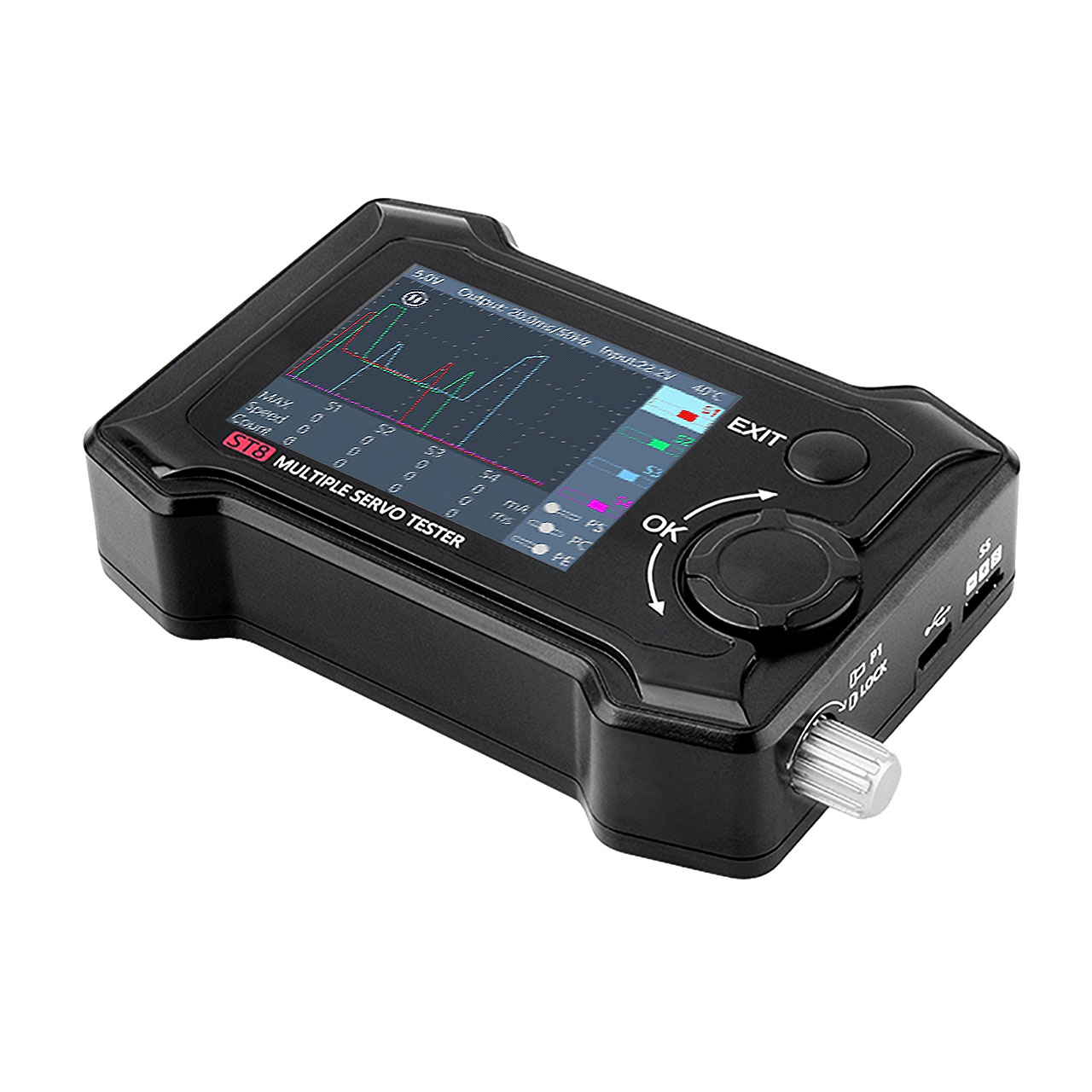

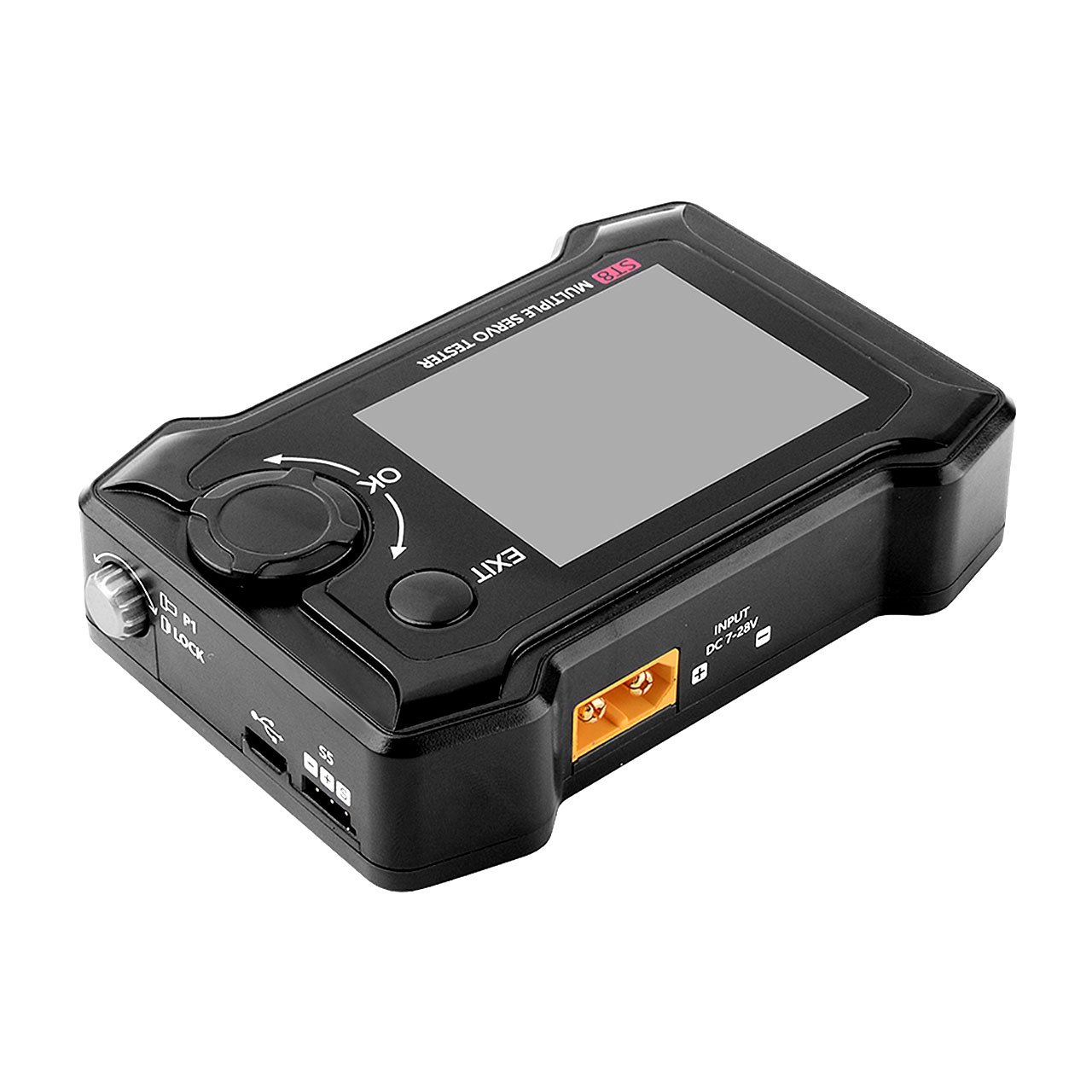

ToolkitRC ST8 Advanced Servo Tester
695 SEK per pc
Delivery:

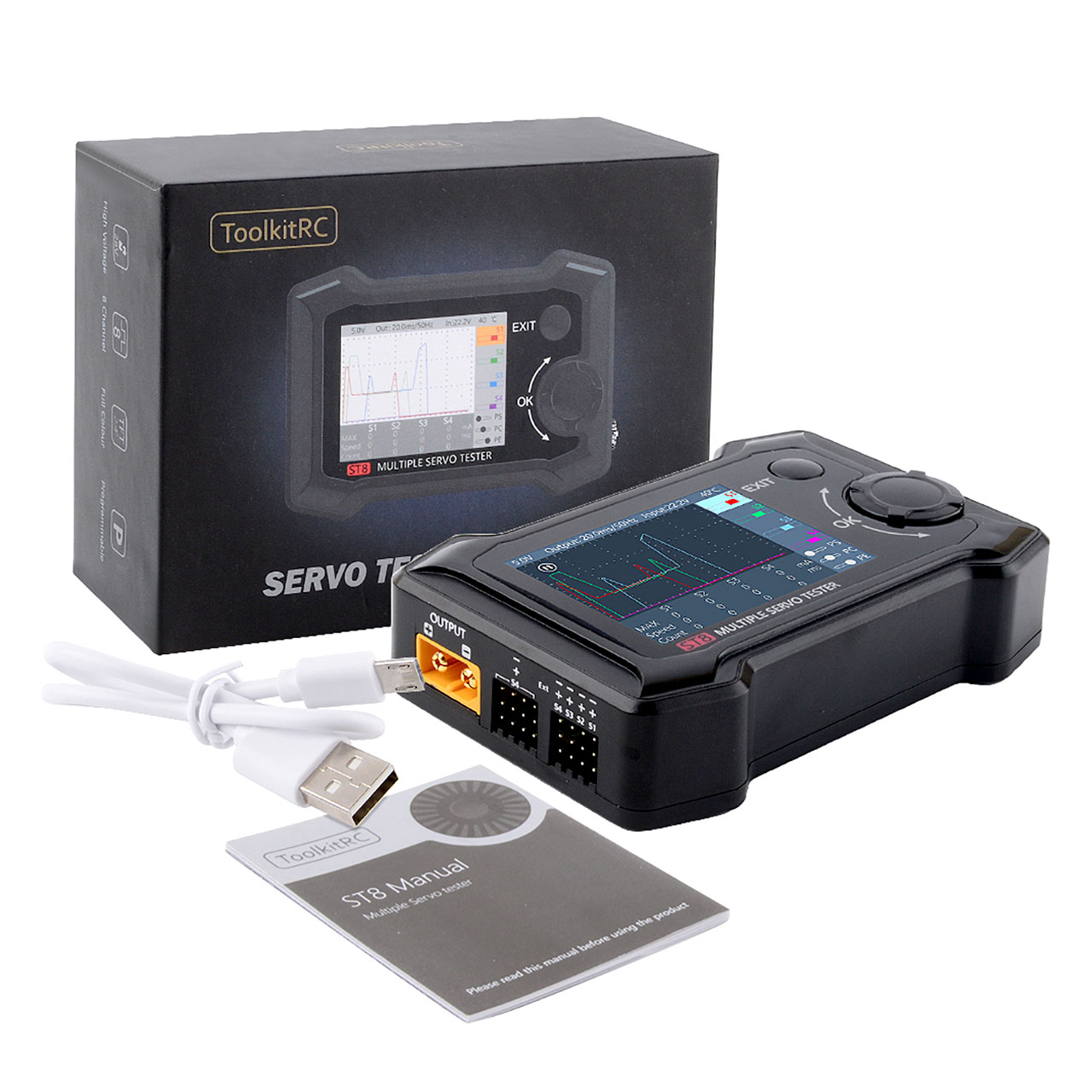

1x ST8 Servo Tester
1x Micro-USB Cable
1x Manual
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandToolkit RC
Description
Article no.: TK30500
Product information "ToolkitRC ST8 Advanced Servo Tester"
The ST8 Servo Tester visually displays the performance data of servos. It is a true multifunction device with up to 28V output voltage, 8-channel signal output, integrated current measurement, data display as a graph, and many other functions.
Features:
- 4 channels for programmable independent signals
- 8 channels as signal outputs
- A variety of measurement modes (speed, count, steps, linear)
- External input signal support for PWM, PPM, and SBUS signals
- Measurement accuracy down to the millisecond.
Technical Specifications:
| Input Voltage: | 7.0-28.0V, max. 10A |
| Main Output Port: | 5.0-28.0V, max. 10A |
| Signal Port: | 5.0V-8.4V, max. 4A/S1-S4 |
| Output Voltage: | 5.0V-8.4V, max. 4A/S4 Ext. |
| Output Signal: | 100us-2900us, 33-1000Hz, S1-S4 PWM 500us-2500us, S5 PPM 8CH, S5 SBUS 16CH, S5 |
| P1 Rotation Range: | 1000us-2000us, P1 |
| Micro-USB: | Upgrade, USB3.0 |
| Display: | LCD, 2.4'' TFT RGB 320x240px |
| Dimensions: | 99x68x26mm |
| Weight: | 120g |
Delivery:
1x ST8 Servo Tester
1x Micro-USB Cable
1x Manual
