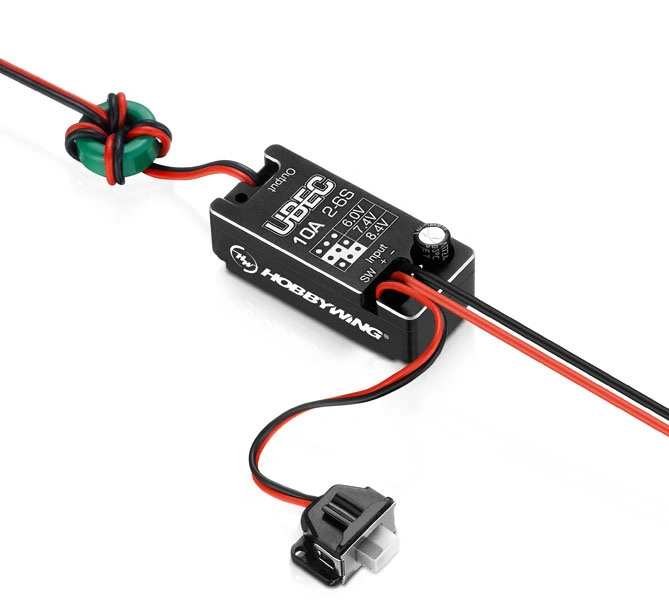

Hobbywing 30603003 UBEC 10A V2 Car

Hobbywing UBEC 10A Car 2-6S V2

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.

Features:

• High efficiency DC-DC regulator chip for transfer efficiency of over 90%
• All metal shell design helps to heat dissipation and reduce electromagnetic interference
• Adjustable UBEC output voltage (6.0V/7.4V/8.4V) applicable for servos with different voltages
• The continuous current of UBEC is up to 10A and 15A at max., which can be used for various electrical equipment (such as car light, winch, wiper, etc)
• Excellent water-proof and dust-proof design as well as the IP67 protection grade can easily deal with different complicated environments
• Multiple protections: over-current protection, output short-circuit protection, overheating protection, safe and reliable
• External switch allows to turn on/off the UBEC easily
• LED indicator for indicating the work status of the UBEC

Specifications:

• Model: UBEC 10A-Car
• Input voltage: 2-6s lithium batteries
• Output voltage: 6.0 / 7.4 / 8.4 V (3 options adjustable)
• Output current: Continuous 10A，Instantaneous 15A
• Measurement: 45x20x16.2mm
• Weight: 34g（including wires)
