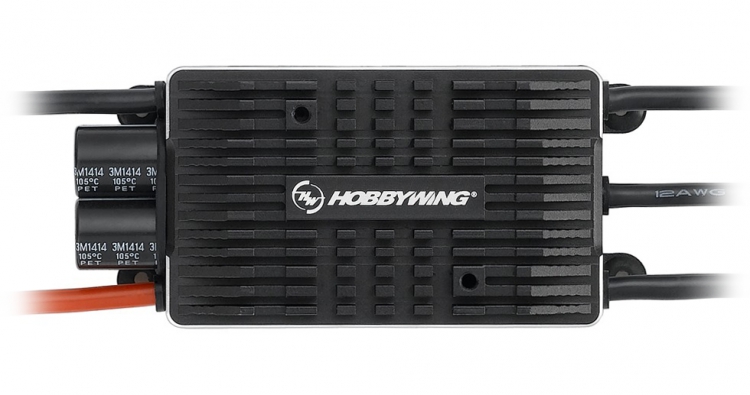

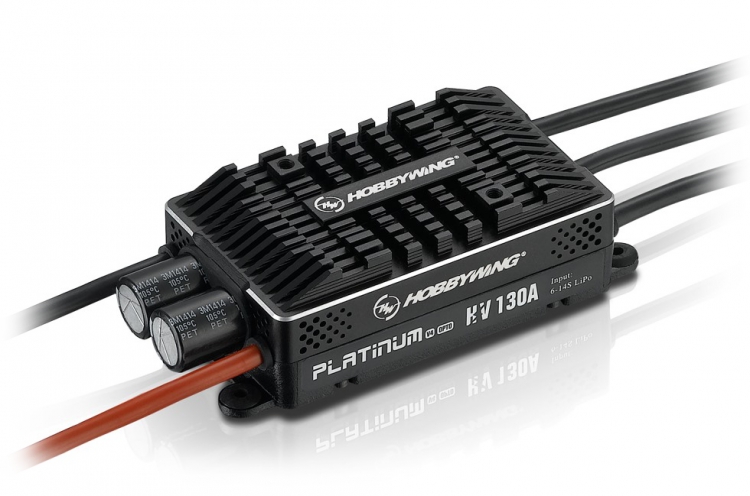

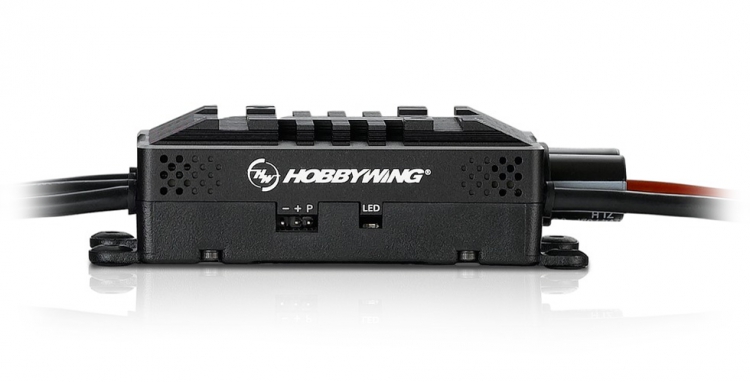

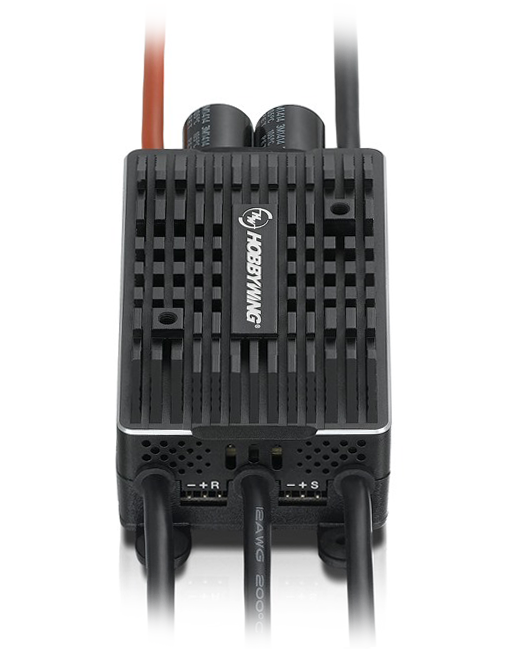

Platinum Pro 130A ESC HV OPTO 6-14S V4
2,795 SEK per pc
- Secure payment by card
- E-mail us, we reply swiftly!
- Fast Deliveries
- Open at shop and on phone between 16-20 Weekdays and 11-15 (OBSERVE New time) Weekends * call +46 (0) 303-776303
- Click on "Chat with us" and we can help you immediately!
* We can be busy, call again if we don´t answer!
- BrandHobbywing
Description
Article no.: MC_HW30209201
- High performance microprocessor for excellent motor speed-governing and super soft start-up
- Microprocessor powered by independent DC regulator has better anti-interference performance, which greatly reduces the risk of losing control
- DEO (Driving Efficiency Optimization) Technology adopted greatly improves throttle response & driving efficiency, reduces ESC temperature
- Multiple flight modes: Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), Helicopter (Store Governor)
- New governor program with adjustable governor parameter P/I brings excellent speed-governing effect, guarantees the stability of the propeller’s revs when the load changes dramatically
- Data logging records the standardized RPM, minimum voltage and maximum temperature of the flight
- "Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations
- Independent output port for RPM (that is: motor speed) signals
- Separate programming port for ESC programming or parameter setting
- WIFI module (sold separately) for programming the ESC wirelessly with your smart phone (iOS or Android)
- Online data checking, ESC programming, firmware upgrade (Multifunction LCD program box or WIFI Express is needed) supported
- Multiple protections like start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, and throttle signal loss protection
- Brushed/Brushless: Brushless
- High Voltage/Regular: High Voltage
- Continuos/Peak Current: 130A/160A
- Input Voltage: 6-14S LiPo
- BEC Output: No
- Input Wires: 12AWG/150mm
- Output Wires: 12AWG/100mm
- Input Connectors: No
- Output Connectors: No
- Transmitter: Not Supported
- LED Program Card: Not Supported
- LED Program Box: Not Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: Separate Program Port
- Firmware Upgrade: Supported
- Size: 101 x 45.5 x 27 mm
- Weight: 154 g
- 550-600 Class Heli (Main Blade: 550-690 mm)
- .90-.140 Class Fixed-wing Airplane
- 2m FAIF3A & 3D
- EDF (with Diameter ≦105mm)
Hobbywing Platinum HV 130A Opto V4 ESC
Type:
Specifications:
Wires & Connectors:
ESC Programing via:
Size & Weight:
Rec. Applications:
